Husqvarna 56 DH (H56DHF) (954065901) (1994-01) Walk Mower

Model: 56 DH (H56DHF) (954065901) (1994-01)

Save Part Not Listed?
product name

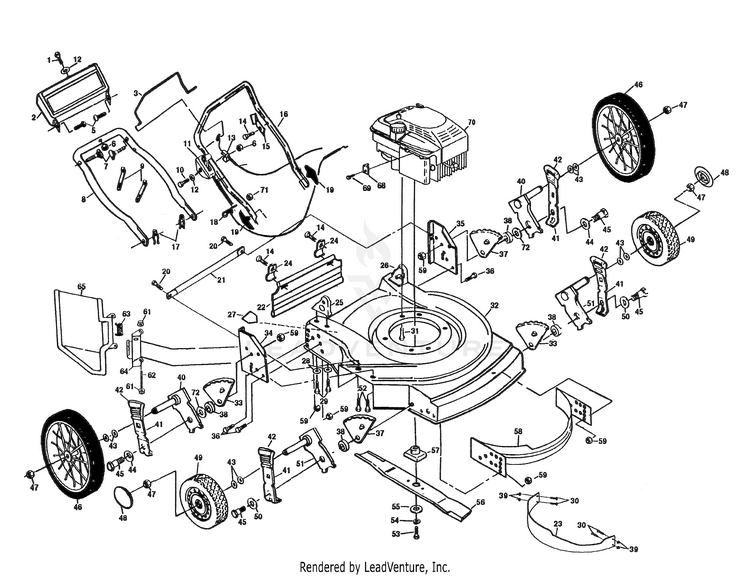

General Assembly

...
...
1
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
2
TRIM PLATE HUS-532800547
...
3
CONTROL BAR/BLACK HUS-532850735
...
5
SCREW HUS-532036953
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
8
HANDLE.LOWER.BLACK HUS-532157081
...
9
WIRE TIE HUS-532007192
...
10
MACHINE SCREW 1/4-20X2-1/4 HUS-532086055
...
11
THROTTLE CONTROL HUS-532700417
...
12
WASHER PM HUS-532085723
...
13
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
14
SCREW HUS-817021008
...
15
BRACKET.UPSTOP HUS-532850733
...
16
UPPER HANDLE HUS-532166268
...
17
HAIRPIN COTTER HUS-532051793
...
18
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
19
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
20
SCREW HUS-532054583
...
21
SUPPORT ROD HUS-532107611
...
22
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
23
MULCH BAFFLE HUS-532700930
...
24
BRACKET.SKIRT.BZP HUS-532192301
...
25
KIT HANDLE BRACKET LH/RH HUS-532192983
...
26
KIT HANDLE BRACKET LH/RH HUS-532192983
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
28
STEEL WASHER HUS-532059289
...
29
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
30
Machine Screw HUS-874961008
...
31
BOLT 3/8-16X1-1/8 HUS-532150406
...
32
MOWER HOUSING (Includes Key No. 27 & 58) HUS-532700693
...
33
WHL ADJ BRKT LF/RR HUS-532800368
...
34
WHEEL SUPPORT BRACKET (RIGHT) HUS-532125322
...
35
WHEEL SUPPORT BRACKET (LEFT) HUS-532125321
...
36
BOLT HUS-874760612
...
37
BRACKET WHL ADJ HUS-532140058
...
38
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
39
LOCKNUT HUS-532069180
...
40
AXLE ARM HUS-532751333
...
41
SELECTOR SPRING HUS-532125066
...
42
SELECTOR KNOB HUS-532701037
...
43
KIT.O-RING/WASHER HUS-532428450
...
44
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
45
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
46
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
47
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
48
HUB CAP HUS-532850845
...
49
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
50
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
51
AXLE ARM ASSY HUS-532800754
...
52
SCREW 1/4X20 HUS-817600406
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
54
Washers HUS-596238701
...
55
WASHER,HARDEN HUS-532851074
...
56
22" BLADE HUS-204335256
...
57
ADAPTOR.BLADE.7/8 HUS-581547901
...
58
BAFFLE HUS-532700929
...
59
Nuts HUS-596322601
...
61
PUSH-ON SPEED NUT HUS-532083731
...
62
ROD.HINGE.COMBI-C HUS-532147286
...
63
SPRING.SIDE.DISCHARGE HUS-532411832
...
64
BRACKET.HINGE ASM.W/FIN HUS-532147775
...
65
DISCHARGE GUARD HUS-532134253
...
68
WASHER.ENGINE.BZP Must be purchased through an authorized Briggs & Stratton dealer. HUS-532125078
...
69
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
71
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
72
WASHER.FLAT.1/2 HUS-532088348
...
xx
Owner's Manual (English/French) HUS-532142043
...
xx
ENG DECAL NLA HUS-532800569
...
xx
DECAL (HOUSING) NLA HUS-532131842
...
xx
DECAL,TRIMPLATE HUS-532850788
