product name

Husqvarna 55R21 HV - 96143000500 (2005-01) Walk Behind Mower

Model: 55R21 HV - 96143000500 (2005-01)

Save Part Not Listed?
product name

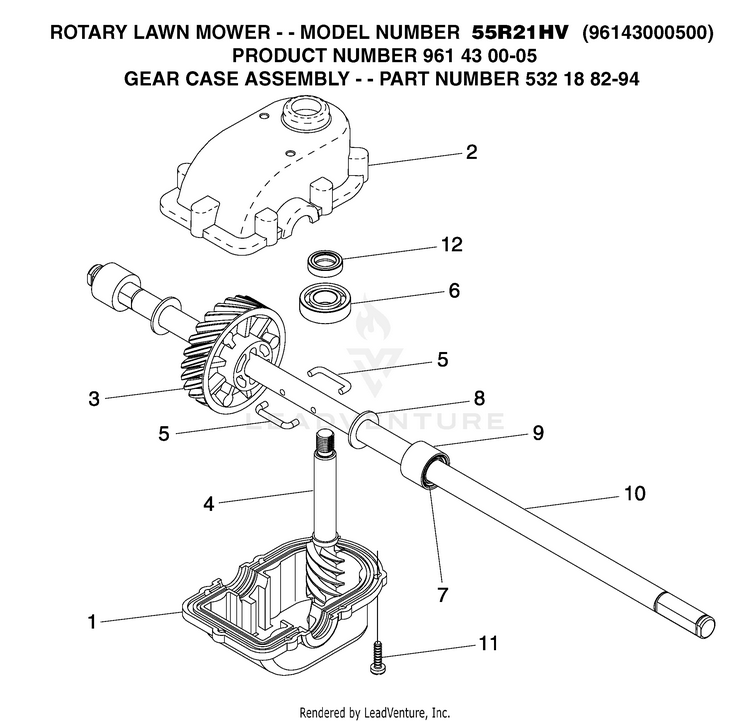

GEAR CASE

...
...
- -
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
6
BEARING HUS-532183506
...
5
WIRE, FORMED (15966) HUS-532183505
...
9
BUSHING HUS-532183511
...
7
SEAL.OUTPUT.SHAFT HUS-532183508
...
4
WORM GEAR HUS-532191246
...
11
SCREW HUS-532183513
...
12
SEAL INPUT SHAFT HUS-532183514
...
3
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
8
WASHER HUS-532183509
...
2
GEARCASE.HOUSING HUS-532191245
...
1
CASE, LOWER HUS-532187530
...
10
SHAFT OUTPUT HUS-532191247

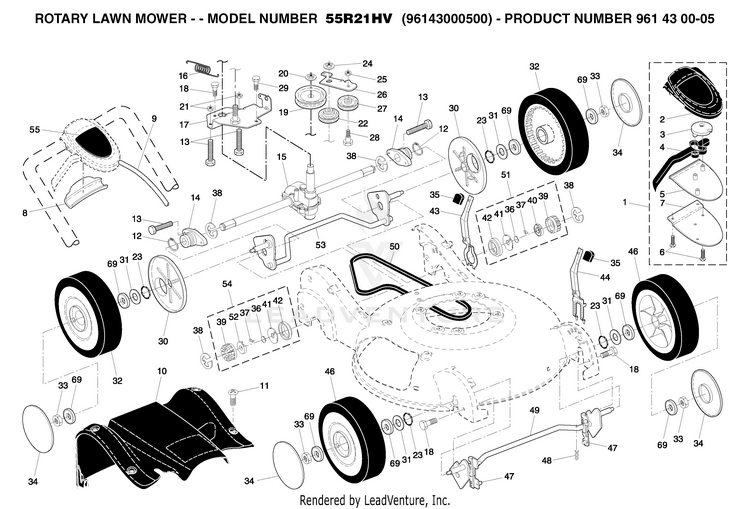

REPAIR PARTS

...
...
38
E-RING 7/16 RE HUS-812000058
...
39
GEAR, PINION HUS-532175103
...
35
KNOB.SELECTOR.SPRG.H-GRY (2 2) HUS-532185994
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
44
SPRING.SELECTOR.FRONT HUS-532188509
...
20
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
48
SPRING RETAINER HUS-532169675
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
36
SPRING, TORSION HUS-532188291
...
14
BEARING.SUPPORT.ASSEM HUS-532187120
...
2
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
21
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
18
SCREW HUS-532163409
...
69
BEARING.8".WHEEL HUS-532751068
...
10
RP.COVER.DRIVE.REAR.21.HV.GRAY HUS-532188356
...
30
DUST COVER, WHEEL HUS-532183457
...
11
SCREW HUS-532194188
...
17
BRACKET.TRANSMISSION.HV.EZWALK HUS-532194438
...
16
SPRING.RETURN HUS-532194124
...
46
WHEEL.9X2.25.LP.TIGER.BLK HUS-532192232
...
50
BELT.DRIVE.EZ.WALK.HI-VAC HUS-532183688
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
5
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
9
DRIVE CONTROL CABLE HUS-532196577
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
51
KIT.PINION.ASM HUS-532414860
...
13
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
12
RING.RETAINING. HUS-583607301
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
8
EZ WALK SNAP COVER PLATE HUS-532186297
...
27
IDLER PULLEY HUS-532166043
...
22
PULLEY.IDLER.V-BELT HUS-532193791
...
40
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
1
CONTROL.DR.HV.RWGD.GRY/BLU HUS-532197012
...
28
SHOULDER BOLT HUS-532160829
...
31
WASHER.FLAT.1/2 HUS-532088348
...
52
RETAINER, DRIVE, RH HUS-532175102
...
45
SCREW HUS-532163409
...
49
SHAFT.ASM.FRONT.TORQUE HUS-532192431
...
42
SEAL.PINION HUS-532184172
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
19
PULLEY HUS-532194128
...
26
ARM.IDLER.BZP HUS-532194123
...
54
KIT.PINION.ASM HUS-532414860
...
37
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
4
LEVER.BLACK HUS-532425662
...
41
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
53
AXLE.ASM.REAR.TORQUE.BZP HUS-532192138
...
47
BUSHING.FRONT.TORQUE.SHAFT HUS-532183438
...
15
TRANSMISSION.21.HI-VAC.EZ HUS-532188294

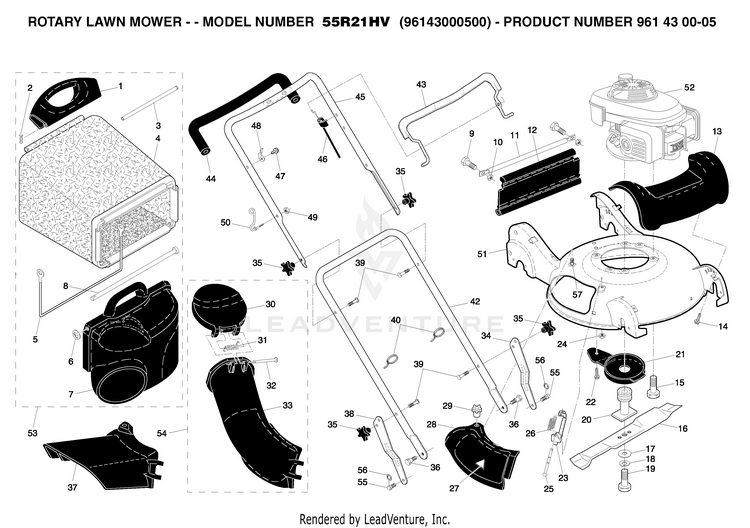

REPAIR PARTS 2

...
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
46
CABLE.MZR.ZONE.CONTROL HUS-532424983
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
29
KNOB.MULCH.DOOR HUS-532183447
...
16
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
56
E-RING 7/16 RE HUS-812000058
...
17
WASHER,HARDEN HUS-532851074
...
28
DOOR.MULCH HUS-532188507
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
- -
WARNING DECAL HUS-530402152
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
31
SPRING HUS-532183478
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
40
WIRE TIE HUS-532007192
...
47
SCREW HUS-532750634
...
9
BOLT T HUS-872140405
...
30
CHUTE.DOOR.21.HV.H-GRAY HUS-532190580
...
38
BRACKET.ADJ.LOWER.HDL.RT.GREY HUS-532190621
...
8
ROD, PIVOT HUS-532183479
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
14
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
6
E-RING HUS-812000014
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
26
SPRING.MULCH.DOOR HUS-532183446
...
18
Washers HUS-596238701
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
32
ROD.HINGE.1/4"3.82" HUS-532183445
...
19
SCREW.HX.HEAD.3/8-24 HUS-532183431
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
43
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
53
GBAG.ASM.HB.GRY.GENERIC.SERVIC HUS-532431754
...
22
SCREW 1/4X20 HUS-817600406
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
54
CHUTE.LOWER.ASM.WALK.MOWER HUS-532189014
...
25
ROD.HINGE.1/4"3.82" HUS-532183445
...
44
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
55
STUD.SHOULDER.T45.BZP HUS-532194192
...
13
COVER.FRONT.21.HI-VAC.BLK HUS-586531501
...
35
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
42
HANDLE.LOWER.GREY HUS-532187096
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
FRAME, GRASSBAG HUS-532188506
...
23
BRACKET.ASM.HINGE HUS-532183609
...
12
SKIRT.REAR.21".HI-VAC.BLACK HUS-532190815
...
4
GBAG.5323247.SILVER.HUSQ HUS-532194736
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
57
STUD.INSERT HUS-532188634
