Husqvarna 55C21HVA/954223890 (2005) Walk Behind Rotary Mower

Model: 55C21HVA/954223890 (2005)

Save Part Not Listed?
product name

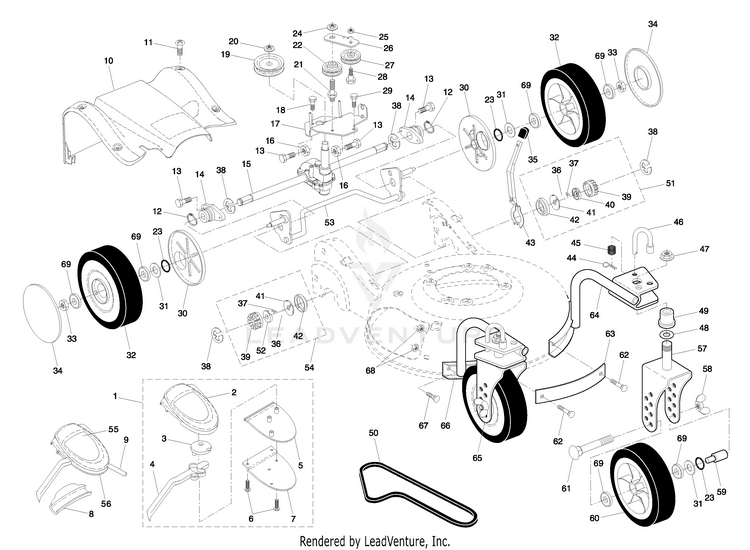

Drive Assembly

...
...
1
DRIVE CONTROL CABLE (Consists of Key Numbers 2 through 7 HUS-532196577
...
2
DRIVE CONTROL COVER HUS-532197168
...
3
Pulley, Drive Control HUS-532187353
...
4
LEVER.BLACK HUS-532425662
...
5
DRIVE CONTROL COVER HUS-532197168
...
6
Screw, Torx Head #8-5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT HUS-532400723
...
8
Cap, Drive Control, Bottom HUS-532186297
...
9
DRIVE CONTROL CABLE HUS-532196577
...
10
COVER.DRIVE.REAR.21.HV.GRAY HUS-532416963
...
11
SCREW HUS-532194188
...
12
Ring, Retaining HUS-812000012
...
13
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
14
Bearing / Axle Support HUS-532187120
...
15
KIT.TRANSMISION.REPLACE.183699 (See Breakdown) HUS-532414975
...
16
NUT.1/4C.NYLOC HUS-539976978
...
17
BRACKET, GEAR CASE / DRIVE HUS-532408005
...
18
Screw HUS-817541011
...
19
Pulley, Drive HUS-532194128
...
20
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409148
...
21
Bolt, Idler HUS-532188611
...
22
KIT.PULLEY.IDLER. HUS-532195326
...
23
O-Ring HUS-532197480
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
25
Nut, Hex, Lock HUS-873930500
...
26
KIT.PULLEY.IDLER.HI-VAC. HUS-532195327
...
27
Pulley, Idler HUS-532166043
...
28
Bolt, Hex Head, Shoulder HUS-532160829
...
29
Screw 1/4-20 x 1/16 HUS-817060410
...
30
Cover, Dust, Wheel HUS-532183457
...
31
Washer, Flat 3/8 HUS-532088348
...
32
Wheel Assembly, Rear 9 x 2-1/4 HUS-532192622
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409148
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
35
Knob HUS-532185994
...
36
Spring, Torsion HUS-532188291
...
37
Pawl HUS-532175098
...
38
E-Ring HUS-812000058
...
39
Gear HUS-532175103
...
40
Retainer, Drive, LH HUS-532175105
...
41
Disc, Drive HUS-532175104
...
42
Seal, Friction HUS-532184172
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
44
Hairpin HUS-532065322
...
45
Spring HUS-532185051
...
46
Rod, Lock HUS-532185054
...
47
Nut, Hex, Flangelock HUS-532187247
...
48
Washer, Flat 1/2 HUS-532188906
...
49
BUSHING. HUS-532195996
...
50
Belt, Drive HUS-532183688
...
51
KIT PINION ASM HUS-532414860
...
52
Retainer, Drive, RH HUS-532175102
...
53
AXLE.ASM.REAR.TORQUE.BZP HUS-532192138
...
54
KIT PINION ASM HUS-532414860
...
55
Decal, Drive Control HUS-532189074
...
56
Decal, Drive Control Adjustment (bottom) HUS-532185913
...
57
BRACKET, CASTER WHEEL LH HUS-532188661
...
58
Wing Nut 5/16-18 HUS-532187248
...
59
Spacer HUS-532185111
...
60
WHEEL.9X2.25.LP.TIGER.SILVER HUS-532192234
...
61
Bolt, Carriage 5/16-18 x 3-1/2 HUS-872270528
...
62
Bolt, Carriage 5/16-18 x 7/8 HUS-532187474
...
63
Strap, Front HUS-532188475
...
64
SUPPORT.TUBE.ASM.LT HUS-532414070
...
65
BRACKET, CASTER WHEEL RH NLA HUS-532188662
...
66
SUPPORT.TUBE.ASM.RT HUS-532414069
...
67
Bolt, Carriage 5/16-18 x 5/8 HUS-532187555
...
68
NUT.5/16C.NYLOC HUS-539990717
...
69
Bearing, Ball (Wheel) HUS-532751068

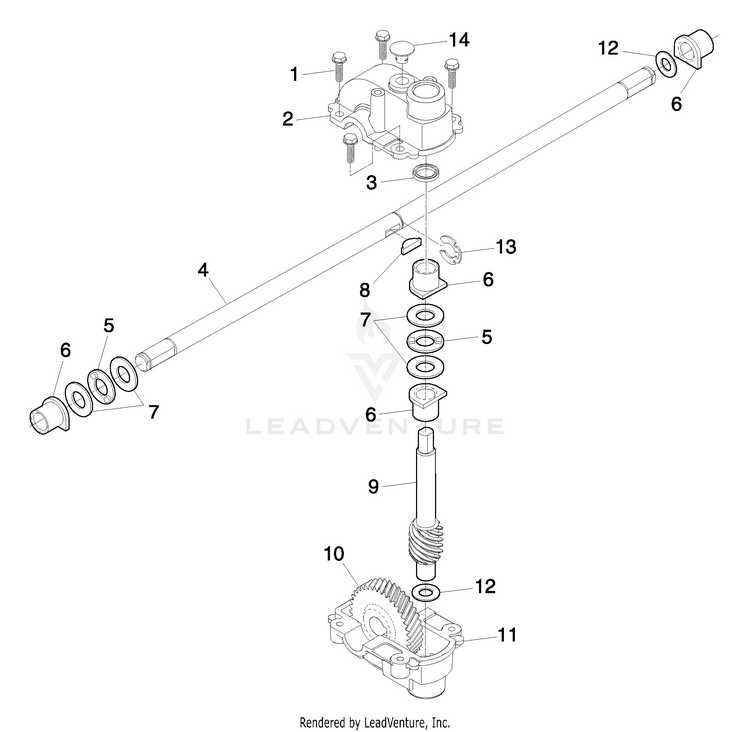

Gear Case Assembly (532183699)

...
...
1
Screw, Tapping #10-24 x .668 HUS-817541011
...
2
Gear Case, Upper HUS-532160672
...
3
Seal HUS-532057072
...
4
Drive Shaft HUS-532183908
...
5
Bearing, Needle, Thrust HUS-532160818
...
6
Bearing HUS-532077881
...
7
Washer, Thrust HUS-532160817
...
8
Key, Hi-pro HUS-532850848
...
9
Shaft, Worm HUS-532184134
...
10
Gear, Helical HUS-532160679
...
11
KIT.GEARCASE.HALVES.RWGD.21" HUS-532160676
...
12
Washer, Hardened HUS-532057079
...
13
E-Ring HUS-812000039
...
14
Plug HUS-532086447
...
xx
Grease, Plastilub Number 1 HUS-532006066
...
xx
KIT.TRANSMISION.REPLACE.183699 (Includes Grease) HUS-532414975
...
xx
KIT.TRANSMISION.REPLACE.183699 HUS-532414975

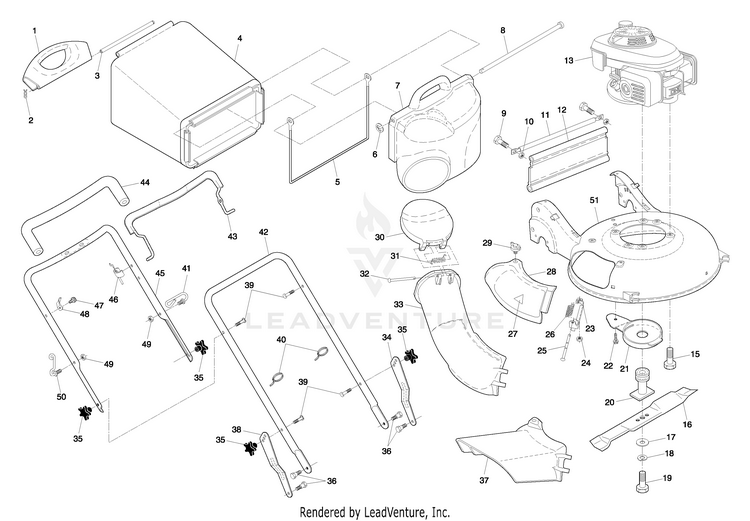

Handle & Deck Assembly

...
...
1
Handle, Grassbag, Rear HUS-532190582
...
2
Hairpin Cotter HUS-532065322
...
3
Rod, Rear Handle, Grassbag HUS-532183483
...
4
GBAG.52510010.BLK.GEN.SERVIC HUS-532410670
...
5
Frame, Grassbag HUS-532188506
...
6
E-Ring HUS-812000014
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
8
Rod, Pivot HUS-532183479
...
xx
GBAG.ASM.HB.GRY.GENERIC.SERVIC (Consists of Key Numbers 1-8) HUS-532431754
...
9
Screw HUS-872140405
...
10
NUT.1/4C.NYLOC HUS-539976978
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
12
SKIRT.REAR.21".HI-VAC.BLACK HUS-532190815
...
15
Bolt, Engine Mounting HUS-532150406
...
16
Blade, 21" HUS-532159267
...
17
Washer, Hardened HUS-532851074
...
18
WASHER.3/8 HUS-539990118
...
19
Screw, Hex Head, Grade 8 HUS-532183431
...
20
Adapter, Blade HUS-532186766
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
22
Screw, Hex Head, Serrated HUS-817600406
...
23
Mounting Bracket, Mulcher Door HUS-532183609
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
25
Rod, Hinge HUS-532183445
...
26
Spring, Mulcher Door HUS-532183446
...
27
Decal, Danger HUS-532107339
...
28
DOOR.MULCH.GRAY HUS-532188507
...
29
Knob HUS-532183447
...
30
Door, Discharge Chute HUS-532190580
...
31
Spring, Door, Discharge Chute HUS-532183478
...
32
Rod, Door, Discharge Chute HUS-532183445
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
33
Discharge Chute Assembly, Complete (Consists of Key Numbers 30-33) HUS-532189014
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
35
Knob, Star HUS-532185588
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
37
Deflector, Discharge HUS-532185996
...
38
BRACKET ADJ LOWER HNDLE RH HUS-532187064
...
39
Bolt, Handle 5/16-18 x 1.75 HUS-532191574
...
40
WIRE TIE HUS-532007192
...
41
Bracket, Anti-Fold HUS-532187162
...
42
HANDLE.LOWER HUS-532183464
...
43
BAIL.CONROL.MZR.ORANGE HUS-532426812
...
44
Grip, Foam HUS-532182748
...
45
Handle Assembly, Upper (Includes Foam Grip) HUS-532186296
...
46
Cable, Engine Zone Control HUS-532164322
...
47
Screw HUS-532184570
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
49
Nut, Hex HUS-532184569
...
50
Rope Guide HUS-532188501
...
51
Kit, Housing HUS-532190575
...
xx
WARNING DECAL (not shown) HUS-530402152
...
xx
Owner's Manual HUS-532189291
