Husqvarna 55C21 HV - 954223890 (2003-12) Walk Behind Mower

Model: 55C21 HV - 954223890 (2003-12)

Save Part Not Listed?
product name

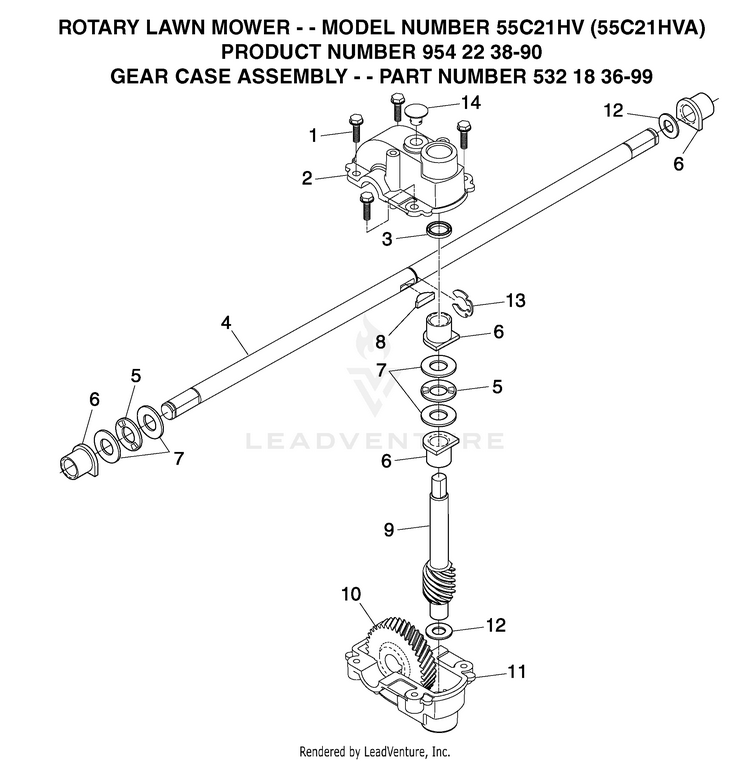

GEAR CASE

...
...
14
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
9
SHAFT.WORM.HI-VAC HUS-532184134
...
6
BEARING HUS-532077881
...
3
SEAL HUS-532057072
...
2
GEAR CASE, UPPER HUS-532160672
...
5
BEARING, NEEDLE, THRUST HUS-532160818
...
1
Screw, Hex Washer Head #10-24 x .668 HUS-817541011
...
13
KLIP RING HUS-812000039
...
11
KIT.GEARCASE.HALVES.RWGD.21" HUS-532160676
...
12
THRUST WASHER HUS-532057079
...
8
HI PRO KEY HUS-532850848
...
- -
KIT.TRANSMISION.REPLACE.183699 HUS-532414975
...
7
WASHER, THRUST HUS-532160817
...
- -
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
10
GEAR, HELICAL HUS-532160679
...
4
SHAFT.DRIVE.HI-VAC.EZ HUS-532183908

REPAIR PARTS

...
...
14
BEARING.SUPPORT.ASSEM HUS-532187120
...
50
BELT.DRIVE.EZ.WALK.HI-VAC HUS-532183688
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
42
SEAL.PINION HUS-532184172
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
66
SUPPORT.TUBE.ASM.RT HUS-532414069
...
2
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
11
SCREW HUS-532194188
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
62
BOLT HUS-532187474
...
19
PULLEY HUS-532194128
...
41
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
15
KIT.TRANSMISION.REPLACE.183699 HUS-532414975
...
45
SPRING HUS-532185051
...
53
REAR AXLE ASSY. HUS-532183698
...
64
SUPPORT.TUBE.ASM.LT HUS-532414070
...
13
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
63
STRAP.FRONT.CASTER.ORANGE HUS-532188475
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
51
KIT.PINION.ASM HUS-532414860
...
20
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
17
BRACKET, GEAR CASE / DRIVE HUS-532408005
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
22
KIT.PULLEY.IDLER. HUS-532195326
...
9
DRIVE CONTROL CABLE HUS-532196577
...
21
BOLT, IDLER HUS-532188611
...
30
DUST COVER, WHEEL HUS-532183457
...
39
GEAR, PINION HUS-532175103
...
1
DRIVE CONTROL CABLE HUS-532196577
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
69
BEARING.8".WHEEL HUS-532751068
...
36
SPRING, TORSION HUS-532188291
...
52
RETAINER, DRIVE, RH HUS-532175102
...
65
BRACKET, CASTER WHEEL RH NLA HUS-532188662
...
4
LEVER.BLACK HUS-532425662
...
37
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
46
ROD, LOCK HUS-532185054
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
28
SHOULDER BOLT HUS-532160829
...
18
Screw, Hex Washer Head #10-24 x .668 HUS-817541011
...
47
NUT HUS-532187247
...
26
KIT.PULLEY.IDLER.HI-VAC. HUS-532195327
...
12
RING.RETAINING. HUS-583607301
...
61
CARRIAGE BOLT HUS-872270528
...
59
SPACER HUS-532185111
...
31
WASHER.FLAT.1/2 HUS-532088348
...
40
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
44
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
27
IDLER PULLEY HUS-532166043
...
35
KNOB.SELECTOR.SPRG.H-GRY (2 2) HUS-532185994
...
68
Nuts HUS-596583702
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
54
KIT.PINION.ASM HUS-532414860
...
48
WASHER.FLAT.1/2 HUS-532188906
...
57
BRACKET, CASTER WHEEL LH HUS-532188661
...
58
NUT.WING.5/16-18.YELLOW HUS-532187248
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
10
RP.COVER.DRIVE.REAR.21.HV.GRAY HUS-532188356
...
67
BOLT HUS-532187555
...
38
E-RING 7/16 RE HUS-812000058
...
5
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
8
EZ WALK SNAP COVER PLATE HUS-532186297

REPAIR PARTS 2

...
...
49
HEX NUT HUS-532184569
...
8
ROD, PIVOT HUS-532183479
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
12
SKIRT, REAR HUS-532188503
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
5
FRAME, GRASSBAG HUS-532188506
...
28
DOOR.MULCH HUS-532188507
...
23
BRACKET.ASM.HINGE HUS-532183609
...
42
HANDLE.LOWER.GREY HUS-532187096
...
43
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
35
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
16
21" MULCH BLADE PREMIUM HUS-532159267
...
30
CHUTE.DOOR.21.HV.H-GRAY HUS-532190580
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
32
ROD.HINGE.1/4"3.82" HUS-532183445
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
- -
CHUTE.LOWER.ASM.WALK.MOWER HUS-532189014
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
- -
WARNING DECAL HUS-530402152
...
19
SCREW.HX.HEAD.3/8-24 HUS-532183431
...
17
WASHER,HARDEN HUS-532851074
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
9
BOLT T HUS-872140405
...
40
WIRE TIE HUS-532007192
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
47
SCREW HUS-532184570
...
4
GBAG.52510010.BLK.GEN.SERVIC HUS-532410670
...
29
KNOB.MULCH.DOOR HUS-532183447
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
18
Washers HUS-596238701
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
44
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
31
SPRING HUS-532183478
...
46
CABLE.MZR.ZONE.CONTROL HUS-532424983
...
22
SCREW 1/4X20 HUS-817600406
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
6
E-RING HUS-812000014
...
25
ROD.HINGE.1/4"3.82" HUS-532183445
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
26
SPRING.MULCH.DOOR HUS-532183446
