Husqvarna 555 Chain Saw

Model: 555

Back To Assemblies

Save Part Not Listed?
product name

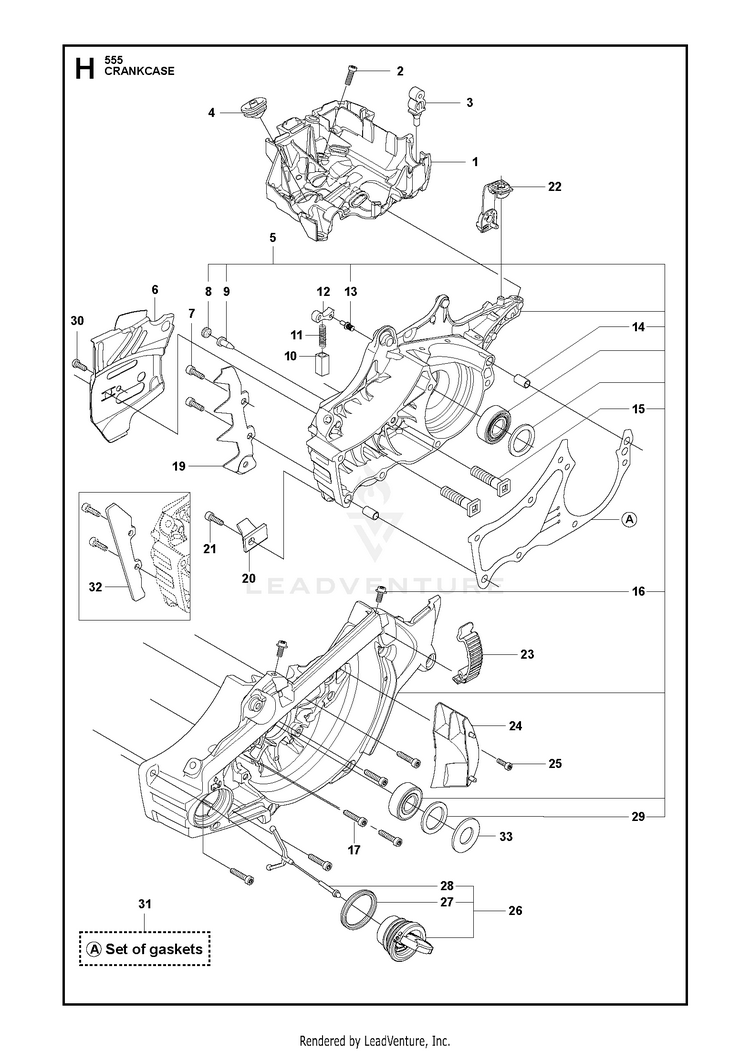

CRANKCASE

...
...
19
SPIKES HUS-577935201
...
25
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
4
GROMMET HUS-581559201
...
6
CHAIN GUIDE PLATE HUS-505201101
...
3
DAMPNER HUS-597909701
...
12
CATCH HUS-505201201
...
27
SEALING HUS-589241101
...
24
AIR NOZZLE HUS-588065501
...
5
CRANKCASE ASSEMBLY SP H55 HUS-575380224
...
7
SCREW ITXPANM M5X16 T27 10.9 HUS-575793501
...
10
GUIDE HUS-537210701
...
8
SINTERED BRONZE FILTER HUS-537403502
...
2
SCREW ITXSCFM HUS-525755202
...
1
Carburetor base HUS-588193901
...
13
PIN HUS-503751801
...
23
CLIP GRAY GREY HUS-503894703
...
30
SCREW HUS-503212813
...
15
BAR BOLT HUS-505217301
...
31
GASKET KIT A=set of gaskets HUS-575270003
...
9
VALVE-CHECK (DUCKBILL) HUS-530026119
...
20
CHAIN CATCHER HUS-537377902
...
29
RADIAL SEAL - up to s/n 20202399999 HUS-525391201
...
33
CAPS s/n from 20202400001 - HUS-596911301
...
21
SCREW HUS-525798103
...
17
SCREW ITXSCM M5X25 12.9 TBO T HUS-575841104
...
14
GUIDE BUSHING HUS-593806001
...
32
BUMPER HUS-525347601
...
11
LOCK SPRING HUS-503436501
...
16
SCREW ITXSCM WASHER M5X12 T27 HUS-525824401
...
28
TANK LOCK HUS-503578901
...
26
TANK CAP ASSY HUS-522620003
...
22
DEFLECTION LIMITER HUS-505125801
