product name

Husqvarna 555 Chain Saw

Model: 555

Back To Assemblies

Save Part Not Listed?
product name

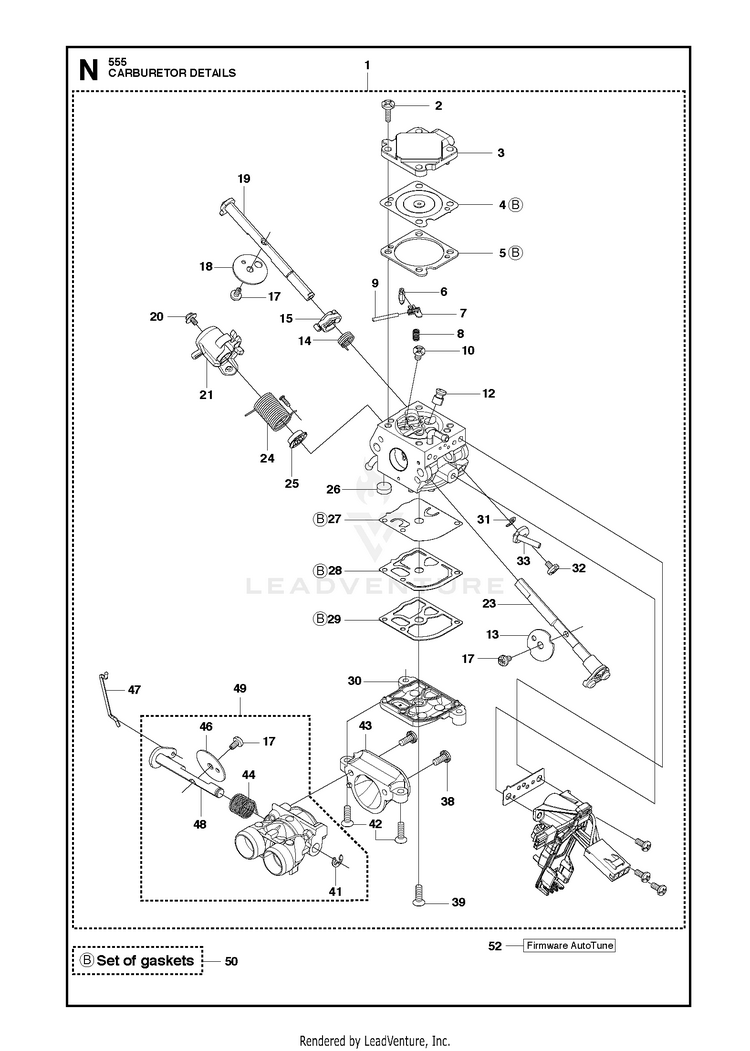

CARBURETOR DETAILS

...
...
1
CARBURETOR KIT 555 AUTOTUNE s/n up to - 20121499999 (ZAMA EL44) HUS-579194101
...
26
STRAINER HUS-503535701
...
44
SPRING HUS-522518601
...
33
CHOKE LEVER HUS-522517601
...
7
LEVER HUS-503665901
...
50
KIT GASKET AND DIAPHRAM B=set of gaskets HUS-522518901
...
5
GASKET HUS-522517501
...
49
THROTTLE VALVE ASSY HUS-578227801
...
20
SCREW HUS-502078401
...
4
DIAPHRAGM HUS-522517401
...
19
SHAFT ASSY HUS-522518301
...
2
SCREW HUS-522545101
...
41
CLIP HUS-537385201
...
42
SCREW HUS-522518001
...
23
THROTTLE SHAFT HUS-522518501
...
21
THROTTLE LEVER HUS-522517801
...
14
SPRING HUS-522518701
...
13
VALVE s/n up to - 20121401172 (ZAMA EL44) HUS-523077201
...
25
COLLAR HUS-502079801
...
47
ROD HUS-522517901
...
9
PIN HUS-537020801
...
12
MAIN NOZZLE HUS-576414201
...
6
INLET NEEDLE HUS-503479701
...
43
INLET HUS-575544401
...
13
THROTTLE VALVE s/n 20121401173 - 20142499999 (ZAMA EL47) HUS-579059101
...
27
PUMP DIAPHRAGM HUS-537383101
...
3
COVER HUS-522517201
...
8
SPRING HUS-537383401
...
13
THROTTLE VALVE s/n 20142500001 - (ZAMAEL49/140056A) HUS-583974901
...
1
CARBURETTOR KIT 555 / CS2258 ZAMA140059A HUS-501463308
...
10
SCREW HUS-503480101
...
30
COVER HUS-575544301
...
29
GASKET HUS-537020101
...
15
LEVER HUS-522517701
...
38
SCREW HUS-506396601
...
46
THROTTLE FLAP HUS-537177001
...
24
SPRING HUS-502078701
...
39
SCREW HUS-522518101
...
31
E RING HUS-504026701
...
28
DIAPHRAGM HUS-537403301
...
48
SHAFT ASSY HUS-522518201
...
18
CHOKE VALVE HUS-504627701
...
32
SCREW HUS-503479001
...
17
SCREW HUS-503481801
