Husqvarna 555 Chain Saw

Model: 555

Back To Assemblies

Save Part Not Listed?
product name

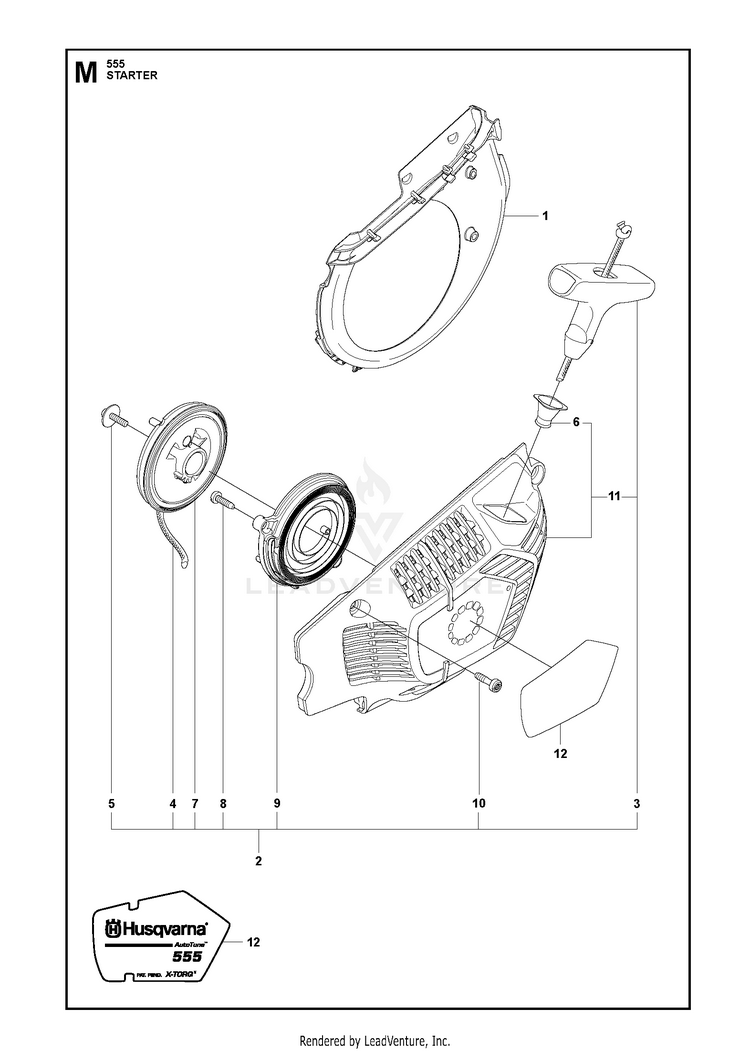

STARTER

...
...
9
SPRING CASSETTE ASSEMBLY HUS-598750302
...
12
LABEL HUS-523035601
...
11
STARTER HOUSING HUS-505159102
...
8
SCREW HUS-503212813
...
7
STARTER PULLEY ASSY HUS-505158101
...
1
COOLING AIR CONDUCTOR HUS-505157501
...
4
STARTER ROPE HUS-505305125
...
3
HANDLE HUS-537232501
...
6
SLEEVE HUS-537283201
...
5
SCREW ITXSCT MT5X16 10.9 TBO HUS-576356601
...
10
SCREW CITXPANMO HUS-525824501
...
2
STARTER ASSEMBLY HUS-505159209
