product name

Husqvarna 555 Chain Saw

Model: 555

Back To Assemblies

Save Part Not Listed?
product name

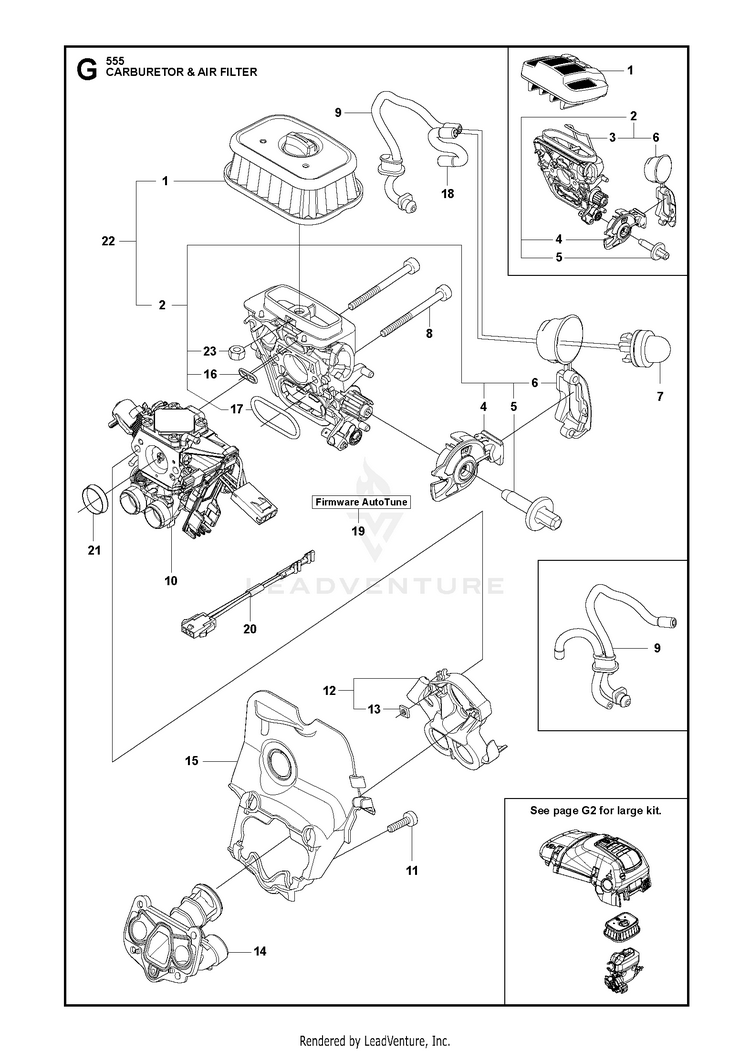

CARBURETOR & AIR FILTER

...
...
9
FUEL HOSE s/n from 20154500385 HUS-587645404
...
1
AIR FILTER ASSY FELT White s/n up to - 20202699999 HUS-505126306
...
1
AIR FILTER NYLON 80 µm Black s/n up to - 20202699999 HUS-505126304
...
12
FLANGE CARBURETTOR FLANGE HUS-505165202
...
18
FUEL HOSE HUS-523056801
...
20
WIRING ASSY s/n from 20121500001 - HUS-577536401
...
1
AIR FILTER ASSY MESH 64 MICRON NYLON 64 µm Black s/n from 20202700001 - HUS-590458801
...
22
FILTERS HUS-598934501
...
9
FUEL HOSE PURGE/TANKVENTILATIO s/n from 20173800688 HUS-525344303
...
2
HOLDERS s/n from 20202700001 - HUS-597275501
...
7
AIR PURGE BUBBLE HUS-503936601
...
2
FILTER HOLDER ASSY s/n up to - 20202699999 HUS-525397905
...
10
CARBURETOR KIT 555 AUTOTUNE s/n up to - 20121499999 (ZAMA EL44) HUS-579194101
...
23
NUT s/n from 20202700001 - HUS-731231401
...
6
SEALING HUS-525588101
...
14
INLET PIPE HUS-583964103
...
21
SUPPORT SLEEVE HUS-582025101
...
15
INTERMEDIATE WALL HUS-520290901
...
1
AIR FILTER ASSY MESH 25 MICRON NYLON 25 µm Yellow s/n from 20202700001 - HUS-590458802
...
1
AIR FILTER ASSY NYLON 25 µm Orange s/n up to - 20202699999 HUS-505126307
...
1
AIR FILTER ASSY MESH NW Non Woven Nature s/n from 20202700001 - HUS-590458803
...
5
SCREW HUS-505156201
...
4
CHOKE CONTROL ASSY CHOKE/STOP HUS-510017202
...
14
INLET PIPE COLD RESISTANT Cold resistant HUS-583964104
...
1
AIR FILTER ASSY NYLON 44 µm Yellow s/n up to - 20202699999 HUS-505126307
...
16
SEALING HUS-525619201
...
10
CARBURETTOR KIT 555 / CS2258 ZAMA140059A HUS-501463308
...
17
SEALING HUS-525619001
...
13
NUT HUS-503226503
...
8
SCREW ITXSCM HUS-574353503
...
9
VENTILATING HOSE,KIT s/n up to - 20154500384 HUS-589357101
...
11
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
3
SHACKLE s/n up to - 20202699999 HUS-505176901
...
19
NEEDS DESCRIPTION Download from your local supportsite HUS-.
