Husqvarna 5521 RS - 96143000200 (2005-03) Walk Behind Mower

Model: 5521 RS - 96143000200 (2005-03)

Save Part Not Listed?
product name

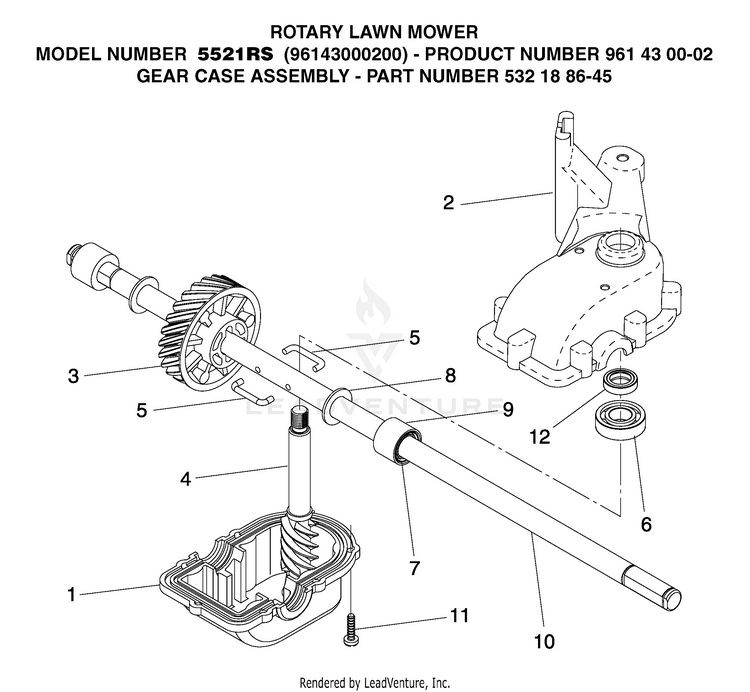

GEAR CASE

...
...
5
RP.SHAFT.OUTPUT.RGD.VS/EZ HUS-532191249
...
- -
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
9
BUSHING HUS-532183511
...
7
SEAL.OUTPUT.SHAFT HUS-532183508
...
6
BEARING HUS-532183506
...
11
SCREW HUS-532183513
...
2
CASE, UPPER HUS-532187531
...
12
SEAL INPUT SHAFT HUS-532183514
...
8
WASHER HUS-532183509
...
1
CASE, LOWER HUS-532187530
...
3
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
4
SHAFT INPUT HUS-532187533

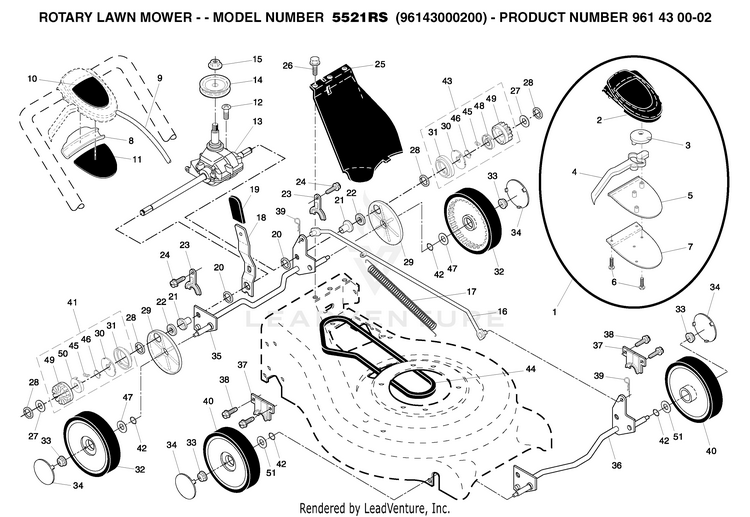

REPAIR PARTS

...
...
47
WASHER FLUT HUS-532067725
...
20
E-RING HUS-812000022
...
34
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
38
SCREW HUS-532163409
...
51
WASHER.FLAT.1/2 HUS-532088348
...
13
KIT.TRANSMISION.REPLACE.180868 HUS-532414282
...
30
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
41
KIT.PINION.ASM HUS-532414860
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
27
Washers HUS-596040101
...
8
EZ WALK SNAP COVER PLATE HUS-532186297
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
39
RETAINER CLIP HUS-532700279
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
40
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
44
21" DRIVE BELT (IN SLEEVE) HUS-531300775
...
2
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
16
KIT.ROD.CONNECTING.REPL.161584 HUS-532414284
...
12
SCREW HUS-532187653
...
43
KIT.PINION.ASM HUS-532414860
...
24
SCREW HUS-532057808
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
28
E-RING 7/16 RE HUS-812000058
...
49
GEAR, PINION HUS-532175103
...
14
PULLEY HUS-532194128
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
46
SPRING, TORSION HUS-532188291
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
17
SPRING EXTENSION HUS-532409616
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
22
BEARING, BALL HUS-532169911
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
9
CABLE, DRIVE CONTROL HUS-532190284
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
5
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
45
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
26
SCREW HUS-532750634
...
32
KIT.WHL.9X2.RAD.BLK(SERV ONLY) HUS-532193139
...
48
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
50
RETAINER, DRIVE, RH HUS-532175102
...
31
SEAL.PINION HUS-532184172
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
21
BEARING SUPPORT.ASM HUS-532169920
...
19
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808

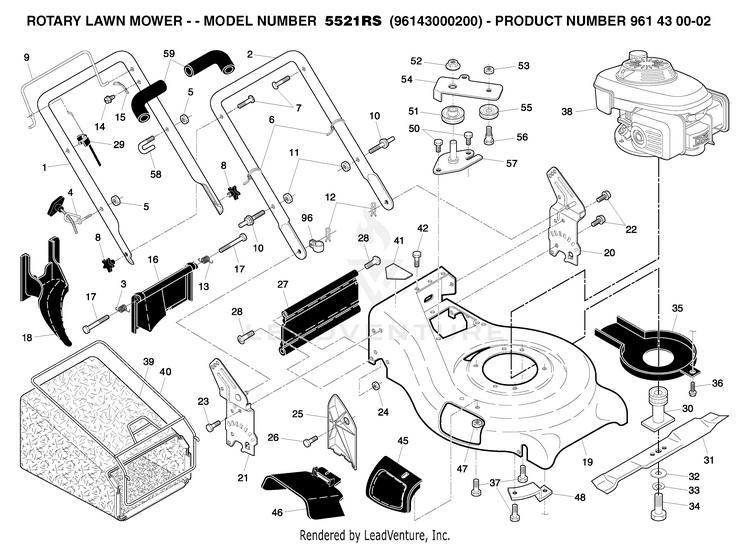

REPAIR PARTS 2

...
...
29
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
57
BRACKET.IDLER.ASM.EZ HUS-532193315
...
- -
WARNING DECAL HUS-530402152
...
31
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
96
CLIP.CABLE.BLK HUS-532197991
...
12
HAIRPIN COTTER HUS-532051793
...
59
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
42
SCREW HUS-532054583
...
52
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
10
BOLT HUS-532188821
...
8
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
11
NUT.CENTERLOCK.5/16- HUS-873930500
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
24
Hardware HUS-596040501
...
36
SCREW HUS-532188040
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
39
GBAG 4323247 SILVER HUS-532194540
...
58
CLIP HUS-532182003
...
9
BAIL.DSTRT.FL.AW.ORANGE HUS-532187940
...
25
CLIPPING DEFLECTOR HUS-532161333
...
28
HINGE SCREW HUS-532088652
...
21
BRKT.ASM.HNDL HUS-532194031
...
30
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
14
SCREW HUS-532750634
...
23
Screws HUS-596031601
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
51
PULLEY.IDLER.V-BELT HUS-532193791
...
20
BRKT.ASM.HNDL.21.RWGD.LT.BLACK HUS-532193917
...
50
SCREW HUS-532057808
...
3
SPRING.LH.REAR.DOOR.21.RWGD HUS-532186053
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
40
FRAME.CATCHER.21.RGD.AG HUS-532194644
...
47
NUT HUS-532088349
...
56
SHOULDER BOLT HUS-532160829
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
32
WASHER,HARDEN HUS-532851074
...
48
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
26
SCREW HUS-532163409
...
54
ARM.IDLER.VIBRATORY.FINISH.EZ HUS-532193792
...
15
BRACKET.UPSTOP HUS-532850733
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
17
BOLT HUS-532184193
...
35
DEBRIS SHEILD HUS-532188786
...
55
IDLER PULLEY HUS-532166043
...
13
SPRING.RH.REAR.DOOR.21.RWGD HUS-532186052
...
33
Washers HUS-596238701
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
53
NUT.CENTERLOCK.5/16- HUS-873930500
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
6
WIRE TIE HUS-532007192
...
16
DOOR.REAR.PLASTIC.21.RWGD.BLAC HUS-532190574
