Husqvarna 5521 CM (96133000302) (2006-12) Walk Mower

Model: 5521 CM (96133000302) (2006-12)

Save Part Not Listed?
product name

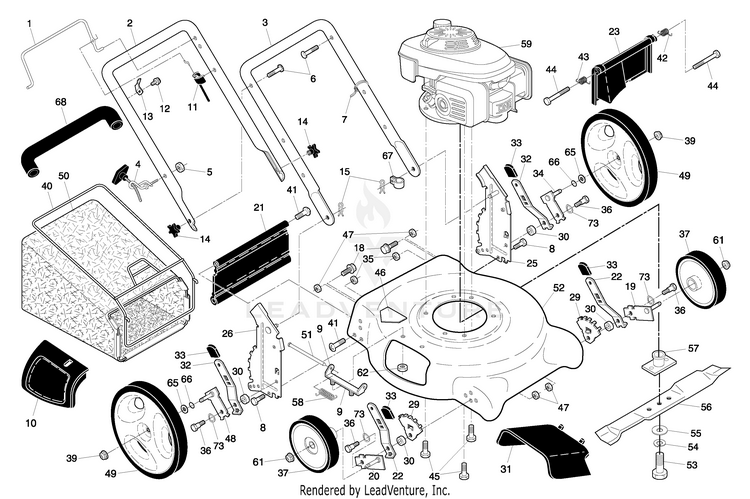

Handle And Deck Assembly

...
...
1
BAIL.MZR.STD.ORANGE HUS-532402949
...
2
UPPERHANDLE(INCLUDES FOAMGRIP) (Includes Foam Grip) HUS-532197808
...
3
HANDLE.LOWER.BLACK HUS-532174291
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
7
WIRE TIE HUS-532007192
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
9
BRACKET.ASM.HOUSING.EZ.MUL HUS-532154132
...
10
DOOR.MULCH.21".REAR.PUSH.GRAY HUS-581825801
...
11
ENGINE ZONE CONTROL CABLE HUS-532176556
...
12
SCREW HUS-532750634
...
13
BRACKET.UPSTOP.RT HUS-532430034
...
14
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
15
HAIRPIN COTTER HUS-532051793
...
18
SCREW 1/4X20 HUS-817600406
...
19
ARM.ASM.AXLE.5/9.POS. HUS-532401174
...
20
ARM.ASM.AXLE.5/9.POS.BZP HUS-532401175
...
21
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
22
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
23
DOOR.REAR.21.DOMED.498 HUS-581425601
...
24
NUT.CENTERLOCK.5/16- HUS-873930500
...
25
BRACKET.ASM.COMB.HDL/ADJ.21.RT HUS-532400627
...
26
BRACKET.ASM.HANDLE.HW.21.BLACK HUS-580915704
...
28
TORSION SPRING HUS-532152124
...
29
BRACKET.ADJ.5POS.ADS HUS-532407494
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
31
DEFLECTOR.CLIPPING.21.PUSH.BLK HUS-589482402
...
32
SPRING.SEL.EXT.21.DOMED.12/14 HUS-532401624
...
33
SELECTOR KNOB HUS-532185574
...
34
ARM.ASM.AXLE..LR.5/9.POS.BZP HUS-532401176
...
35
NUT.LOCK.5/16-18 HUS-532751153
...
36
Hardware HUS-596203801
...
37
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
40
FRAME.BAG.21.REAR.DOMED.PUSH HUS-532411949
...
41
HINGE SCREW HUS-532088652
...
42
SPRING.LH.22.REAR.DOOR.EZ.EMPT HUS-532405421
...
43
SPRING.RH.22.REAR.DOOR.EZ. HUS-532405423
...
44
BOLT HUS-532184193
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
47
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
48
ARM.ASM.AXLE..RR.5/9.POS.BZP HUS-532401177
...
49
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
50
GBAG.24710247.SILVER.H HUS-532401191
...
51
ROD.HINGE.COMBI-C HUS-532147286
...
52
HOUSING.21.MC.DOME.ORG.EF.WBFS (Includes Key Numbers 17, 18 and 46) HUS-532443257
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
54
Washers HUS-596238701
...
55
WASHER,HARDEN HUS-532851074
...
56
21" WALK MOWER BLADE HUS-594893001
...
57
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
61
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
62
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
65
WASHER.FLAT.1/2 HUS-532088348
...
66
O-RING..070X.487.NEOPRENE HUS-532197480
...
67
CLIP.CABLE.BLK HUS-532197991
...
68
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
73
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
74
WASHER.ENGINE.BZP HUS-532125078
...
xx
DECAL.CUTFINGER.CE.02 (not shown) HUS-581579101
...
xx
OWNERS MANUAL HUS-532410638
