Husqvarna 5521 CM - 954223487 (2003-09) Walk Behind Mower

Model: 5521 CM - 954223487 (2003-09)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
41
HINGE SCREW HUS-532088652
...
44
BOLT HUS-532184193
...
68
FRAME.BAG.21.REAR.DOME HUS-532194642
...
24
NUT.CENTERLOCK.5/16- HUS-873930500
...
36
SHOULDER BOLT HUS-532160828
...
15
HAIRPIN COTTER HUS-532051793
...
14
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
30
SPACER.34X1.38X.22 HUS-532183901
...
28
TORSION SPRING HUS-532152124
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
29
BRACKET.ADJ.5POS.ADS HUS-532407494
...
21
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
12
SCREW HUS-532750634
...
60
O-RING..070X.487.NEOPRENE HUS-532197480
...
23
KIT.REAR.DOOR.21.DOMED. HUS-532186612
...
19
ARM.ASM.AXLE.LR/RF.5/9POS.BZP HUS-532186578
...
11
ENGINE ZONE CONTROL CABLE HUS-532176556
...
16
ROD.HINGE.COMBI-C HUS-532147286
...
18
SCREW 1/4X20 HUS-817600406
...
6
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
37
WHEEL.10X2.PR.HITRAC.BLACK HUS-532180183
...
7
WIRE TIE HUS-532007192
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
47
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
20
ARM.ASM.AXLE.RR/LF.5/9POS.BZP HUS-532186577
...
9
BRACKET.ASM.HOUSING.EZ.MUL HUS-532154132
...
58
WASHER.FLAT.1/2 HUS-532088348
...
26
KIT.BRACKET.HANDLE/REAR.DOOR HUS-586559801
...
22
SPRING.SELECTOR.5/9POS HUS-532168360
...
25
KIT.BRACKET.HANDLE/REAR.DOOR HUS-586559801
...
67
GBAG.22510010.BLK.GEN HUS-532410666
...
- -
WARNING DECAL HUS-530402152
...
56
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
31
DEFLECTOR.CLIPPING.21.PUSH.BLK HUS-589482402
...
54
Washers HUS-596238701
...
8
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
43
SPRING (RH) HUS-532165767
...
57
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
17
BRACKET.SUPPORT.21.DOMED.BLACK HUS-532165946
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
42
SPRING (LH) HUS-532165766
...
38
WHEEL 8 X 2 BLACK BALL BEARING HUS-532180541
...
3
HANDLE.LOWER.BLACK HUS-532174291
...
55
WASHER,HARDEN HUS-532851074
...
13
BRACKET.UPSTOP.RT HUS-532430034
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
SCREW 1/4X20 HUS-817600406
...
52
HOUSING.21.MC.DOME.ORG.EF.WBFS HUS-532443257

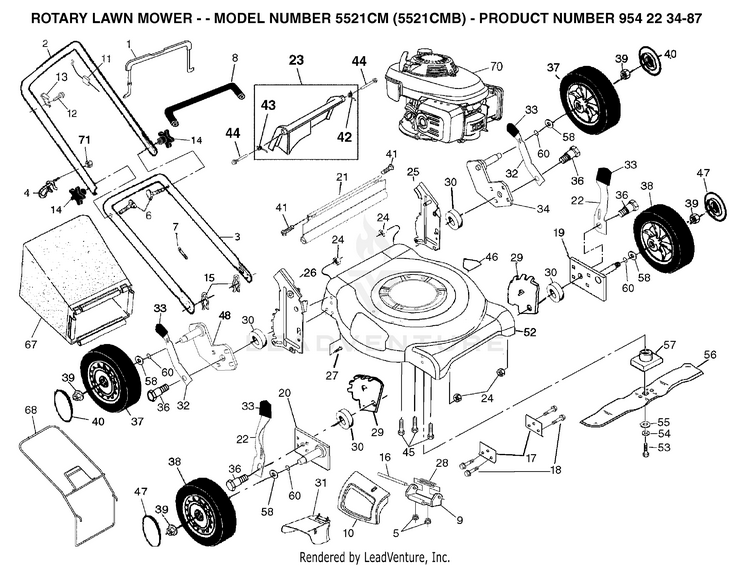

Schematic Image Zoomed
