Husqvarna 5521 CHV (96143000105) (2006-12) Walk Mower

Model: 5521 CHV (96143000105) (2006-12)

Save Part Not Listed?
product name

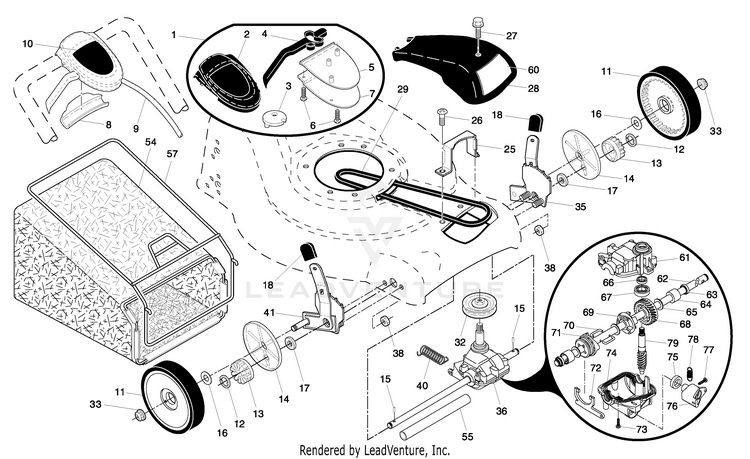

Drive Assembly

...
...
1
CONTROL.DR.EZ.FWGD.SHORT.GY/BL HUS-532196270
...
2
COVER TOP AUTO WALK CONTROL HUS-532406260
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
5
COVER BOTTOM AUTO WLK CONTROL HUS-532406261
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
8
EZ WALK SNAP COVER PLATE HUS-532186297
...
9
CONTROL.DR.EZ.FWGD.SHORT.GY/BL HUS-532196270
...
10
DECAL, DRIVE HUS-532189378
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
12
E-RING 7/16 RE HUS-812000058
...
13
PINION.14.TEETH.FGD HUS-532403849
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
15
PAWL, DRIVE HUS-532404845
...
16
WASHER FLUT HUS-532067725
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
18
SELECTOR KNOB HUS-532185574
...
25
KEEPER.BELT.21.EZ.FWGD HUS-532199089
...
26
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
28
COVER.DRIVE.ASM.185579.CE.WALK HUS-532432664
...
29
BELT.DRIVE.FGD. HUS-532196853
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
35
KIT.ADJUSTER.ASM..LT.ORG (Includes Knob and Bearing) HUS-532438452
...
36
TRANSMISSION.21RD HUS-532188296
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
40
SPRING RETURN HUS-532192849
...
41
KIT.ADJUSTER.ASM.438453.RT.ORG (Includes Knob and Bearing) HUS-532438454
...
54
GBAG.34710090.H-GREY MS498 HUS-580953406
...
55
DRIVESHAFT COVER HUS-532175739
...
57
FRAME.GBAG.21.FWGD HUS-532411950
...
60
DECAL DRIVE COVER HUS-532193557
...
61
GEARCASE.HOUSING HUS-532196886
...
62
SHAFT.OUTPUT HUS-532196885
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
64
BUSHING HUS-532183511
...
65
WASHER HUS-532183509
...
66
SEAL INPUT SHAFT HUS-532183514
...
67
BEARING HUS-532183506
...
68
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
69
CLUTCH HUS-532196884
...
70
WIRE, FORMED (15966) HUS-532183505
...
71
CLUTCH HUS-532196883
...
72
FORK HUS-532196882
...
73
SCREW HUS-532183513
...
74
GEARCASE.HOUSING.LOWER HUS-532196881
...
75
SEAL HUS-532196880
...
76
LEVER HUS-532196879
...
77
SCREW.LEVER. HUS-532196878
...
78
SPRING. HUS-532196877
...
79
SHAFT INPUT (13041) HUS-532183502

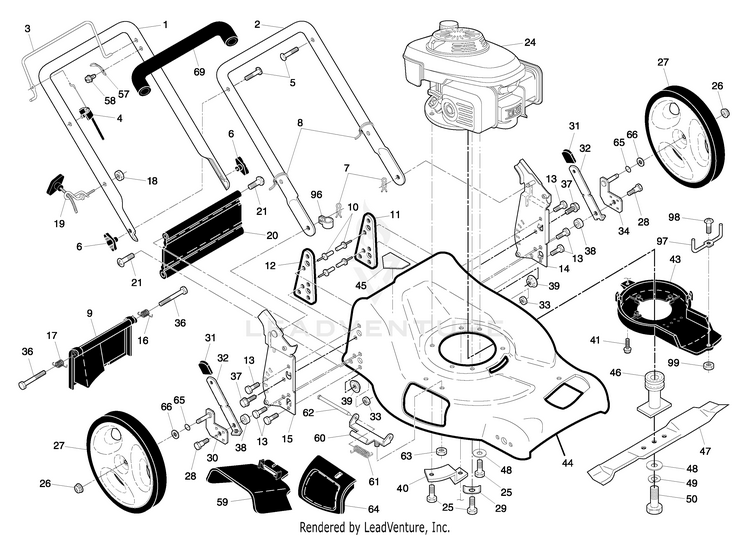

Handle And Deck Assembly

...
...
1
HANDLE.ASM.GRY.W/GRIP HUS-532427658
...
2
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
3
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019
...
4
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
5
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
7
HAIRPIN COTTER HUS-532051793
...
8
WIRE TIE HUS-532007192
...
9
DOOR.REAR.PLASTIC.21.FWGD HUS-532401812
...
10
RIVET BLIND HUS-532128415
...
11
BRACKET.SUPPORT.LH.21.FWGD HUS-532406573
...
12
BRACKET.SUPRT.RH.21.FWGD HUS-532410542
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
14
BRACKET.ASM.HNDL.LT.21.FGD.HW HUS-532434513
...
15
BRACKET.ASM.HNDL.RT.21.FGD.HW HUS-532434512
...
16
SPRING.REAR.DOOR.EZ.21.LT HUS-532405417
...
17
SPRING.REAR.DOOR.EZ.21.RT HUS-532405418
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
20
SKIRT.REAR.21 FWGD.BLACK HUS-532413159
...
21
HINGE SCREW HUS-532088652
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
28
SHOULDER BOLT HUS-532160828
...
29
WASHER.ENGINE.BZP HUS-532125078
...
30
ARM.ASM.AXLE.H/W,RR.BZ HUS-532402571
...
31
SELECTOR KNOB HUS-532185574
...
32
SPRING.SELECTOR.21.FWG.ZINC HUS-532190157
...
33
Hardware HUS-596040501
...
34
ARM.ASM.AXLE.H/W.LR.BZ HUS-532402572
...
36
BOLT HUS-532184193
...
37
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
38
WASHER.FLAT.34X1.38X22 HUS-819112206
...
39
GSPW Hardware HUS-596039201
...
40
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
41
SCREW.HEX.WSH HUS-532192325
...
43
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
44
HOUSING.21.FWD.ORANGE.WALK (Includes Key Numbers 10, 11, 12 and 45) HUS-532408989
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
47
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
48
WASHER,HARDEN HUS-532851074
...
49
Washers HUS-596238701
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
57
BRACKET.UPSTOP HUS-532850733
...
58
SCREW HUS-532750634
...
59
DISCHARGE DEFLECTOR HUS-532175071
...
60
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
61
SPRING.TORSION HUS-532193000
...
62
ROD.HINGE.21 HUS-532175650
...
63
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
64
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
66
WASHER.FLAT.1/2 HUS-532088348
...
69
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
96
CLIP.CABLE.BLK HUS-532197991
...
97
KEEPER.BELT.FGD HUS-532197162
...
98
SCREW.#8.MACH HUS-532182227
...
99
NUT.HEX.#8 HUS-532182228
...
xx
DECAL.CUTFINGER.CE.02 (not shown) HUS-581579101
...
xx
OWNER'S MANUAL HUS-532410705
