Husqvarna 5521 CHV - 96143000102 (2005-04) Walk Behind Mower

Model: 5521 CHV - 96143000102 (2005-04)

Save Part Not Listed?
product name

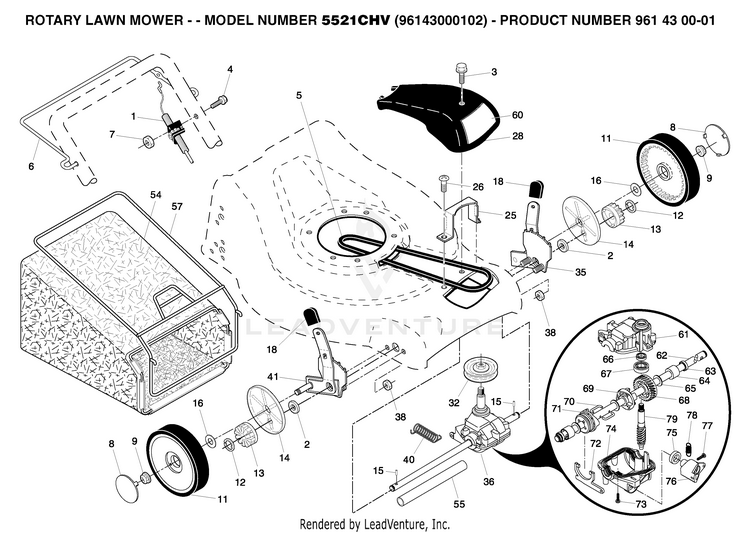

REPAIR PARTS

...
...
6
BAIL.CONT.DR.S/S.ROUND.ORG HUS-532199093
...
54
GBAG.34710090.H-GREY MS498 HUS-580953406
...
67
BEARING HUS-532183506
...
28
COVER.DRIVE.ASM.185579.CE.WALK HUS-532432664
...
60
not available HUS-000000000
...
79
SHAFT INPUT (13041) HUS-532183502
...
11
WHEEL.8X2.PR.LP.RADII.BLACK.BU HUS-532180775
...
68
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
41
ADJUSTER.ASM.22+FGD.LF /AWD LT HUS-581497907
...
72
FORK HUS-532196882
...
7
NUT.HEX.FLANGE.1/4 HUS-532191730
...
35
ADJUSTER.ASM.22+FGD.RF /AWD RT HUS-581497908
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
64
BUSHING HUS-532183511
...
26
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
71
CLUTCH HUS-532196883
...
8
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
5
BELT.DRIVE.FG HUS-532194149
...
12
E-RING 7/16 RE HUS-812000058
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
77
SCREW.LEVER. HUS-532196878
...
13
PINION.14.TEETH.FGD HUS-532403849
...
57
FRAME.GBAG.21.FWGD. HUS-532194643
...
40
SPRING RETURN HUS-532192849
...
76
LEVER HUS-532196879
...
36
TRANSMISSION.21RD HUS-532188296
...
74
GEARCASE.HOUSING.LOWER HUS-532196881
...
18
SELECTOR KNOB HUS-532185574
...
25
KEEPER.BELT.21.EZ.FWGD HUS-532199089
...
9
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
16
WASHER FLUT HUS-532067725
...
1
CONTROL.DRIVE.VARI.SPEED.FWGD HUS-532193480
...
4
SCREW HUS-532185681
...
69
CLUTCH HUS-532196884
...
70
WIRE, FORMED (15966) HUS-532183505
...
62
SHAFT.OUTPUT HUS-532196885
...
61
GEARCASE.HOUSING HUS-532196886
...
78
SPRING. HUS-532196877
...
3
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
66
SEAL INPUT SHAFT HUS-532183514
...
55
DRIVESHAFT COVER HUS-532175739
...
2
BEARING.SUPPORT.ASM HUS-587070202
...
15
PAWL, DRIVE HUS-532404845
...
75
SEAL HUS-532196880
...
65
WASHER HUS-532183509
...
73
SCREW HUS-532183513

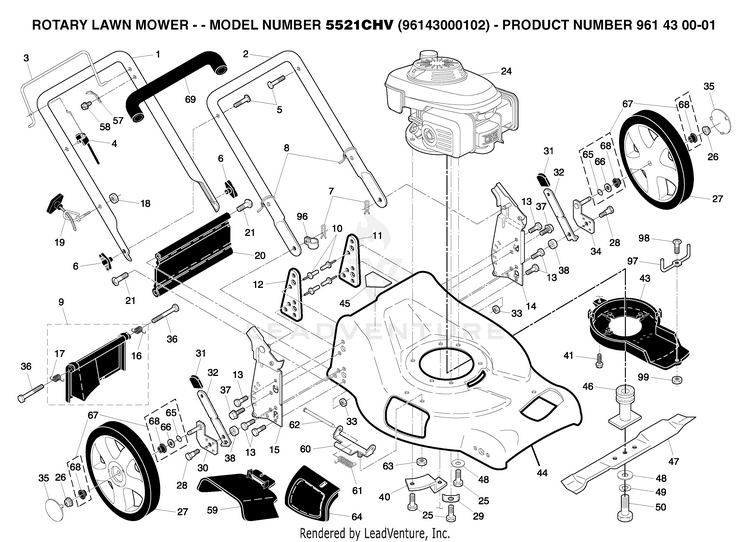

REPAIR PARTS 2

...
...
5
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
97
KEEPER.BELT.FGD HUS-532197162
...
63
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
2
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
28
SHOULDER BOLT HUS-532160828
...
30
ARM.ASM.AXLE.HW.RR. HUS-532175574
...
66
WASHER.FLAT.1/2 HUS-532088348
...
57
BRACKET.UPSTOP HUS-532850733
...
14
BRACKET.ASM.HNDL.LT.21.FGD.HW HUS-532434513
...
64
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
69
GRIP, FOAM HUS-532186362
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
36
BOLT HUS-532184193
...
47
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
16
SPRING LH HUS-532180071
...
44
HOUSING.21.FGD.MC.ORANG.E/F.BK HUS-532185583
...
29
WASHER.ENGINE.BZP HUS-532125078
...
10
RIVET BLIND HUS-532128415
...
1
HANDLE.UP.DSTRT.FGD.FLT.W/GRIP HUS-584329601
...
49
Washers HUS-596238701
...
60
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
4
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
34
ARM ASM.AXLE.H/W.LR.BZP HUS-532175575
...
62
ROD.HINGE.21 HUS-532175650
...
9
KIT.DOOR.RR.ASM.21.FWGD HUS-532180479
...
15
BRACKET.ASM.HNDL.RT.21.FGD.HW HUS-532434512
...
58
SCREW HUS-532750634
...
35
3" HUBCAP SILVER HUS-532150635
...
3
BAIL.CONT.MZR.FLAT.21 HUS-532186011
...
40
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
67
KIT.BUSHING.WHEEL.14" HUS-532193498
...
68
Bushing, Nylon, Black HUS-532193696
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
17
SPRING.REAR.DOOR.EZ.21 HUS-532180072
...
41
SCREW.HEX.WSH HUS-532192325
...
7
HAIRPIN COTTER HUS-532051793
...
98
SCREW.#8.MACH HUS-532182227
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
8
WIRE TIE HUS-532007192
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
20
SKIRT.REAR.21 FWGD.BLACK HUS-532413159
...
96
CLIP.CABLE.BLK HUS-532197991
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
27
WHEEL.14X2.PR.RADII.SILV.MAG.B HUS-532180552
...
24
HONDA GCV160 FOR SERVICE & PARTS 1-800-426-7701 HUS-000000000
...
31
SELECTOR KNOB HUS-532185575
...
43
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
48
WASHER,HARDEN HUS-532851074
...
32
SPRING.SELECTOR.21.FWG HUS-532175053
...
59
DISCHARGE DEFLECTOR HUS-532175071
...
12
KIT.BRACKET.SUPPORT.RH.21.FWGD HUS-532421560
...
38
WASHER.FLAT.34X1.38X22 HUS-819112206
...
99
NUT.HEX.#8 HUS-532182228
...
21
HINGE SCREW HUS-532088652
...
61
SPRING.TORSION HUS-532193000
...
33
Hardware HUS-596040501
...
11
SUPPORT BRACKET LH HUS-532182538
