Husqvarna 5521 CHV - 954223883 (2004-07) Walk Behind Mower

Model: 5521 CHV - 954223883 (2004-07)

Save Part Not Listed?
product name

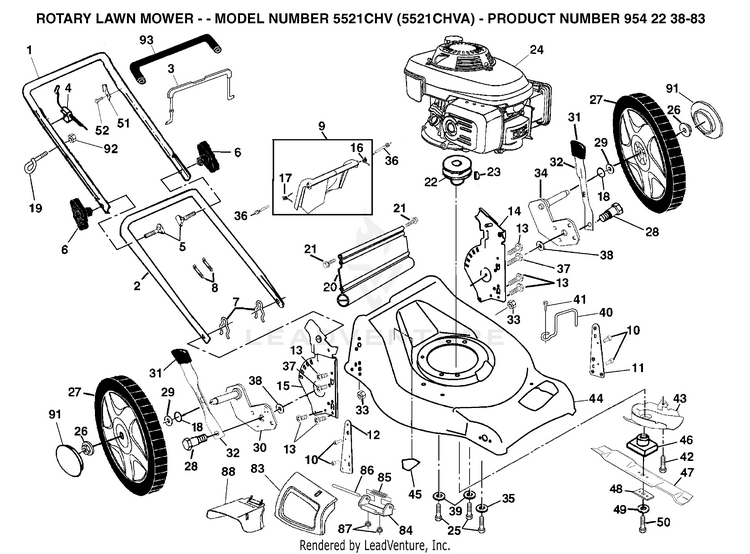

REPAIR PARTS

...
...
33
Hardware HUS-596040501
...
10
RIVET BLIND HUS-532128415
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
91
3" HUBCAP SILVER HUS-532150635
...
42
SCREW HUS-532188040
...
46
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
31
SELECTOR KNOB HUS-532185575
...
24
HUS-000000000
...
15
BRACKET.ASM.HNDL.RT.21.FGD.HW HUS-532434512
...
36
BOLT HUS-532184193
...
3
BAIL.CONT.MZR.FLAT.21 HUS-532186011
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
21
HINGE SCREW HUS-532088652
...
47
21" BLADE PRECISION HUS-532406706
...
20
SKIRT.REAR.21 FWGD.BLACK HUS-532413159
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
32
SPRING.SELECTOR.21.FWG HUS-532175053
...
27
WHEEL.14X2.PR.RADII.SILV.MAG.B HUS-532180552
...
12
KIT.BRACKET.SUPPORT.RH.21.FWGD HUS-532421560
...
41
BOLT.HEX.HDWSH.5/16-18X1.00 HUS-532173715
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
2
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
51
BRACKET.UPSTOP HUS-532850733
...
40
KEEPER, BELT HUS-532188102
...
83
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
8
WIRE TIE HUS-532007192
...
23
HI-PRO KEY HUS-532187723
...
34
ARM ASM.AXLE.H/W.LR.BZP HUS-532175575
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
48
WASHER.SADDLE.BZP HUS-532183526
...
11
SUPPORT BRACKET LH HUS-532182538
...
14
BRACKET.ASM.HNDL.LT.21.FGD.HW HUS-532434513
...
1
HANDLE.UP.DSTRT.FGD.FLT.W/GRIP HUS-584329601
...
22
ENGINE PULLEY HUS-532185005
...
52
SCREW HUS-532750634
...
16
SPRING LH HUS-532180071
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
5
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
92
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
30
ARM.ASM.AXLE.HW.RR. HUS-532175574
...
9
KIT.DOOR.RR.ASM.21.FWGD HUS-532180479
...
4
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
49
Washers HUS-596238701
...
35
WASHER.ENGINE.BZP HUS-532125078
...
85
SPRING.TORSION HUS-532193000
...
87
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
43
DEBRIS.SHIELD.FWGD.WALK.MOWER HUS-532187038
...
17
SPRING.REAR.DOOR.EZ.21 HUS-532180072
...
84
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
18
O-RING..070X.487.NEOPRENE HUS-532197480
...
39
WASHER,HARDEN HUS-532851074
...
44
HOUSING.21.FGD.MC.ORANG.E/F.BK HUS-532185583
...
28
SHOULDER BOLT HUS-532160828
...
7
HAIRPIN COTTER HUS-532051793
...
86
ROD.HINGE.21 HUS-532175650
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
38
SPACER.34X1.38X.22 HUS-532183901
...
88
DISCHARGE DEFLECTOR HUS-532175071
...
29
WASHER.FLAT.1/2 HUS-532088348
...
93
GRIP, FOAM HUS-532186362
...
xx
WARNING DECAL HUS-530402152

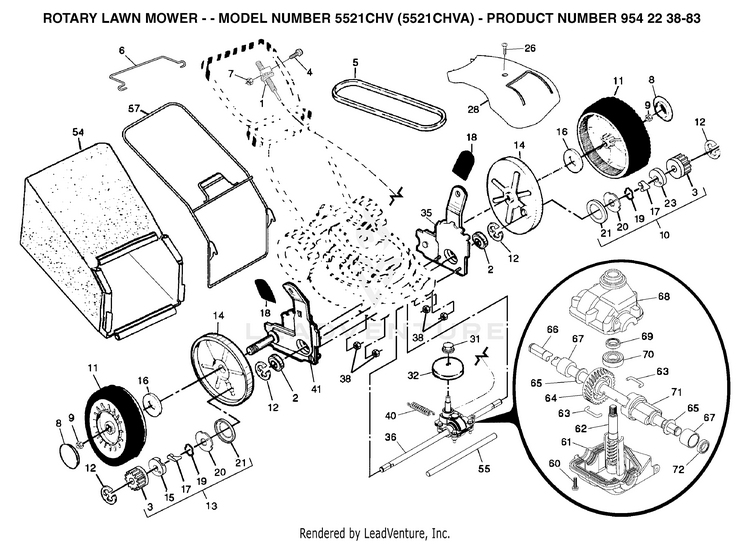

REPAIR PARTS 2

...
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
4
SCREW HUS-532185681
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
23
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
63
WIRE, FORMED (15966) HUS-532183505
...
40
SPRING HUS-532406558
...
61
LOWER CASE HUS-532187525
...
35
KIT.ADJUSTER.ASM.EZ.LH HUS-532180915
...
36
TRANSMISSION.21RD.FGDE HUS-532187212
...
18
SELECTOR KNOB HUS-532185574
...
67
BUSHING HUS-532183511
...
10
KIT.PINION.ASM.LH HUS-532193366
...
28
COVER.DRIVE.ASM.185579.CE.WALK HUS-532432664
...
54
GBAG.32510010.BLK.GEN.SERVICE HUS-532410667
...
13
KIT.PINION.ASM.RH HUS-532193367
...
71
SPACER HUS-532187528
...
41
KIT.ADJUSTER.ASM.EZ(169770).RT HUS-532180914
...
5
V-BELT HUS-532169778
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
8
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
72
SEAL.OUTPUT.SHAFT HUS-532183508
...
65
WASHER HUS-532183509
...
26
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
20
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
62
SHAFT INPUT (13056) HUS-532187527
...
57
FRAME.GBAG.21.FWGD. HUS-532194643
...
16
WASHER FLUT HUS-532067725
...
66
SHAFT OUTPUT (12198) HUS-532187529
...
15
RETAINER, DRIVE, RH HUS-532175102
...
64
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
6
DRIVE CONTROL BAIL HUS-532194185
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
19
SPRING, TORSION HUS-532188291
...
55
DRIVESHAFT COVER HUS-532175739
...
7
NUT.HEX.FLANGE.1/4 HUS-532191730
...
69
SEAL INPUT SHAFT HUS-532183514
...
11
WHEEL.8X2.PR.LP.RADII.BLACK.BU HUS-532180775
...
60
SCREW HUS-532183513
...
3
GEAR, PINION HUS-532175103
...
2
BEARING, BALL HUS-532169911
...
68
UPPER CASE HUS-532187526
...
70
BEARING HUS-532183506
...
17
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
12
E-RING 7/16 RE HUS-812000058
...
9
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
1
CONTROL.DRIVE.VARI.SPEED.FWGD HUS-532189182
...
21
SEAL.PINION HUS-532184172

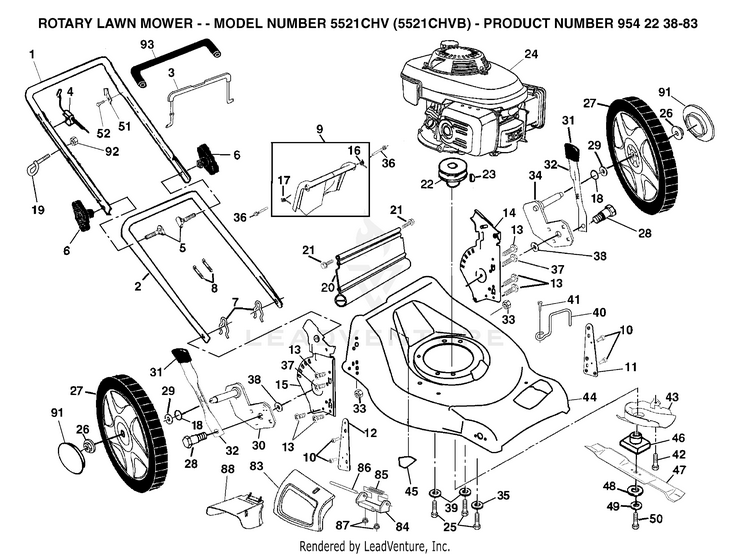

REPAIR PARTS 3

...
...
11
SUPPORT BRACKET LH HUS-532182538
...
93
GRIP, FOAM HUS-532186362
...
28
SHOULDER BOLT HUS-532160828
...
14
BRACKET.ASM.HNDL.LT.21.FGD.HW HUS-532434513
...
2
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
30
ARM.ASM.AXLE.HW.RR. HUS-532175574
...
38
SPACER.34X1.38X.22 HUS-532183901
...
39
WASHER,HARDEN HUS-532851074
...
- -
WARNING DECAL HUS-530402152
...
91
3" HUBCAP SILVER HUS-532150635
...
40
KEEPER, BELT HUS-532188102
...
23
HI-PRO KEY HUS-532187723
...
92
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
88
DISCHARGE DEFLECTOR HUS-532175071
...
12
KIT.BRACKET.SUPPORT.RH.21.FWGD HUS-532421560
...
85
SPRING.TORSION HUS-532193000
...
21
HINGE SCREW HUS-532088652
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
1
HANDLE.UP.DSTRT.FGD.FLT.W/GRIP HUS-584329601
...
83
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
16
SPRING LH HUS-532180071
...
52
SCREW HUS-532750634
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
27
WHEEL.14X2.PR.RADII.SILV.MAG.B HUS-532180552
...
47
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
48
WASHER,HARDEN HUS-532851074
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
32
SPRING.SELECTOR.21.FWG HUS-532175053
...
42
SCREW HUS-532188040
...
84
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
49
Washers HUS-596238701
...
22
ENGINE PULLEY HUS-532185005
...
17
SPRING.REAR.DOOR.EZ.21 HUS-532180072
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
29
WASHER.FLAT.1/2 HUS-532088348
...
34
ARM ASM.AXLE.H/W.LR.BZP HUS-532175575
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
18
O-RING..070X.487.NEOPRENE HUS-532197480
...
33
Hardware HUS-596040501
...
15
BRACKET.ASM.HNDL.RT.21.FGD.HW HUS-532434512
...
4
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
7
HAIRPIN COTTER HUS-532051793
...
86
ROD.HINGE.21 HUS-532175650
...
8
WIRE TIE HUS-532007192
...
41
BOLT.HEX.HDWSH.5/16-18X1.00 HUS-532173715
...
5
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
87
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
10
RIVET BLIND HUS-532128415
...
51
BRACKET.UPSTOP HUS-532850733
...
9
KIT.DOOR.RR.ASM.21.FWGD HUS-532180479
...
46
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
36
BOLT HUS-532184193
...
43
DEBRIS.SHIELD.FWGD.WALK.MOWER HUS-532187038
...
35
WASHER.ENGINE.BZP HUS-532125078

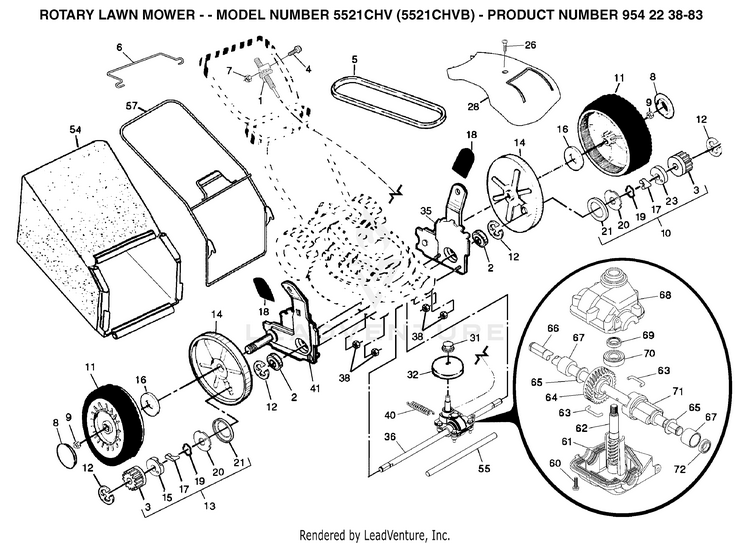

REPAIR PARTS 4

...
...
68
UPPER CASE HUS-532187526
...
70
BEARING HUS-532183506
...
65
WASHER HUS-532183509
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
4
SCREW HUS-532185681
...
11
WHEEL.8X2.PR.LP.RADII.BLACK.BU HUS-532180775
...
19
SPRING, TORSION HUS-532188291
...
60
SCREW HUS-532183513
...
36
TRANSMISSION.21RD.FGDE HUS-532187212
...
63
WIRE, FORMED (15966) HUS-532183505
...
62
SHAFT INPUT (13056) HUS-532187527
...
66
SHAFT OUTPUT (12198) HUS-532187529
...
55
DRIVESHAFT COVER HUS-532175739
...
41
KIT.ADJUSTER.ASM.EZ(169770).RT HUS-532180914
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
35
KIT.ADJUSTER.ASM.EZ.LH HUS-532180915
...
2
BEARING, BALL HUS-532169911
...
23
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
20
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
10
KIT.PINION.ASM HUS-532414860
...
69
SEAL INPUT SHAFT HUS-532183514
...
13
KIT.PINION.ASM HUS-532414860
...
16
WASHER FLUT HUS-532067725
...
15
RETAINER, DRIVE, RH HUS-532175102
...
17
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
3
GEAR, PINION HUS-532175103
...
71
SPACER HUS-532187528
...
8
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
28
COVER.DRIVE.ASM.185579.CE.WALK HUS-532432664
...
72
SEAL.OUTPUT.SHAFT HUS-532183508
...
12
E-RING 7/16 RE HUS-812000058
...
67
BUSHING HUS-532183511
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
40
SPRING HUS-532406558
...
61
LOWER CASE HUS-532187525
...
5
V-BELT HUS-532169778
...
57
FRAME.GBAG.21.FWGD. HUS-532194643
...
26
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
64
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
54
GBAG.32510010.BLK.GEN.SERVICE HUS-532410667
...
1
CONTROL.DRIVE.VARI.SPEED.FWGD HUS-532189182
...
7
NUT.HEX.FLANGE.1/4 HUS-532191730
...
9
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
21
SEAL.PINION HUS-532184172
