Husqvarna 550 XP (2013-01) Chain Saw

Model: 550 XP (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

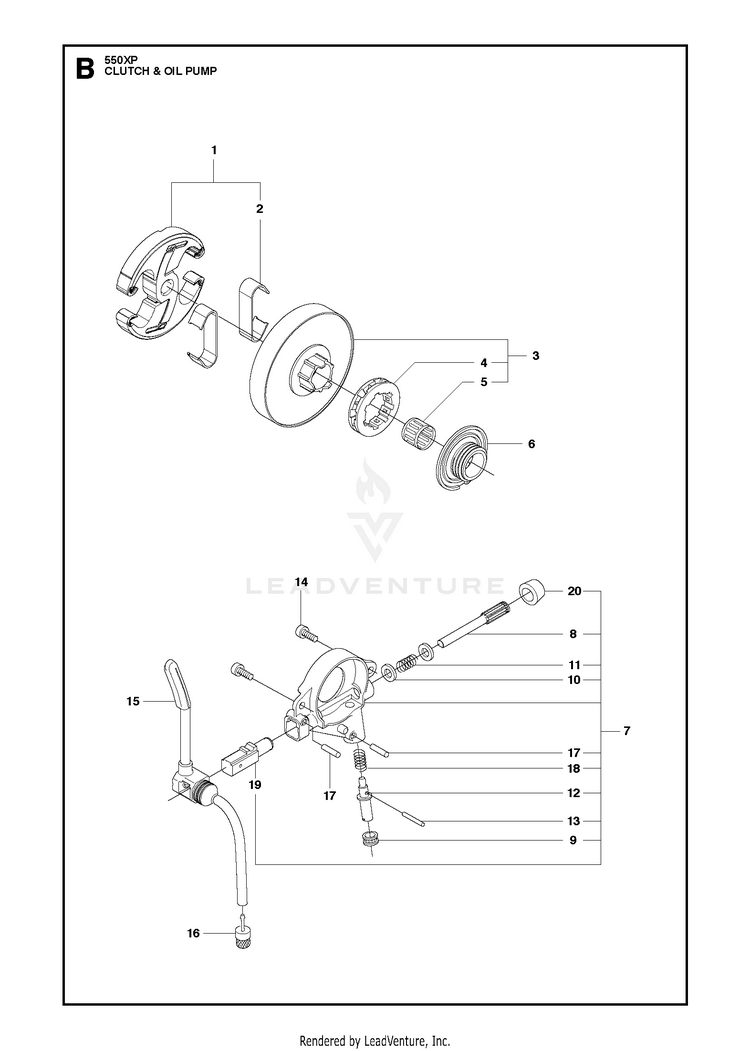

CLUTCH OIL PUMP

...
...
1
Clutches HUS-577518202
...
2
SPRING . 1 HUS-537359101
...
3
CLUTCH DRUM ASSY RIM .325"7T 325 x7 HUS-575261005
...
4
11892 POWER MATE RIM 325 x7. 3 HUS-640200010
...
5
SUPPORT BUSHING . 3 HUS-503253401
...
6
WORM WHEEL HUS-505200801
...
7
OIL PUMP ASSY HUS-505199904
...
8
PUMP PISTON 50CC . 7 HUS-505200204
...
9
CASING . 7 HUS-505200301
...
10
WASHER . 7 HUS-503230060
...
11
SPRING . 7 HUS-503891601
...
12
ADJUSTING SCREW . 7 HUS-505157001
...
13
PIN . 7 HUS-721116430
...
14
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
15
OIL HOSE HUS-505200401
...
16
OIL PLUMMET HUS-504710003
...
17
PIN 3X10 . 7 HUS-720123300
...
18
SPRING . 7 HUS-503891501
...
19
PUMP CYLINDER . 7 HUS-505200101
...
20
PLUG . 7 HUS-503624901
