Husqvarna 55 RANCHER (20070500001-Current) Chain Saw

Model: 55 RANCHER (20070500001-Current)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CARBURETOR

...
...
503 90 29-01
LOW SPEED NEEDLE HUS-503902901
...
503 97 44-01
NEEDLE HUS-503974401
...
503 97 42-01
THROTTLE SHAFT HUS-503974201
...
503 90 32-01
LIMITER CAP HUS-503903201
...
503 28 31-06
CARBURETOR CIQ-EL7 EPA ZAMA HUS-503283106
...
503 48 13-01
FUEL INLET SCREEN HUS-503481301
...
503 48 05-01
SCREW HUS-503480501
...
503 47 99-01
SPRING HUS-503479901
...
503 97 45-01
CHOKE SHAFT HUS-503974501
...
503 48 16-01
STARTER LEVER HUS-503481601
...
503 75 53-01
SCREW * HUS-503755301
...
503 99 43-01
SPRING HUS-503994301
...
503 47 96-01
SCREW HUS-503479601
...
503 48 00-01
PIN HUS-537020801
...
503 47 88-01
STARTER LEVER HUS-503478801
...
503 48 09-01
SCREW HUS-503480901
...
503 90 33-01
LIMITER CAP HUS-503903301
...
503 47 95-01
PUMPCOVER HUS-503479501
...
503 48 17-01
CHOKE FLAP HUS-503481701
...
503 47 90-01
SCREW HUS-503479001
...
503 90 31-01
WASHER HUS-503903101
...
503 48 03-01
GASKET METERING SIDE HUS-503480301
...
503 48 10-01
SPRING HUS-503481001
...
503 47 97-01
INLET NEEDLE HUS-503479701
...
503 48 01-01
SCREW HUS-503480101
...
503 48 18-01
SCREW HUS-503481801
...
503 90 34-01
SLEEVE HUS-503903401
...
503 80 56-01
PUMP DIAPHRAGM HUS-503805601
...
537 01 97-01
SPRING THROTTLE HUS-537019701
...
503 47 94-01
GASKET PUMPSIDE HUS-503479401
...
503 97 43-01
COVER HUS-503974301
...
503 48 08-01
SPRING HUS-503994301
...
537 07 72-01
NEEDLE HIGH SPEED HUS-537077201
...
503 48 07-01
HI-SPEED NEEDLE HUS-503480701
...
503 66 59-01
LEVER HUS-503665901
...
503 48 11-01
PLUG HUS-503481101
...
537 13 49-01
SPRING HUS-537134901
...
503 47 89-01
SPACER HUS-503478901
...
503 47 91-01
THROTTLEFLAP HUS-503479101
...
503 48 02-01
METERING DIAPHRAGM HUS-503480201
...
503 28 31-05
CARBURETOR CIQ-EL6 ZAMA HUS-503283105
...
503 47 92-01
SCREW HUS-503479201

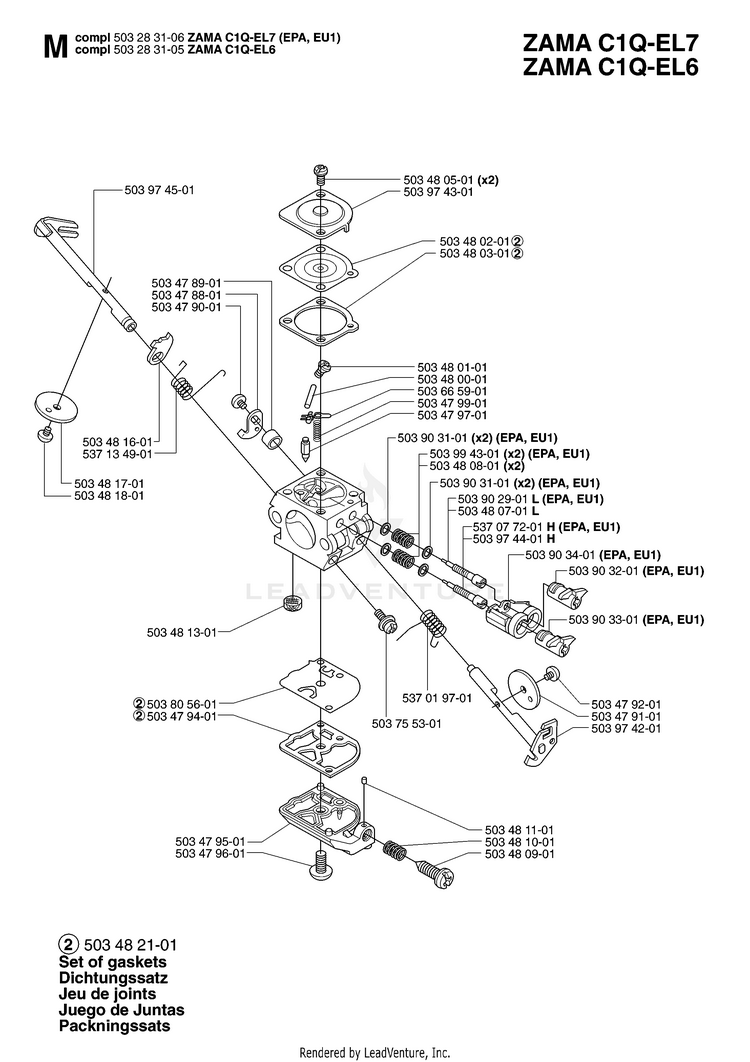

Schematic Image Zoomed
