Husqvarna 55 RANCHER (20070500001-Current) Chain Saw

Model: 55 RANCHER (20070500001-Current)

Back To Assemblies

Save Part Not Listed?
product name

CYLINDER PISTON

...
...
503 20 02-25
SCREW HUS-503200225
...
537 12 79-01
GASKET HUS-537127901
...
503 60 81-71
PISTON ASSEMBLY HUS-503608171
...
503 16 21-03
GASKET HUS-503162103
...
737 44 10-00
LOCKING RING HUS-737441000
...
503 28 90-14
PISTON RING HUS-503289014
...
503 66 54-01
DECOMPRESSION VALVE HUS-544200001
...
503 55 22-01
CYLINDER PLUG HUS-503552201
...
503 60 91-71
CYLINDER ASSY HUS-503609171
...
503 23 51-08
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
501 45 16-01
SUPPORT BUSHING HUS-501451601

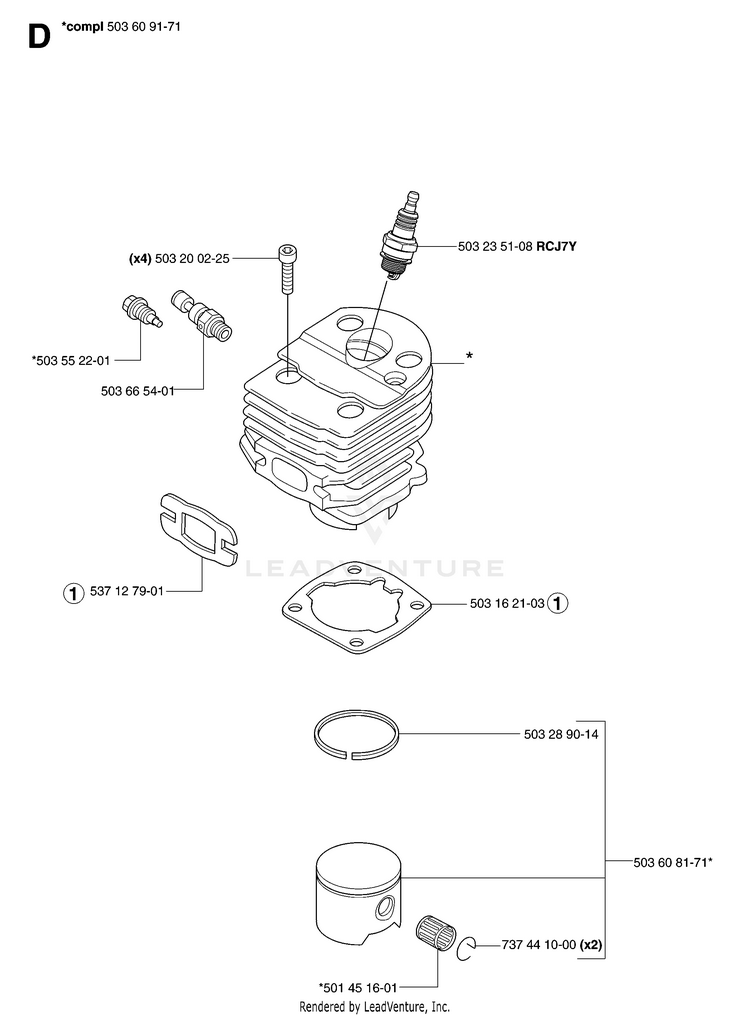

Schematic Image Zoomed
