Husqvarna 55 RANCHER (20070500001-Current) Chain Saw

Model: 55 RANCHER (20070500001-Current)

Back To Assemblies

Save Part Not Listed?
product name

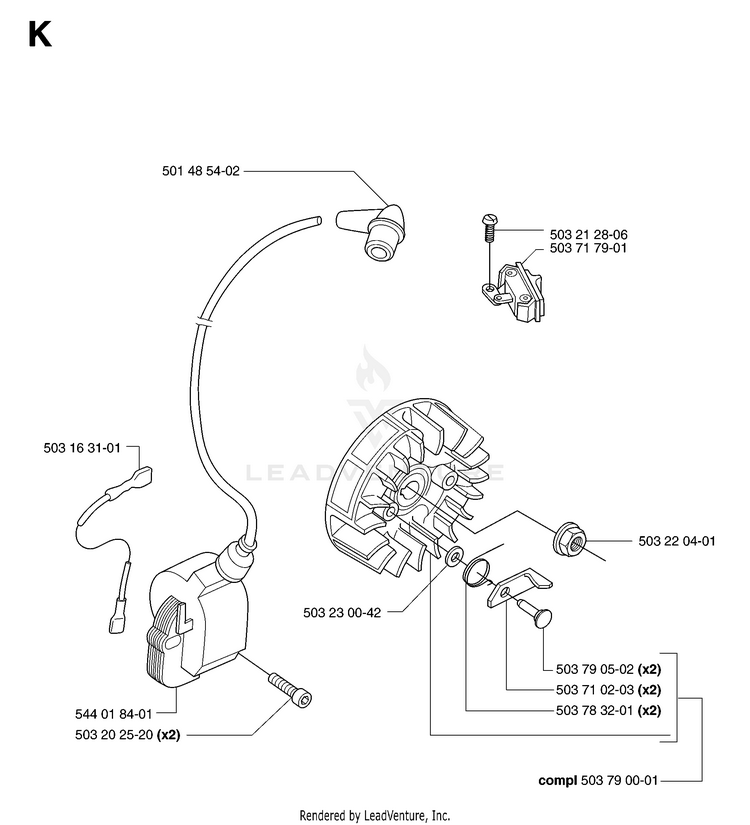

IGNITION SYSTEM

...
...
503 71 02-03
PAWL HUS-503710203
...
503 20 25-20
SCREW HUS-503202520
...
503 21 28-06
SCREW HUS-503212806
...
503 22 04-01
NUT W/ WASHER HUS-503220401
...
503 79 05-02
RIVET HUS-503790502
...
503 79 00-01
FLYWHEEL HUS-503790001
...
503 78 32-01
SPRING HUS-529271101
...
544 01 84-01
IGNITION MODULE HAS3.1.3CCN114 HUS-587329603
...
501 48 54-02
SPARK PLUG CONN. KIT HUS-501485402
...
503 16 31-01
CABLE HUS-503163101
...
503 71 79-01
SWITCH ON/OFF HUS-503717901
...
503 23 00-42
WASHER HUS-503230042
Schematic Image Zoomed
