Husqvarna 55 RANCHER (20070500001-Current) Chain Saw

Model: 55 RANCHER (20070500001-Current)

Back To Assemblies

Save Part Not Listed?
product name

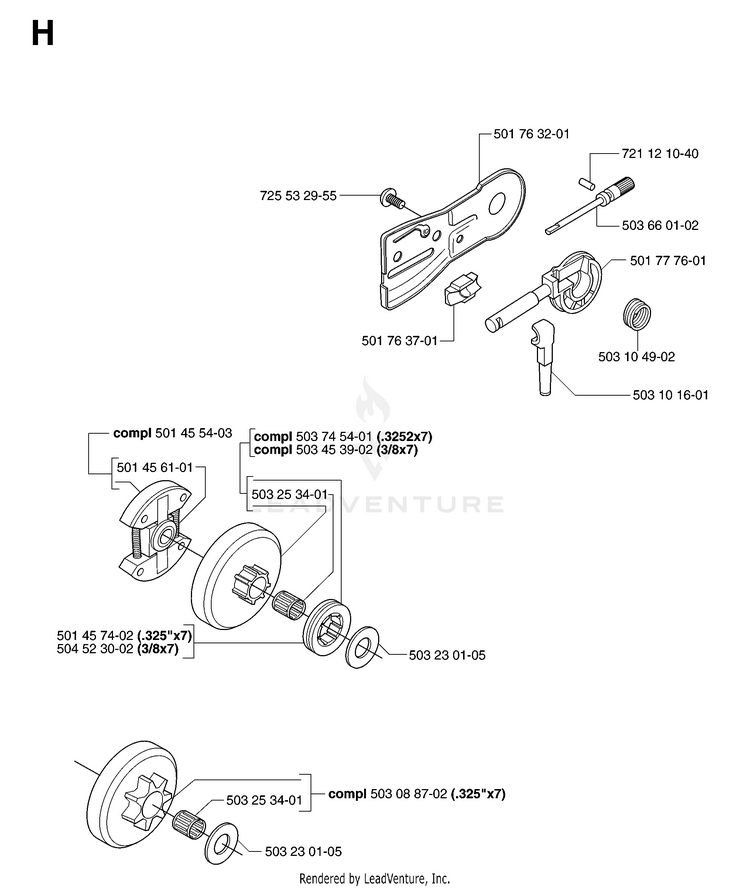

CLUTCH & OIL PUMP

...
...
503 66 01-02
PUMP PLUNGER HUS-503660102
...
503 08 87-02
CLUTCH DRUM 0.325X7 HUS-503088702
...
725 53 29-55
SCREW MC6S 5X16 HUS-725532955
...
501 76 32-01
CHAIN GUIDE PLATE HUS-501763201
...
503 23 01-05
WASHER 12.7X30 HUS-503230105
...
501 45 74-02
11892 POWER MATE RIM HUS-640200010
...
503 74 54-01
DRUM 325X7 RIM HUS-503745401
...
503 25 34-01
SUPPORT BUSHING HUS-503253401
...
503 10 49-02
PUMP DRIVE WHEEL HUS-503104902
...
501 76 37-01
PRESSURE SEAL HUS-501763701
...
501 45 61-01
SPRING HUS-501456101
...
501 77 76-01
OIL PUMP HUS-501777601
...
504 52 30-02
RIM 18720 3/8" 7T HUS-640200036
...
503 45 39-02
DRUM 3/8X7 RIM HUS-503453902
...
501 45 54-03
CLUTCH ASSY HUS-537110502
...
503 10 16-01
SUCTION HOSE CPL HUS-503101601
...
721 12 10-40
GROOVED PIN 3X20 HUS-721121040
