Husqvarna 55 RANCHER (20070500001-Current) Chain Saw

Model: 55 RANCHER (20070500001-Current)

Back To Assemblies

Save Part Not Listed?
product name

CRANKCASE

...
...
501 76 44-03
CAP HUS-501764403
...
721 12 10-40
GROOVED PIN 3X20 HUS-721121040
...
503 57 89-01
TANK LOCK HUS-503578901
...
503 21 27-16
NEEDS DESCRIPTION HUS-586505201
...
505 27 57-19
SEAL RING HUS-505275719
...
724 33 25-56
SCREW *** HUS-724332556
...
501 76 56-02
OIL CAP HUS-501765602
...
503 68 42-42
BAR BOLT HUS-503684242
...
501 54 63-01
SCREW HUS-501546301
...
501 79 50-01
FELLING DOG HUS-501795001
...
503 66 84-01
OIL TANK VENT HUS-503668401
...
503 22 62-01
PLATE NUT HUS-503226201
...
501 76 30-03
AIR CONDUCTOR HUS-501763003
...
503 20 02-16
SCREW HUS-503200216
...
503 72 98-01
AIR NOZZLE HUS-503729801
...
503 20 02-50
SCREW HUS-503207450
...
503 20 02-16
SCREW HUS-503200216
...
740 44 05-00
O-RING HUS-740440500
...
501 45 41-01
PAWL HUS-501454101
...
501 45 27-02
NUT HUS-501452702
...
501 76 22-02
CRANKCASE HUS-501762202
...
501 76 64-03
CHAIN CATCHER HUS-501766403
...
503 20 02-25
SCREW HUS-503200225
...
720 13 07-10
Pins HUS-720130752
...
503 73 04-01
AIR BAFFLE HUS-503730401

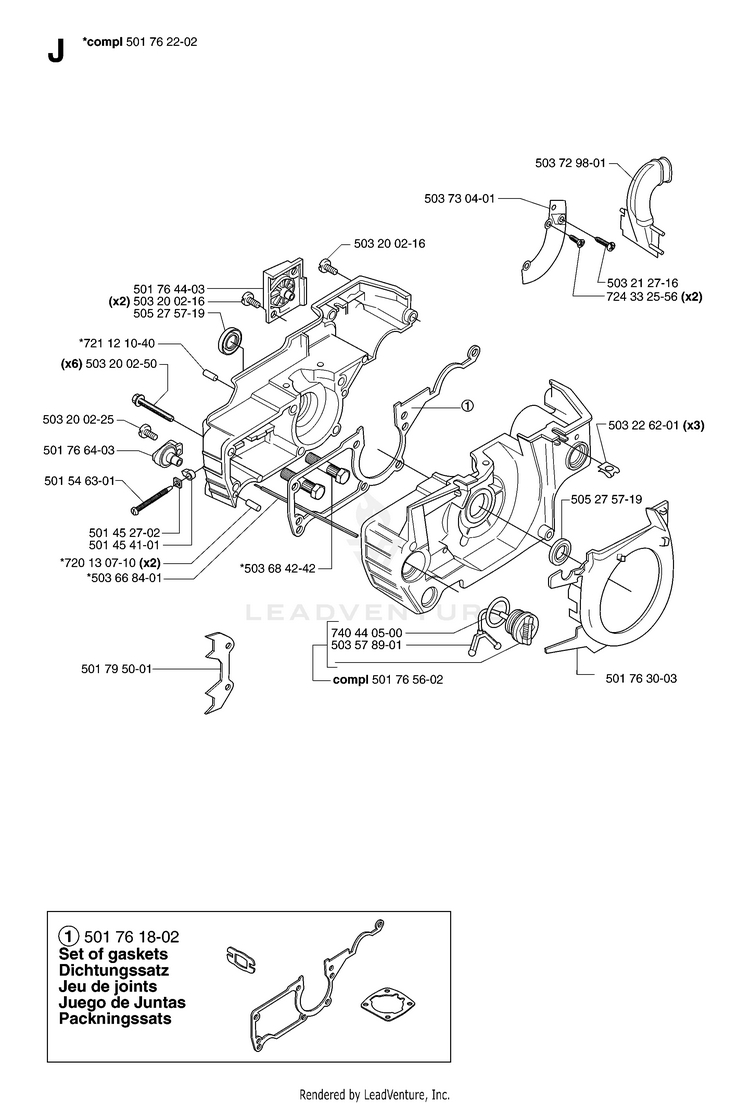

Schematic Image Zoomed
