Husqvarna 55 R 21 HVL (96145000101) (2005-02) Walk Mower

Model: 55 R 21 HVL (96145000101) (2005-02)

Back To Assemblies

Save Part Not Listed?
product name

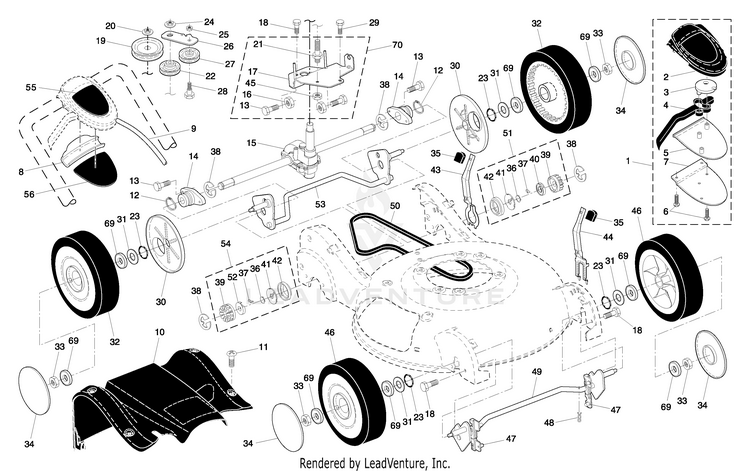

Drive Assembly

...
...
1
DRIVE CONTROL CABLE (Consists of Key Numbers 2 through 7) HUS-532196577
...
2
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
4
LEVER.BLACK HUS-532425662
...
5
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
8
EZ WALK SNAP COVER PLATE HUS-532186297
...
9
DRIVE CONTROL CABLE HUS-532196577
...
10
RP.COVER.DRIVE.REAR.21.HV.GRAY HUS-532188356
...
11
SCREW HUS-532194188
...
12
RING.RETAINING. HUS-583607301
...
13
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
14
BEARING.SUPPORT.ASSEM HUS-532187120
...
15
TRANSMISSION.21.HI-VAC.EZ (See Breakdown) HUS-532188294
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
17
BRACKET, TRANSMISSION HUS-532189629
...
18
SCREW HUS-532163409
...
19
PULLEY HUS-532194128
...
20
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
21
BOLT, IDLER HUS-532188611
...
22
KIT.PULLEY.IDLER. HUS-532195326
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
26
KIT.PULLEY.IDLER.HI-VAC. HUS-532195327
...
27
IDLER PULLEY HUS-532166043
...
28
SHOULDER BOLT HUS-532160829
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
30
DUST COVER, WHEEL HUS-532183457
...
31
WASHER.FLAT.1/2 HUS-532088348
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
35
KNOB.SELECTOR.SPRG.H-GRY (2 2) HUS-532185994
...
36
SPRING, TORSION HUS-532188291
...
37
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
38
E-RING 7/16 RE HUS-812000058
...
39
GEAR, PINION HUS-532175103
...
40
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
41
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
42
SEAL.PINION HUS-532184172
...
43
LEVER, SELECTOR, HEIGHT, REAR HUS-532188508
...
44
SPRING.SELECTOR.FRONT HUS-532188509
...
46
WHEEL.9X2.25.LP.TIGER.BLK HUS-532192232
...
47
BUSHING.FRONT.TORQUE.SHAFT HUS-532183438
...
48
SPRING RETAINER HUS-532169675
...
49
SHAFT.ASM.FRONT.TORQUE HUS-532192431
...
50
BELT.DRIVE.EZ.WALK.HI-VAC HUS-532183688
...
51
KIT.PINION.ASM HUS-532414860
...
52
RETAINER, DRIVE, RH HUS-532175102
...
53
AXLE.ASM.REAR.TORQUE.BZP HUS-532192138
...
54
KIT.PINION.ASM HUS-532414860
...
55
DECAL.DRIVE.CONTROL.HV HUS-532189074
...
56
DECAL HUS-532185913
...
69
BEARING.8".WHEEL HUS-532751068
