Husqvarna 55 (2000-05) Chain Saw

Model: 55 (2000-05)

Back To Assemblies

Save Part Not Listed?
product name

Chain Brake

...
...
501768001
PIVOT SLEEVE R HUS-501768001
...
501768101
PIVOT SLEEVE L HUS-501768101
...
501874202
COVER HUS-501874202
...
501874701
SPRING HUS-501874701
...
501875301
KNEE-JOINT HUS-501875301
...
501875401
SPRING HUS-501875401
...
503152101
COVERING PLATE HUS-503152101
...
503202616
SCREW HUS-503202616
...
503212810
SCREW HUS-503212810
...
503220001
NUT M8 FLANGE HUS-503220001
...
503493201
CLUTCH COVER HUS-503493201
...
503498103
CHAINBRAKE HUS-503498103
...
503718701
BRAKE BAND HUS-503718701
...
503802701
PIVOT PIN HUS-503802701
...
503892701
HAND GUARD HUS-503892701
...
506164801
SPRING HUS-506164801
...
720123300
PIN 3X10 HUS-720123300
...
721425250
SPIRAL PIN 4X12 HUS-721425250
...
735310820
E-RING 4 HUS-735310820

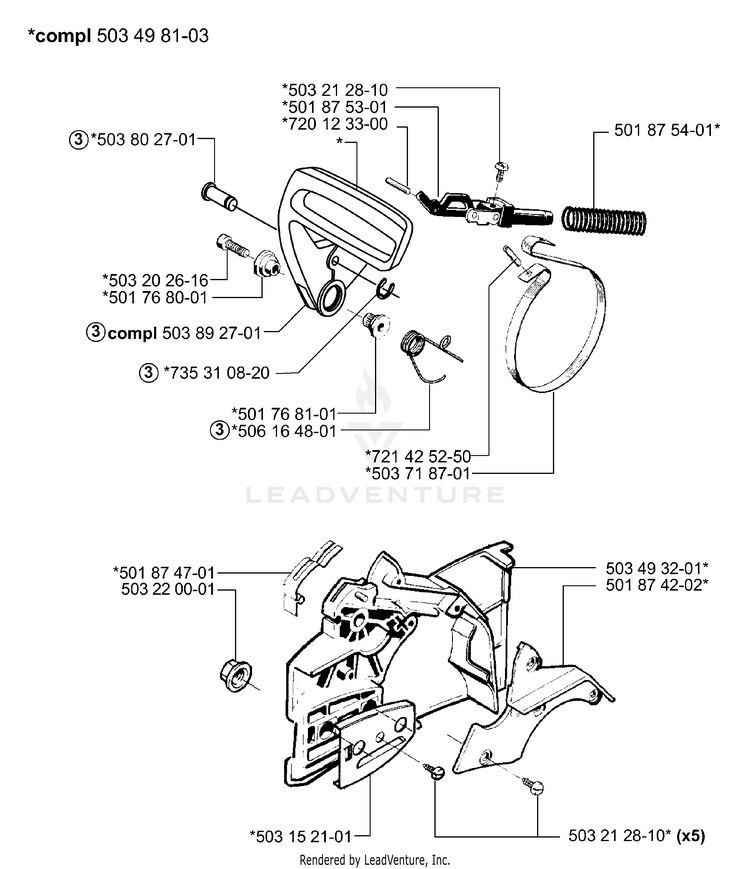

Schematic Image Zoomed
