Husqvarna 545 Chain Saw

Model: 545

Back To Assemblies

Save Part Not Listed?
product name

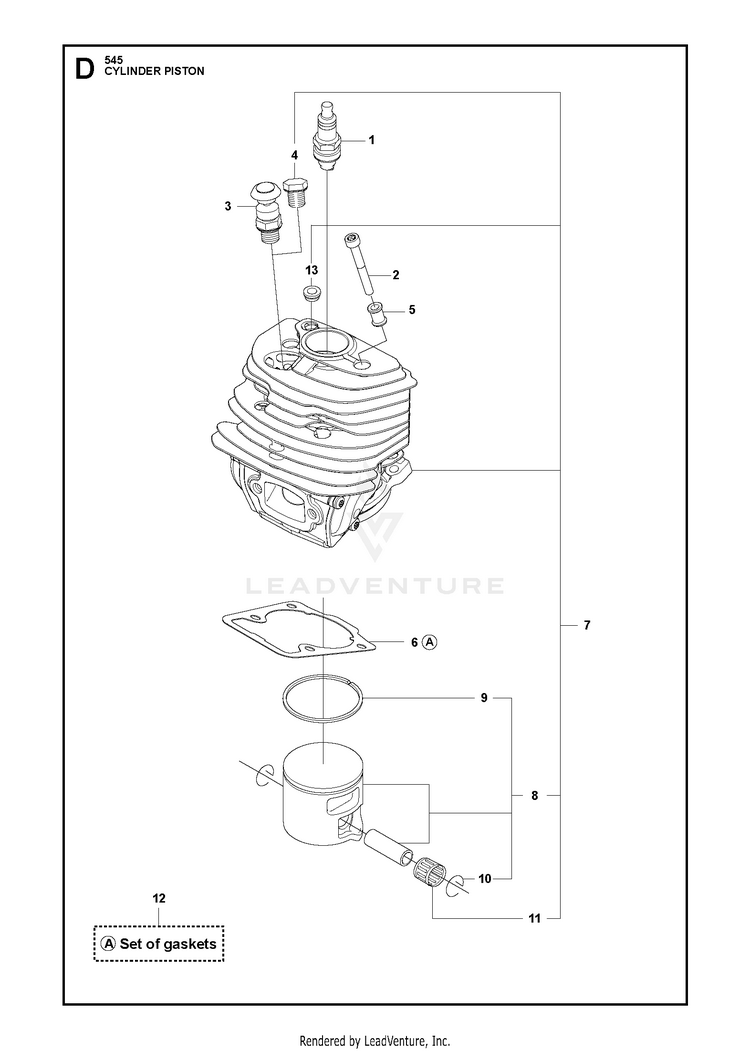

CYLINDER PISTON

...
...
1
CMR6H NGK SPARK PLUG HUS-531008615
...
8
PISTON ASSY D43 HUS-577047008
...
5
SLEEVE HUS-576717602
...
12
GASKET KIT 50CC A=Set of gaskets From s/n 20182000121 - HUS-577766604
...
11
SUPPORT BUSHING HUS-503256302
...
13
BUSHING HUS-520291101
...
3
DECOMPRESSION VALVE HUS-575276901
...
4
CYLINDER PLUG HUS-503552201
...
2
SCREW HEXABOULAR SOCKET HEAD C HUS-582392701
...
10
LOCKING RING HUS-737441000
...
6
GASKET HUS-525315801
...
12
GASKET KIT 50CC A=Set of gaskets - Up to s/n 20182000120. HUS-577766603
...
9
PISTON RING HUS-577958301
...
7
CYLINDER-PISTON ASSY HUS-577764708
