Husqvarna 545 Chain Saw

Model: 545

Back To Assemblies

Save Part Not Listed?
product name

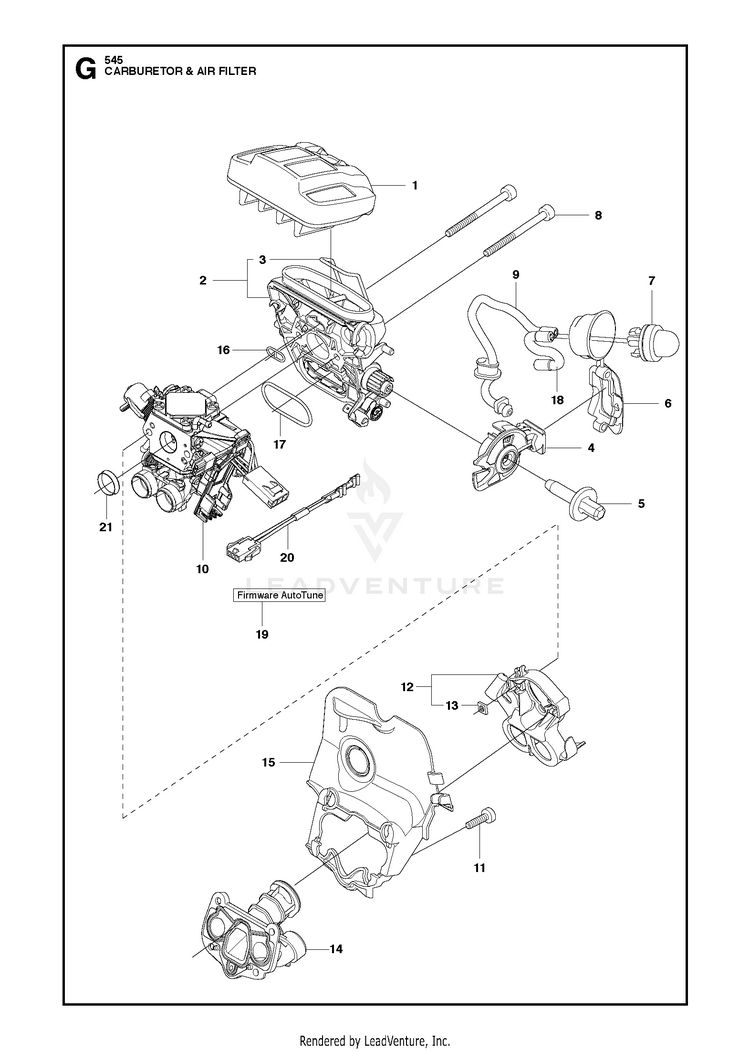

CARBURETOR & AIR FILTER

...
...
19
NEEDS DESCRIPTION Download from your local supportsite HUS-.
...
4
CHOKE CONTROL ASSY CHOKE/STOP HUS-510017202
...
1
AIR FILTER ASSY NYLON 44 µm yellow HUS-522675405
...
3
SHACKLE HUS-522907301
...
1
AIR FILTER FELT white HUS-522675406
...
1
AIR FILTER ASSY NYLON 25 µm orange HUS-522675407
...
17
SEALING HUS-525619001
...
9
FUEL HOSE From s/n 20153900097 HUS-587645404
...
20
WIRING ASSY HUS-577536401
...
18
FUEL HOSE HUS-523056801
...
15
INTERMEDIATE WALL HUS-522951001
...
10
CARBURETTOR KIT AT-7C HUS-587084807
...
5
SCREW HUS-505156201
...
12
FLANGE HUS-523064002
...
8
SCREW ITXSCM HUS-574353503
...
14
INLET PIPE ASSY HUS-525500003
...
11
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
7
AIR PURGE BUBBLE HUS-503936601
...
13
NUT HUS-503226503
...
1
AIR FILTER NYLON 80 µm black HUS-522675404
...
2
FILTER HOLDER ASSY HUS-574198903
...
6
SEALING HUS-525588101
...
21
SUPPORT SLEEVE HUS-585195001
...
9
VENTILATING HOSE,KIT Up to s/n 20153900096 HUS-589357101
...
16
SEALING HUS-525619201
