Husqvarna 545 Chain Saw

Model: 545

Back To Assemblies

Save Part Not Listed?
product name

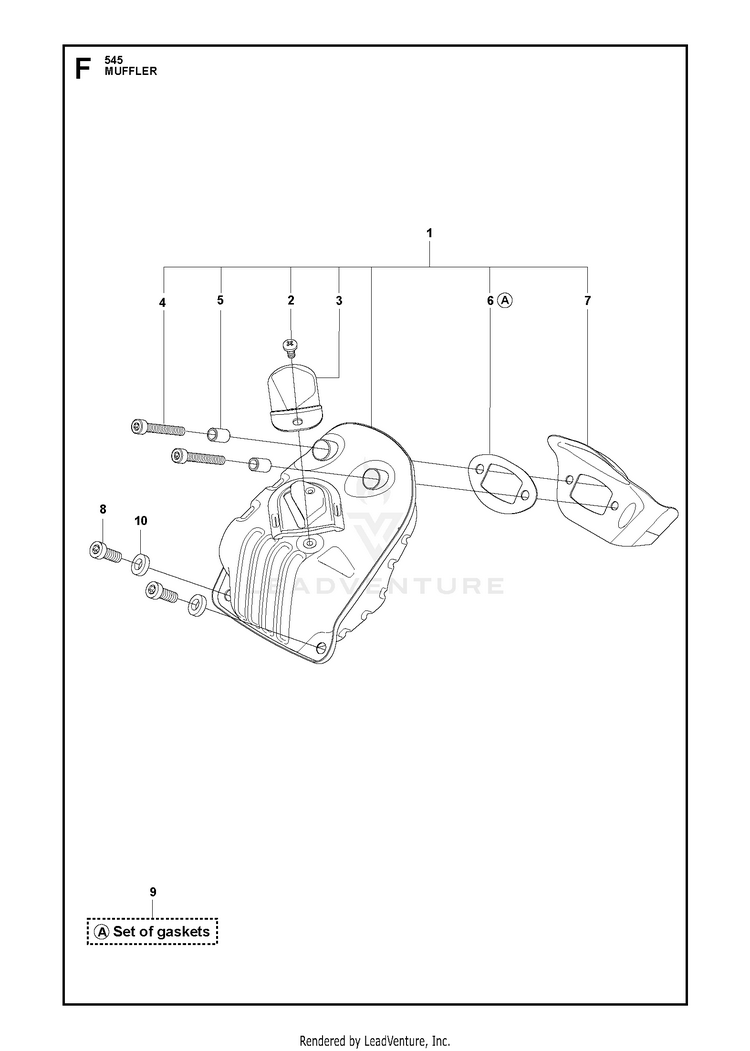

MUFFLER

...
...
4
SCREW ITXSCM M6X35 T27 12.9 T HUS-525825104
...
2
SCREW HUS-724128759
...
3
SPARK ARRESTER A004 50 CC HUS-576890201
...
5
SLEEVE HUS-577656301
...
9
GASKET KIT 50CC A=Set of gaskets From s/n 20182000121 - HUS-577766604
...
7
HEAT DEFLECTOR HUS-523052501
...
10
WASHER HUS-577902201
...
9
GASKET KIT 50CC A=Set of gaskets - Up to s/n 20182000120. HUS-577766603
...
1
MUFFLER KIT HUS-523052604
...
8
SCREW ITXSCM M6X20 T27 10.9 Z HUS-525762501
...
6
GASKET MUFFLER HUS-523052401
