Husqvarna 545 Chain Saw

Model: 545

Back To Assemblies

Save Part Not Listed?
product name

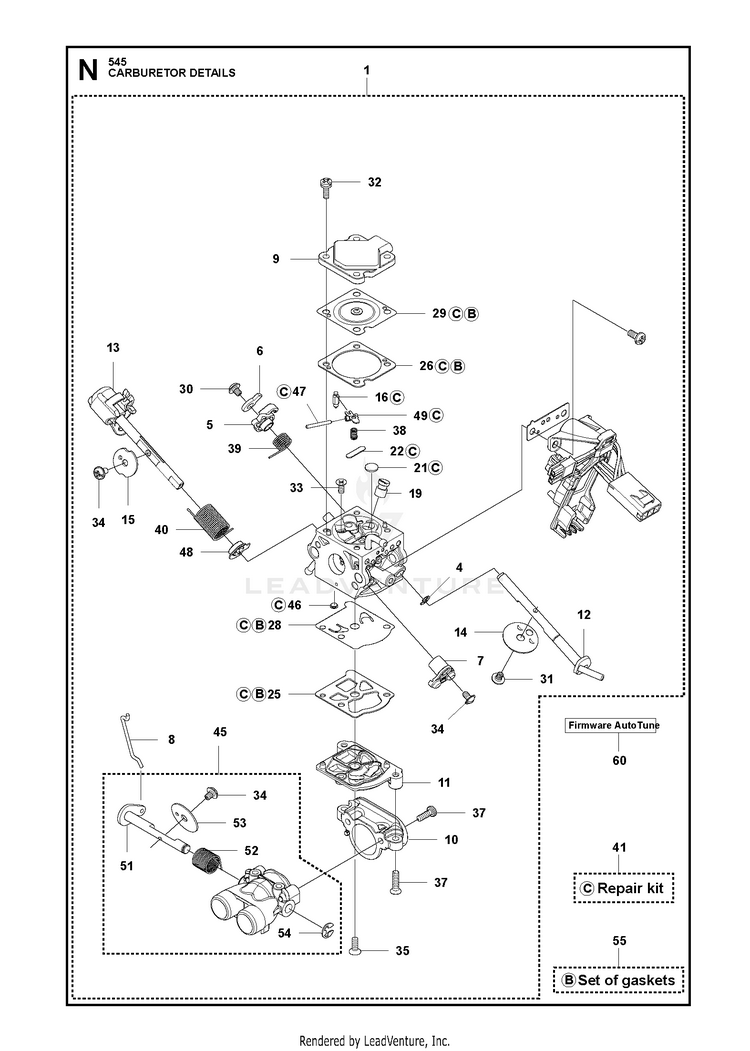

CARBURETOR DETAILS

...
...
14
VALVE HUS-574358501
...
35
SCREW HUS-574359001
...
6
LEVER HUS-576618501
...
15
VALVE THROTTLE HUS-574357501
...
53
VALVE HUS-576619001
...
30
SCREW HUS-501468701
...
22
PLUG HUS-502846901
...
31
SCREW HUS-501468701
...
51
SHAFT ASSY AIR THROTTLE HUS-586767401
...
9
COVER HUS-574358101
...
1
CARBURETTOR KIT AT-7C HUS-587084807
...
12
SHAFT ASSY HUS-574358401
...
41
REPAIR KIT - Up to s/n 20182399999 HUS-577666101
...
13
SHAFT HUS-574358201
...
26
GASKET HUS-574358601
...
5
LEVER HUS-574357701
...
45
THROTTLE VALVE ASSY HUS-579323101
...
55
DIAPHRAGM ASSY KIT AT-7C From s/n 20182400001- For AT-7C. HUS-596570801
...
29
DIAPHRAGM HUS-587071601
...
54
CLIP HUS-503799501
...
48
BUSHING HUS-574359601
...
10
INLET HUS-575794801
...
28
DIAPHRAGM HUS-577016601
...
49
LEVER HUS-502847401
...
38
SPRING HUS-503562401
...
55
GASKET KIT - Up to s/n 20182399999 HUS-576666501
...
11
COVER HUS-575794701
...
25
GASKET HUS-504130906
...
7
THROTTLE LEVER ASSY HUS-577219201
...
32
SCREW HUS-537003101
...
39
SPRING HUS-574359301
...
46
FUEL INLET SCREEN HUS-501666101
...
8
LINK HUS-574357901
...
34
SCREW HUS-544111501
...
37
SCREW HUS-576618901
...
19
NOZZLE ASSY HUS-576618801
...
52
SPRING HUS-574357601
...
60
NEEDS DESCRIPTION Download from your local supportsite HUS-.
...
40
SPRING HUS-574359401
...
33
SCREW HUS-502847101
...
16
INLET NEEDLE HUS-503563401
...
4
RETAINER HUS-577262901
...
21
PLUG WELCH HUS-504790801
...
47
FULCRUM PIN HUS-505520125
