Husqvarna 545 Chain Saw

Model: 545

Back To Assemblies

Save Part Not Listed?
product name

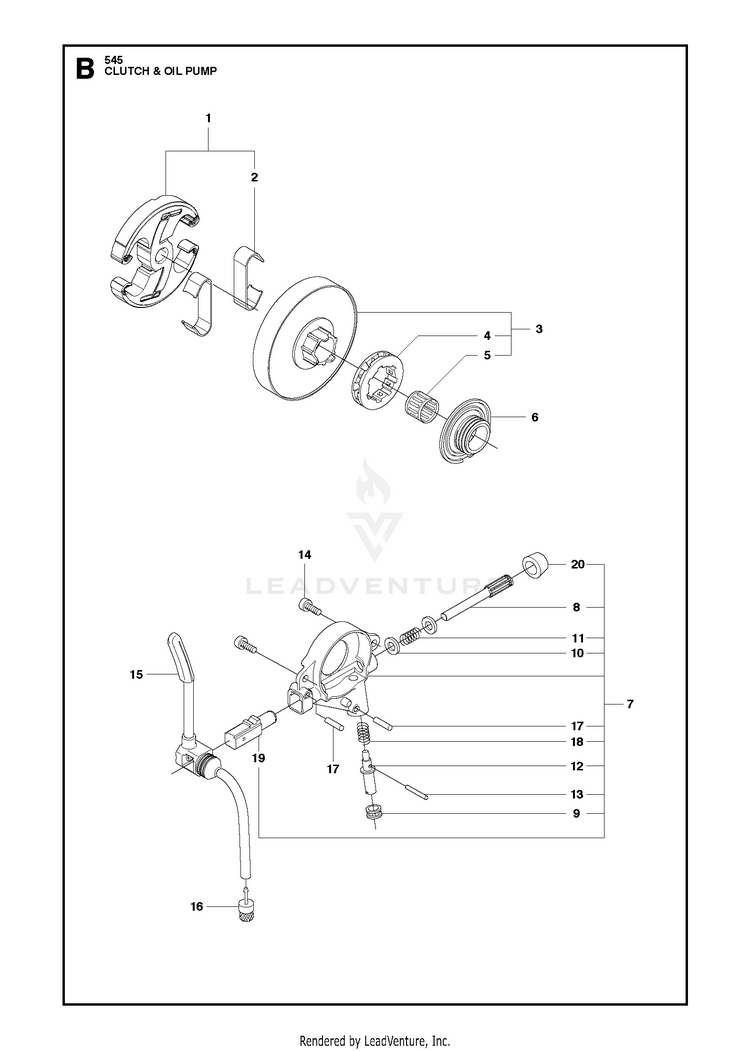

CLUTCH & OIL PUMP

...
...
5
SUPPORT BUSHING HUS-503253401
...
13
PIN HUS-721116430
...
18
SPRING HUS-503891501
...
9
CASING HUS-505200301
...
11
SPRING HUS-503891601
...
20
PLUG HUS-503624901
...
19
PUMP CYLINDER HUS-505200101
...
14
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
8
PUMP PISTON 50CC HUS-505200204
...
12
ADJUSTING SCREW HUS-505157001
...
1
Clutches HUS-577518202
...
16
OIL PLUMMET HUS-504710003
...
6
WORM WHEEL HUS-505200801
...
3
CLUTCH DRUM ASSY RIM .325"7T ".325""x7" HUS-575261005
...
2
SPRING HUS-537359101
...
15
OIL HOSE HUS-505200401
...
17
PIN 3X10 HUS-720123300
...
4
11892 POWER MATE RIM ".325""x7" HUS-640200010
...
10
WASHER HUS-503230060
...
7
OIL PUMP ASSY HUS-505199904
