Husqvarna 545 Chain Saw

Model: 545

Back To Assemblies

Save Part Not Listed?
product name

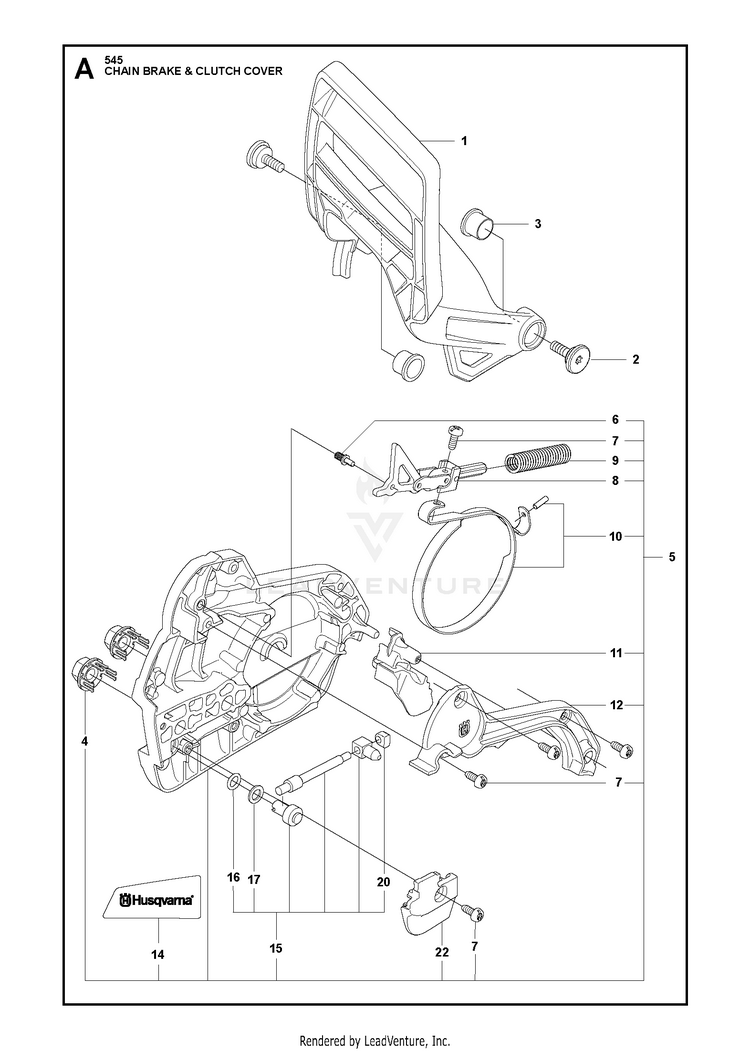

CHAIN BRAKE & CLUTCH COVER

...
...
5
CLUTCH COVER ASSY 555 AND 545 HUS-501846104
...
17
WASHER HUS-503230063
...
6
PIN HUS-503751801
...
14
LABEL HUS-523058001
...
7
SCREW HUS-526221801
...
2
SCREW HUS-526834501
...
1
HAND GUARD HUS-522677501
...
15
CHAIN TENSIONER KIT HUS-575260404
...
20
SLEEVE HUS-537017401
...
8
KNEE JOINT ASSY HUS-505199301
...
4
NUT RETAINER ASSY HUS-505197301
...
16
O-RING HUS-740480702
...
3
BUSHING HUS-577780201
...
10
BRAKE BAND HUS-505199502
...
9
SPRING HUS-503908301
...
12
COVER HUS-505199703
...
11
GUARD HUS-505201601
...
22
CHAIN GUIDE HUS-505199801
