product name

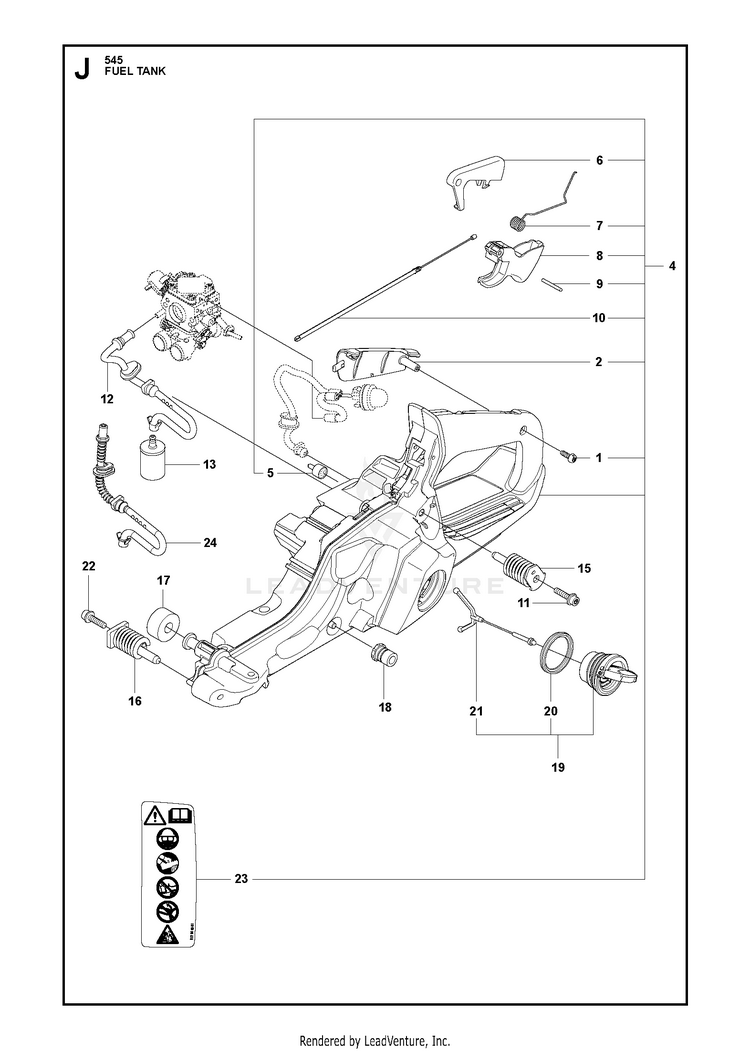

Husqvarna 545 Chain Saw

Model: 545

Back To Assemblies

Save Part Not Listed?
product name

FUEL TANK

...
...
10
THROTTLE CABLE ASSY HUS-579482401
...
2
HANDLE INSERT HUS-504106301
...
11
SCREW ITXSCFT HUS-525798102
...
12
FUEL HOSE Up to AT-7A HUS-573993503
...
7
SPRING HUS-544099901
...
5
FUEL TANK VENT HUS-501152901
...
20
SEALING HUS-589241101
...
6
THROTTLE LOCKOUT HUS-544099801
...
21
TANK LOCK HUS-503578901
...
23
DECAL HUS-577844301
...
22
SCREW HUS-525798103
...
17
DEFLECTION LIMITER HUS-523085501
...
9
PIN HUS-720182520
...
19
TANK CAP ASSY HUS-522620003
...
15
ANTIVIBRATION ELEMENT WITH DEF HUS-578227403
...
16
ANTIVIBRATION ELEMENT FRONT HUS-505128702
...
18
LATERAL SUPPORT HUS-501007601
...
24
FUEL HOSE ASSY FUEL HOSE ASSY From AT-7B HUS-529578202
...
8
THROTTLE HUS-505157701
...
4
FUEL TANK ASSY 50CC ORANGE HUS-577790203
...
1
SCREW HUS-503212813
...
13
KIT FUEL FILTER HUS-591375401
