Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

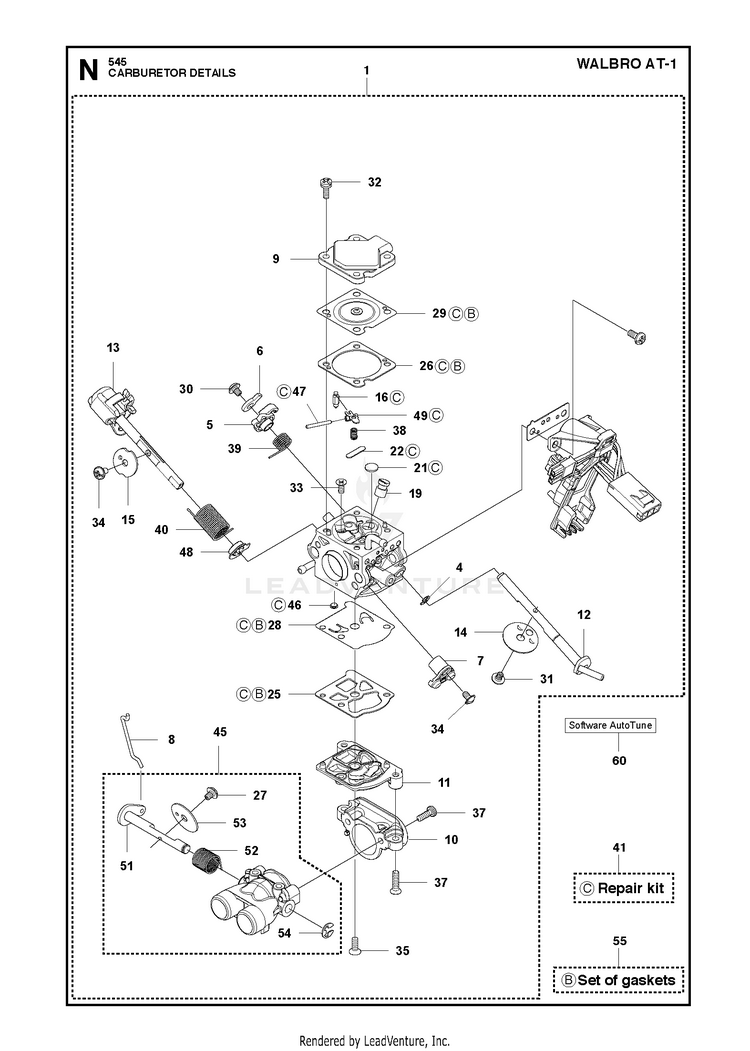

CARBURETOR DETAILS

...
...
1
CARBURETTOR KIT AT-1 HUS-587084807
...
4
RETAINER . 1 HUS-577262901
...
5
LEVER . 1 HUS-574357701
...
6
LEVER . 1 HUS-576618501
...
7
THROTTLE LEVER ASSY . 1 HUS-577219201
...
8
LINK . 1 HUS-574357901
...
9
COVER . 1 HUS-574358101
...
10
INLET . 1 HUS-575794801
...
11
COVER . 1 HUS-575794701
...
12
SHAFT ASSY . 1 HUS-574358401
...
13
SHAFT . 1 HUS-574358201
...
14
VALVE . 1 HUS-574358501
...
15
VALVE THROTTLE . 1 HUS-574357501
...
16
INLET NEEDLE . 1 HUS-503563401
...
19
NOZZLE ASSY HUS-576618801
...
21
PLUG WELCH . 1 HUS-504790801
...
22
PLUG . 1 HUS-502846901
...
25
GASKET . 1 HUS-504130906
...
26
GASKET . 1 HUS-574358601
...
27
GASKET . 1 HUS-574358701
...
28
DIAPHRAGM . 1 HUS-577016601
...
29
DIAPHRAGM . 1 HUS-587071601
...
30
SCREW . 1 HUS-501468701
...
31
SCREW . 1 HUS-501468701
...
32
SCREW . 1 HUS-537003101
...
33
SCREW . 1 HUS-502847101
...
34
SCREW . 1 HUS-544111501
...
35
SCREW . 1 HUS-574359001
...
37
SCREW . 1 HUS-576618901
...
38
SPRING . 1 HUS-503562401
...
39
SPRING . 1 HUS-574359301
...
40
SPRING . 1 HUS-574359401
...
41
REPAIR KIT HUS-577666101
...
45
THROTTLE VALVE ASSY . 1 HUS-579323101
...
46
FUEL INLET SCREEN . 1 HUS-501666101
...
47
FULCRUM PIN . 1 HUS-505520125
...
48
BUSHING . 1 HUS-574359601
...
49
LEVER . 1 HUS-502847401
...
51
SHAFT ASSY . 1 HUS-574357401
...
52
SPRING . 1 HUS-574357601
...
53
VALVE . 1 HUS-576619001
...
54
CLIPS . 1 HUS-502119801
...
55
GASKET KIT HUS-576666501
...
60
Download from your local supportsite HUS-TBD
