Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

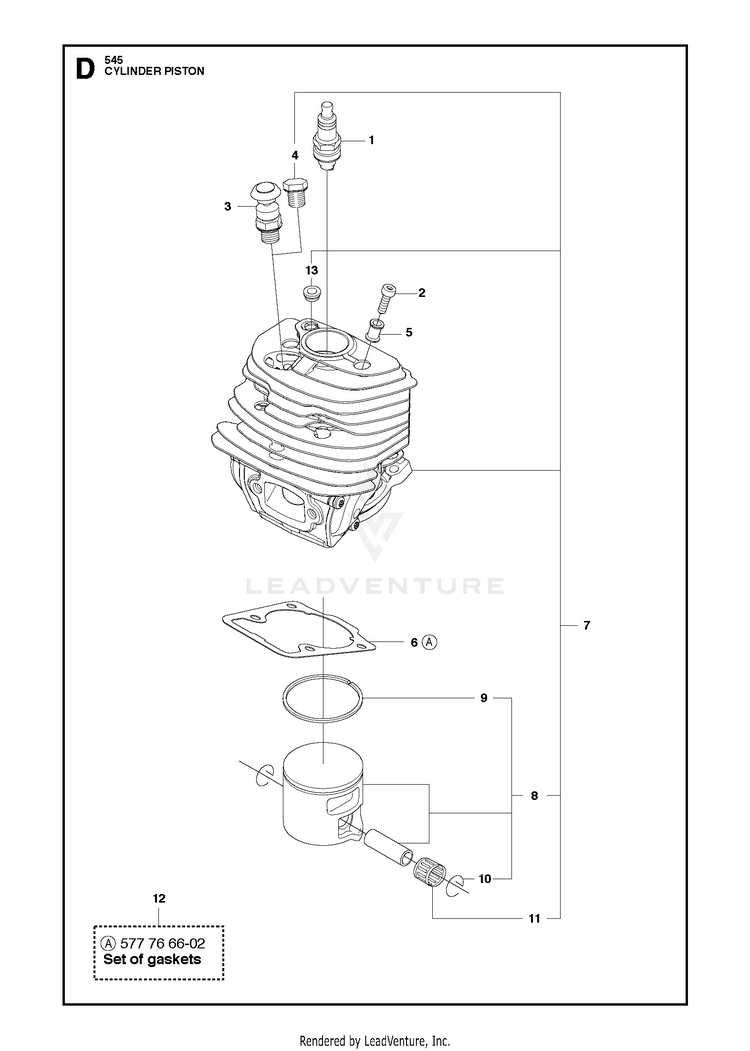

CYLINDER PISTON

...
...
1
CMR6H NGK SPARK PLUG HUS-531008615
...
2
SCREW MC6S 5X35 HUS-725533755
...
3
DECOMPRESSION VALVE HUS-575276901
...
4
CYLINDER PLUG HUS-503552201
...
5
SLEEVE HUS-576717602
...
6
GASKET . 12 HUS-525315801
...
7
CYLINDER-PISTON ASSY HUS-577764708
...
8
PISTON ASSY D43 . 7 HUS-577047008
...
9
PISTON RING . 8 7 HUS-577958301
...
10
LOCKING RING . 8 7 HUS-737441000
...
11
SUPPORT BUSHING . 7 HUS-501451601
...
12
GASKET KIT 50CC A set of gaskets HUS-577766603
...
13
BUSHING . 7 HUS-520291101
