product name

Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?

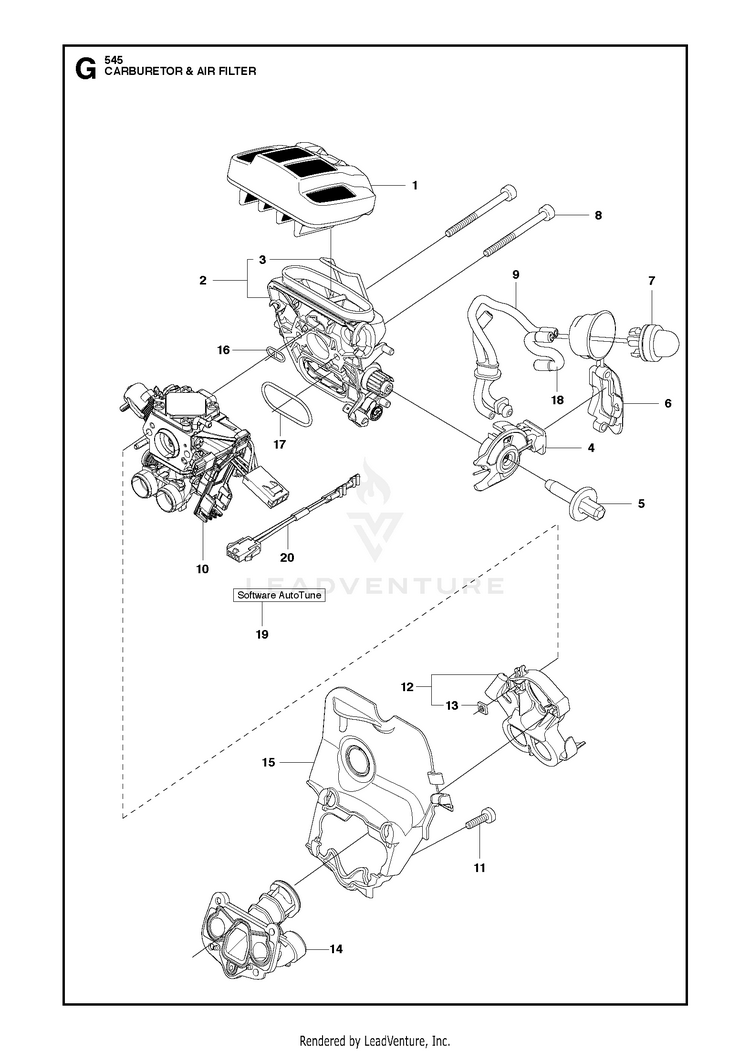

product name

CARBURETOR AIR FILTER

...
...
1
AIR FILTER NYLON 80 m black HUS-522675404
...
1
AIR FILTER ASSY NYLON 44 m yellow HUS-522675405
...
1
AIR FILTER FELT white HUS-522675406
...
2
FILTER HOLDER ASSY HUS-574198903
...
3
SHACKLE . 2 HUS-522907301
...
4
CHOKE CONTROL ASSY CHOKE/STOP HUS-510017202
...
5
SCREW HUS-505156201
...
6
SEALING HUS-525588101
...
7
AIR PURGE BUBBLE HUS-503936601
...
8
SCREW HUS-503202550
...
9
VENTILATING HOSE,KIT HUS-589357101
...
10
CARBURETTOR KIT HUS-587084807
...
11
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
12
FLANGE HUS-523064002
...
13
NUT . 12 HUS-503226503
...
14
INLET PIPE ASSY HUS-525500003
...
15
INTERMEDIATE WALL HUS-522951001
...
16
SEALING HUS-525619201
...
17
SEALING HUS-525619001
...
18
FUEL HOSE HUS-523056801
...
19
Download from your local supportsite HUS-TBD
...
20
WIRING ASSY HUS-577536401
