product name

Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

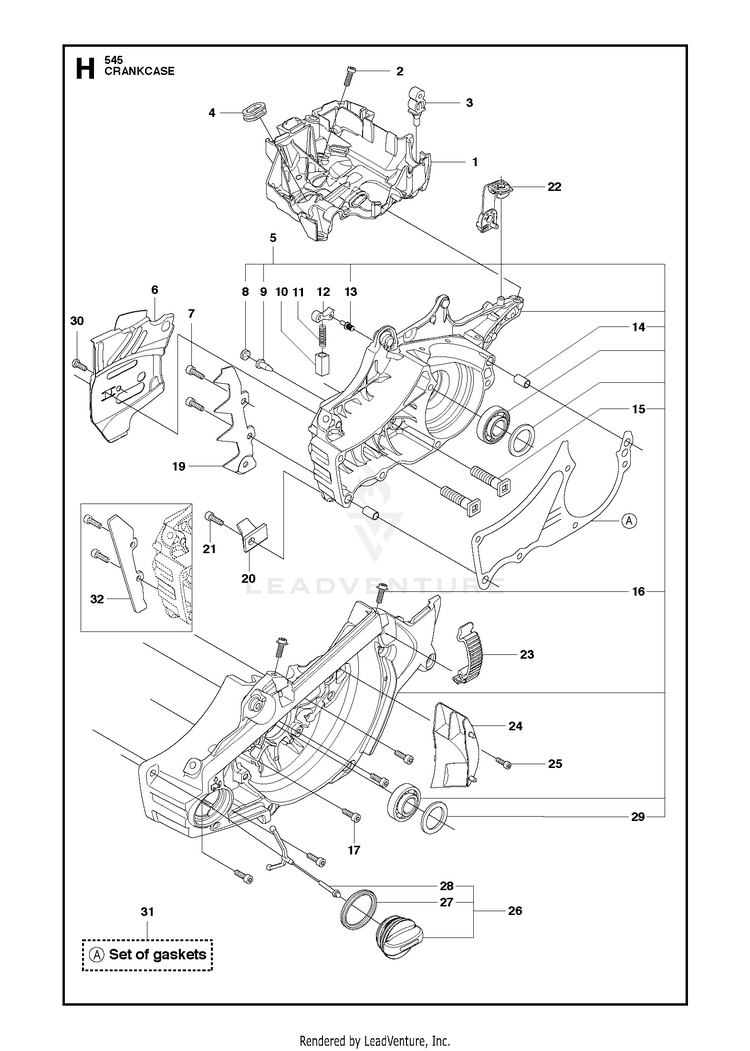

CRANKCASE

...
...
1
CARBURETTOR AREA BASE HUS-525403201
...
2
SCREW HUS-503200216
...
3
DAMPNER HUS-597909701
...
4
GROMMET HUS-537088301
...
5
CRANKCASE ASSY HUS-577834702
...
6
CHAIN GUIDE PLATE HUS-522742801
...
7
SCREW HUS-503212616
...
8
SINTERED BRONZE FILTER . 5 HUS-537403502
...
9
VALVE-CHECK (DUCKBILL) . 5 HUS-530026119
...
10
GUIDE HUS-537210701
...
11
LOCK SPRING HUS-503436501
...
12
CATCH HUS-505201201
...
13
PIN . 5 HUS-503751801
...
14
GUIDE BUSHING . 5 HUS-593806001
...
15
BAR BOLT . 5 HUS-505217301
...
16
SCREW IHSCM . 5 HUS-505111501
...
17
SCREW MC6S 5X25 HUS-725533355
...
19
SPIKE HUS-578400501
...
20
CHAIN CATCHER HUS-537377902
...
21
SCREW HUS-503218876
...
22
DEFLECTION LIMITER HUS-505125801
...
23
BUCKLE ORANGE HUS-503894701
...
24
AIR NOZZLE HUS-588059201
...
25
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
26
TANK CAP ASSY HUS-577878603
...
27
SEALING . 26 HUS-589241101
...
28
TANK LOCK . 26 HUS-503578901
...
29
RADIAL SEAL . 5 HUS-525391201
...
30
SCREW HUS-503212813
...
31
GASKET KIT 50CC A set of gaskets HUS-577766603
...
32
BUMPER, BAG HUS-577887201
Schematic Image Zoomed
