Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?

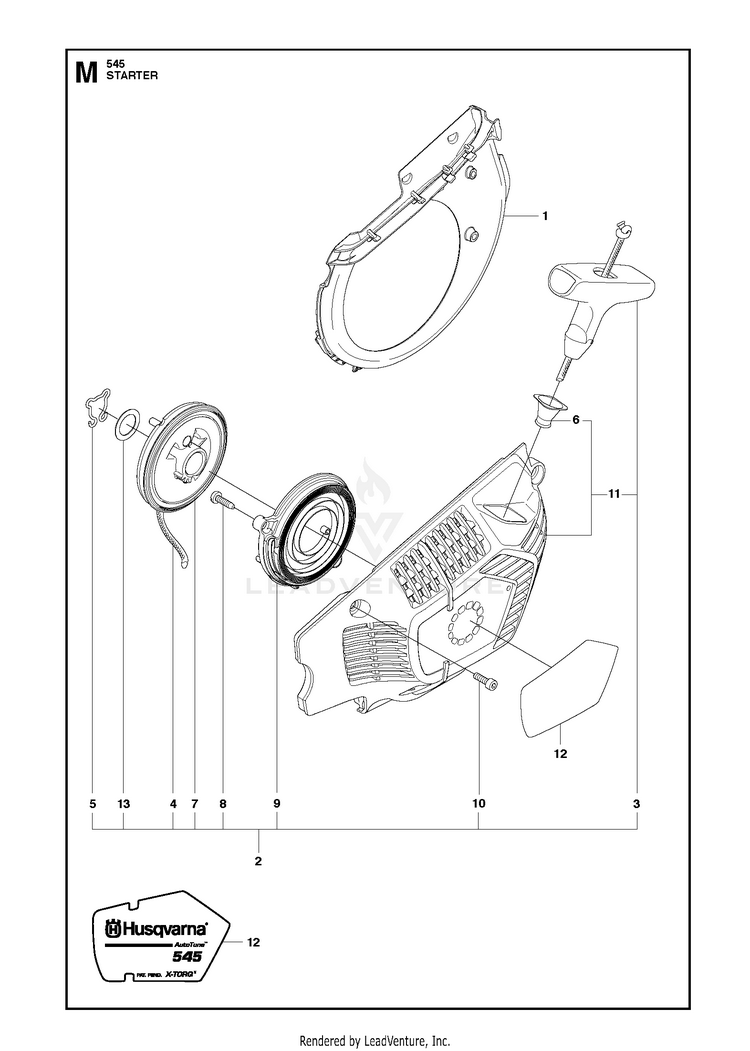

product name

STARTER

...
...
1
COOLING AIR CONDUCTOR HUS-522796201
...
2
STARTER ASSY HUS-588415103
...
3
HANDLE . 2 HUS-537232501
...
4
STARTER ROPE . 2 HUS-505305125
...
5
CLIPS . 2 HUS-575857601
...
6
SLEEVE . 2 11 HUS-537283201
...
7
STARTER PULLEY ASSY . 2 HUS-505158101
...
8
SCREW . 2 HUS-503212813
...
9
SPRING CASSETTE ASSEMBLY . 2 HUS-598750302
...
10
SCREW.CIHPANMO M5X19 10.9 . 2 HUS-544080301
...
11
STARTER HOUSING ASSY . 2 HUS-588415001
...
12
LABEL HUS-523083201
...
13
WASHER . 2 HUS-505158501
