Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?

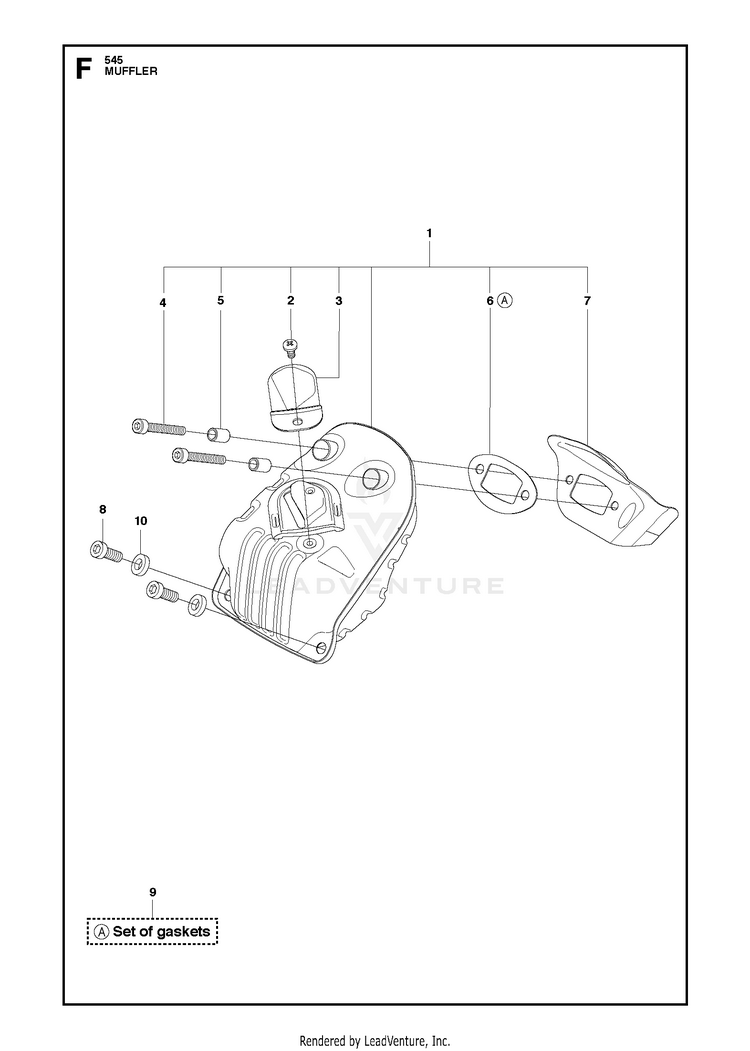

product name

MUFFLER

...
...
1
MUFFLER KIT HUS-523052603
...
2
SCREW . 1 HUS-724128759
...
3
SPARK ARRESTER A004 50 CC . 1 HUS-576890201
...
4
SCREW . 1 HUS-725537655
...
5
SLEEVE . 1 HUS-577656301
...
6
GASKET MUFFLER . 1 9 HUS-523052401
...
7
HEAT DEFLECTOR . 1 HUS-523052501
...
8
SCREW HUS-503207320
...
9
GASKET KIT 50CC A set of gaskets HUS-577766603
...
10
WASHER HUS-577902201
Schematic Image Zoomed
