Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

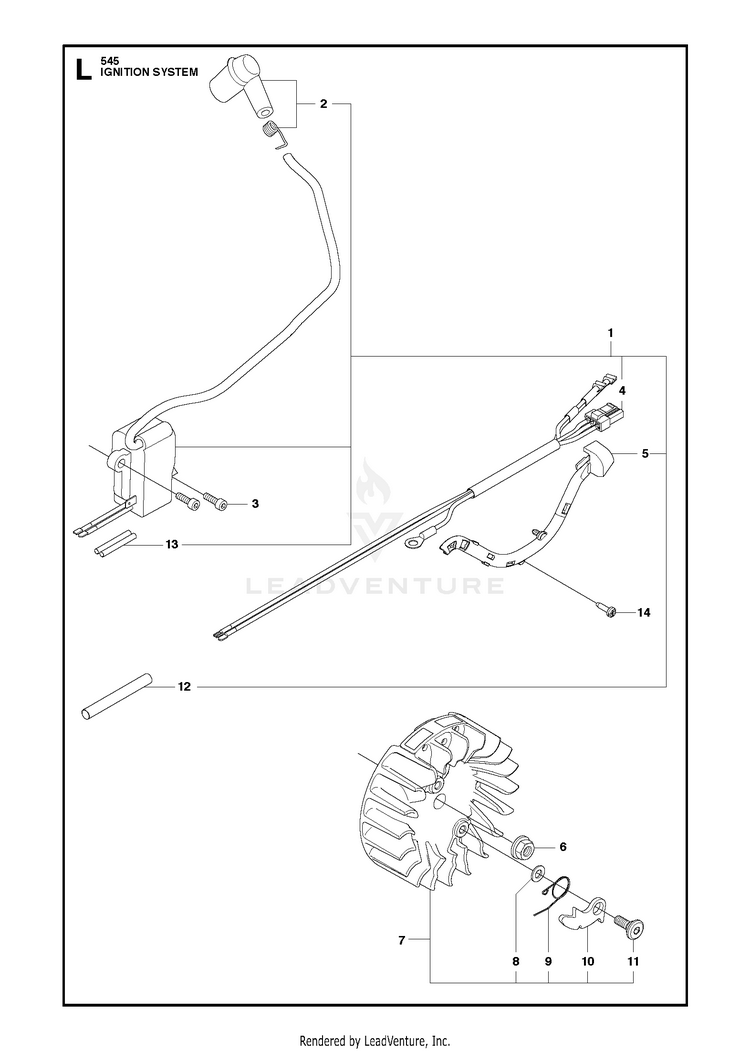

IGNITION SYSTEM

...
...
1
IGNITION MODULE ASSY HUS-581723702
...
2
SPARK PLUG CAP ASSY . 1 HUS-501485404
...
3
SCREW HUS-503200220
...
4
WIRING ASSY IGNITION SYSTEM . 1 HUS-577967602
...
5
CABLE HOLDER . 1 HUS-529292601
...
6
NUT W/ WASHER HUS-503220401
...
7
FLYWHEEL ASSY HUS-522937801
...
8
WASHER . 7 HUS-503230042
...
9
SPRING . 7 HUS-501673501
...
10
PAWL . 7 HUS-501673201
...
11
SCREW M5X14 . 7 HUS-501819901
...
12
CABLE COVER . 1 HUS-504043505
...
13
SHRINK HOSE . 1 HUS-503238501
...
14
SCREW HUS-503212813
