Husqvarna 545 (2013-01) Chain Saw

Model: 545 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

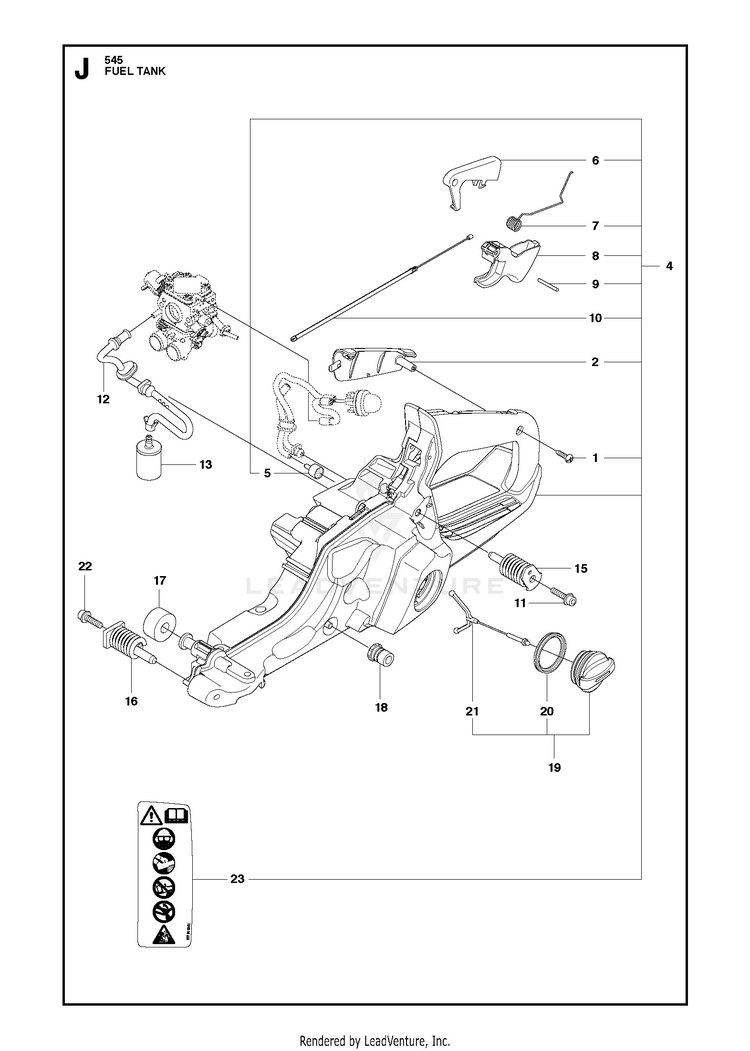

FUEL TANK

...
...
1
SCREW . 4 HUS-503212813
...
2
HANDLE INSERT . 4 HUS-504106301
...
4
FUEL TANK ASSY 50CC ORANGE HUS-577790203
...
5
FUEL TANK VENT . 4 HUS-501152901
...
6
THROTTLE LOCKOUT . 4 HUS-544099801
...
7
SPRING . 4 HUS-544099901
...
8
THROTTLE . 4 HUS-505157701
...
9
PIN . 4 HUS-720182520
...
10
THROTTLE CABLE ASSY . 4 HUS-521887901
...
11
SCREW HUS-503218874
...
12
FUEL HOSE HUS-573993503
...
13
KIT FUEL FILTER HUS-591375401
...
15
ANTIVIBRATION ELEMENT HUS-578227401
...
16
ANTIVIBRATION ELEMENT FRONT HUS-505128702
...
17
DEFLECTION LIMITER HUS-523085501
...
18
LATERAL SUPPORT HUS-501007601
...
19
ASSY TANK CAP GREY HUS-544111203
...
20
SEALING . 19 HUS-589241101
...
21
TANK LOCK . 19 HUS-503578901
...
22
SCREW HUS-503218876
...
23
DECAL . 4 HUS-577844301
