Husqvarna 543 XP (20173200001-Current) Chain Saw

Model: 543 XP (20173200001-Current)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

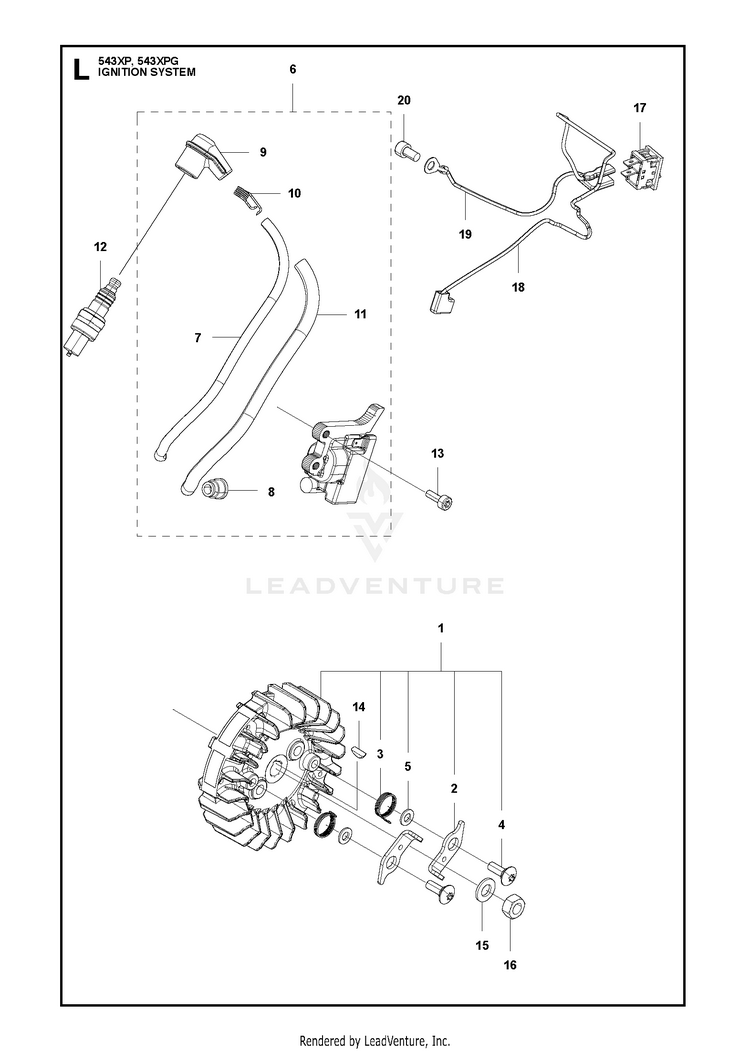

IGNITION SYSTEM

...
...
13
BOLT M4x16-T27 HUS-506745701
...
10
SPRING HUS-506655201
...
9
CAP HUS-512444001
...
8
RP_CAP HUS-516744001
...
11
TUBE XC23 HUS-577335601
...
15
WASHER HUS-510488101
...
4
SCREW T27 XC23 M5x12-T27 HUS-577823601
...
3
SPRING HUS-514240901
...
12
SPARK PLUG NGK CMR7H NGK CMR7H HUS-506615101
...
16
NUT Z335043231 HUS-514239201
...
7
CODE XC23 HUS-577335501
...
5
WASHER 5X10X10 HUS-506614401
...
6
IGNITION MODULE ASSY HUS-588849001
...
20
BOLT M5x9-T27 HUS-529268101
...
2
PAWL HUS-576982501
...
1
FLYWHEEL ASSY HUS-576982301
...
14
KEY HUS-506689401
...
19
CORD HUS-513766201
...
17
STOP SWITCH NM_09091801 HUS-586246801
...
18
CORD HUS-576983001
