Husqvarna 543 XP (20173200001-Current) Chain Saw

Model: 543 XP (20173200001-Current)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

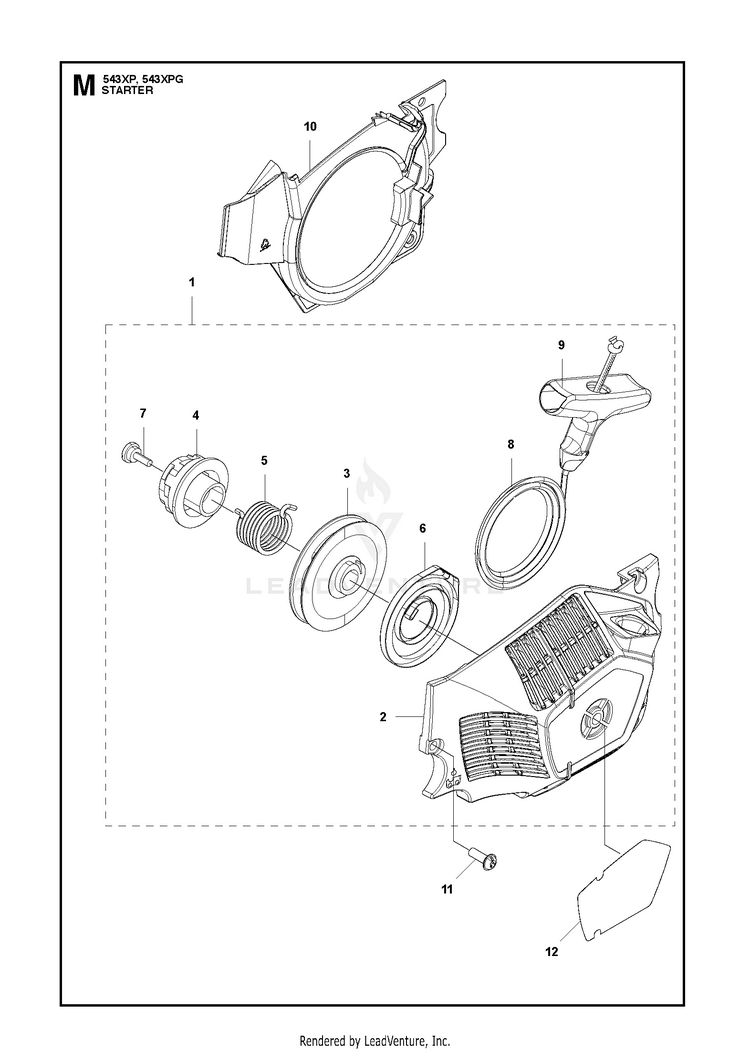

STARTER

...
...
6
SPRING CASSETTE ASSY OLD P/N HUS-576383301
...
11
SCREW M5 X 14 M5x14-T27 HUS-579191301
...
1
STARTER ASSY s/n from 20172200001 HUS-586693102
...
12
DECAL STARTER XP 543XP HUS-577436501
...
3
REEL s/n from 20172200001 HUS-586693501
...
1
STARTER ASSY XC25 s/n up to — 20171915387 HUS-577434101
...
9
HANDLE HUS-537232501
...
8
ROPE HUS-527756101
...
3
REEL s/n up to — 20171915387 HUS-527756001
...
10
AIR CONDUCTOR COOLING s/n from 20172200001 HUS-586689001
...
5
SPRING HUS-527756201
...
7
SCREW HUS-515367101
...
2
CASE COMP XC25 s/n up to — 20171915387 HUS-577434401
...
2
Covers s/n from 20172200001 HUS-586693202
...
4
STARTER PULLEY CAM HUS-576985601
...
10
AIR BAFFLE s/n up to — 20171915387 HUS-576985901
