Husqvarna 543 XP (20173200001-Current) Chain Saw

Model: 543 XP (20173200001-Current)

Back To Assemblies

Save Part Not Listed?
product name

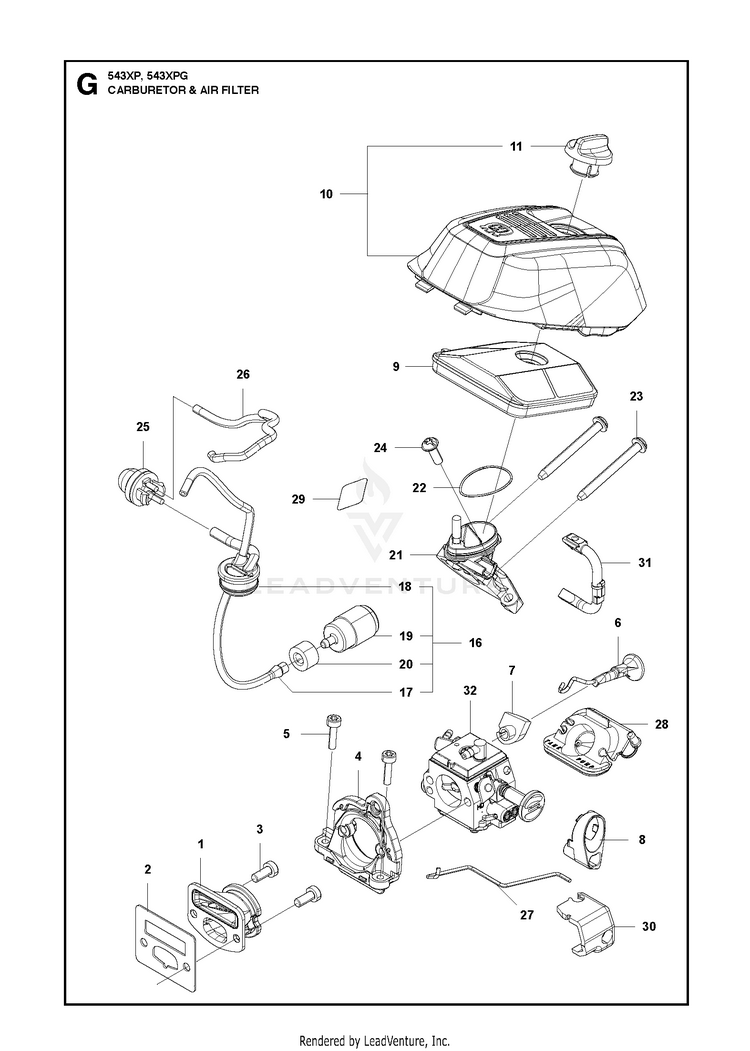

CARBURETOR & AIR FILTER

...
...
6
ROD CHOKE XC25 HUS-577433201
...
9
CLEANER COMP s/n from 20172200001 HUS-588849101
...
16
NEEDS DESCRIPTION For EU/JAPAN only HUS-588412302
...
21
MANIFOLD s/n from 20172200001 HUS-588817901
...
17
FUEL PIPE For US/CAN only HUS-579518401
...
18
Grommets HUS-578778102
...
8
GROMMET ID For EU/US only HUS-582339201
...
30
GROMMET CARB HUS-584982501
...
32
CARBURETTOR For JAPAN only HUS-588848901
...
2
GASKET HUS-579187101
...
31
PIPE COMPENSATOR ASSY s/n from 20172200001 HUS-588903101
...
20
COLLAR HUS-513750801
...
25
PRIMARY BTN HUS-513789301
...
32
CARBURETTOR ASSY HD s/n up to — 20171915387, for EU/US only HUS-580798401
...
10
AIR FILTER COVER HUS-577433501
...
1
INLET PIPE ASSY HUS-576980101
...
28
GROMMET HUS-512463101
...
3
BOLT M5x12-T27 HUS-522638501
...
5
BOLT M4x16-T27 HUS-506745701
...
23
BOLT HUS-580370101
...
8
NEEDS DESCRIPTION For JAPAN only HUS-501305101
...
27
THROTTLE ROD HUS-576980601
...
11
KNOB XC25 HUS-577433701
...
16
FUEL HOSE ASSY For US/CAN only HUS-579204003
...
29
DECAL HUS-580695501
...
19
KIT FUEL FILTER HUS-591375401
...
22
SEAL MANIFOLD s/n up to — 20171915387 HUS-581356201
...
9
CLEANER s/n up to — 20171915387 HUS-513794601
...
7
GROMMET HUS-577433301
...
32
CARBURETTOR ASSY s/n from 20172200001, For EU/US only HUS-590413402
...
4
FLANGE ASSY HUS-579181001
...
22
O-RING s/n from 20172200001 HUS-588848801
...
24
SCREW M5 X 14 HUS-579191301
...
26
Fuel Hoses HUS-595526911
...
17
NEEDS DESCRIPTION For EU/JAPAN only HUS-510920901
...
21
MANIFOLD s/n up to — 20171915387 HUS-576980701
