product name

Husqvarna 543 XP (20173200001-Current) Chain Saw

Model: 543 XP (20173200001-Current)

Back To Assemblies

Save Part Not Listed?
product name

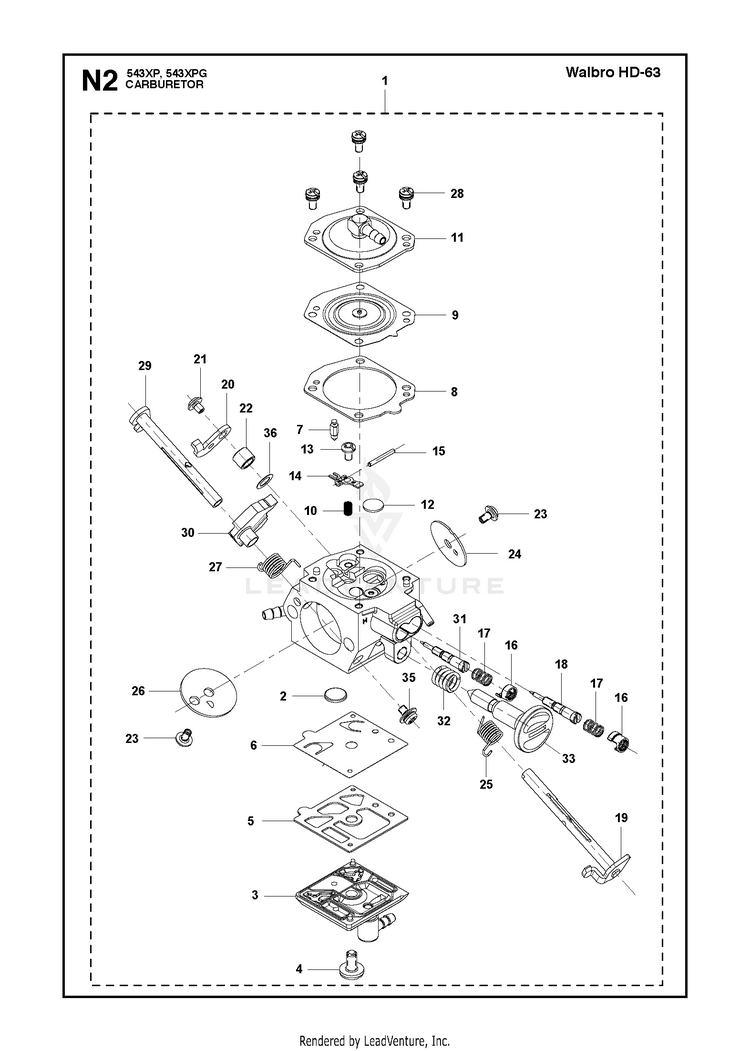

CARBURETOR DETAILS

...
...
3
COVER ASSEMBLY PUMP 21-3780 HUS-579492101
...
4
SCREW Z149181130 HUS-513301301
...
16
CAP LIMITER HUS-578913001
...
17
SPRING HUS-578912801
...
25
SPRING 98-3706 HUS-579493001
...
26
VALVE CHOKE 34-3504 HUS-579493101
...
15
PIN HUS-520977401
...
19
SHAFT ASSY THROTTLE 22-4282 HUS-579492501
...
24
VALVE THROTTLE 34-314 HUS-579492901
...
6
DIAPHRAGM PUMP HUS-585399801
...
13
SCREW HUS-520977301
...
21
SCREW HUS-520759801
...
35
SCREW HUS-581298301
...
23
SCREW 96-3240 HUS-579492801
...
20
LEVER THROTTLE 18-3551 HUS-579492601
...
22
SPACER THROTTLE LEVER 148-96 HUS-579492701
...
1
CARBURETTOR ASSY HD s/n up to — 20171915387 (HD—54B EU, US) HUS-580798401
...
36
WASHER HUS-506746101
...
8
GASKET HUS-514242801
...
14
LEVER HUS-514242901
...
12
PLUG HUS-516342901
...
10
SPRING HUS-516980001
...
2
RP_SCREEN (RPLS 331081380) HUS-574012501
...
29
SHAFT ASSY CHOKE 22-4356 HUS-581298101
...
11
COVER PUMP HUS-501405701
...
18
NEEDLE HUS-580242101
...
31
NEEDLE HIGH SPEED HUS-580242601
...
7
VALVE INLET HUS-521085401
...
27
SPRING 98-3718 HUS-581298001
...
9
DIAPHRAGM ASSEMBLY METERING 95 HUS-579492201
...
1
CARBURETTOR ASSY s/n from 20172200001 (HD—63 EU, US) HUS-590413402
...
5
GASKET HUS-514242701
...
30
LEVER FAST IDEL 18-3566 HUS-581298201
...
32
SPRING HUS-521066301
...
33
SCREW HUS-513792801
...
28
SCREW ASSY HUS-520978801
