Husqvarna 543 XP (20173200001-Current) Chain Saw

Model: 543 XP (20173200001-Current)

Back To Assemblies

Save Part Not Listed?
product name

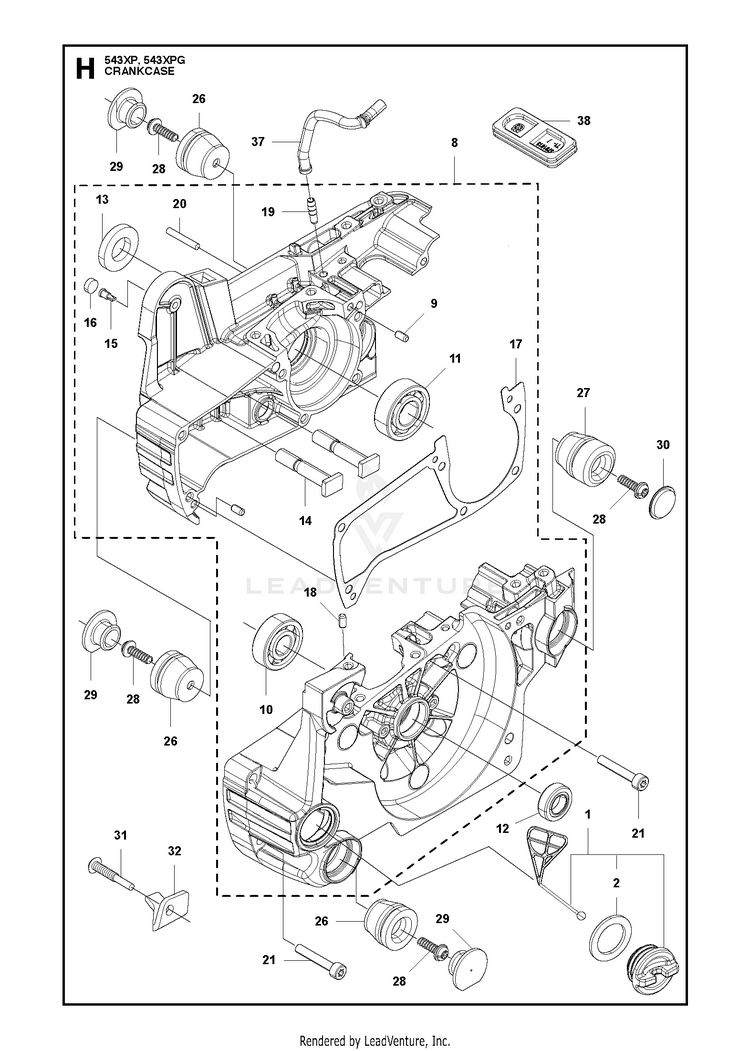

CRANKCASE

...
...
1
CAP ASSY 848C1H8610 HUS-511064301
...
37
PIPE HUS-577029501
...
9
PIN HUS-577167401
...
20
PIN 8488B42400 HUS-521522401
...
11
BEARING HUS-502849101
...
2
PACKING HUS-579519001
...
30
CAP HUS-513945101
...
19
FITTING PULSE XC23 HUS-578196701
...
15
AIR CONTROL BREATHER HUS-516961901
...
10
Bearings HUS-596449001
...
8
CRANKSHAFT ASSY HUS-577432701
...
28
SCREW T5x16-T27 HUS-521517901
...
27
DAMPER T210035210 HUS-512458301
...
16
SEAL Z285021250 HUS-513746401
...
29
CAP HUS-513826101
...
18
PIN XC23 HUS-578281201
...
21
BOLT M5x30-T27 HUS-515388101
...
14
BOLT HUS-513746201
...
31
SCREW T27 XC23 HUS-577823701
...
38
GROMMET HUS-579181301
...
17
GASKET, CRANKCASE HUS-576976201
...
26
DAMPER HUS-513560401
...
12
SEAL HUS-504121501
...
13
SEAL HUS-581284901
...
32
CHAIN CATCHER HUS-579210201
