Husqvarna 543 XP (20173200001-Current) Chain Saw

Model: 543 XP (20173200001-Current)

Back To Assemblies

Save Part Not Listed?
product name

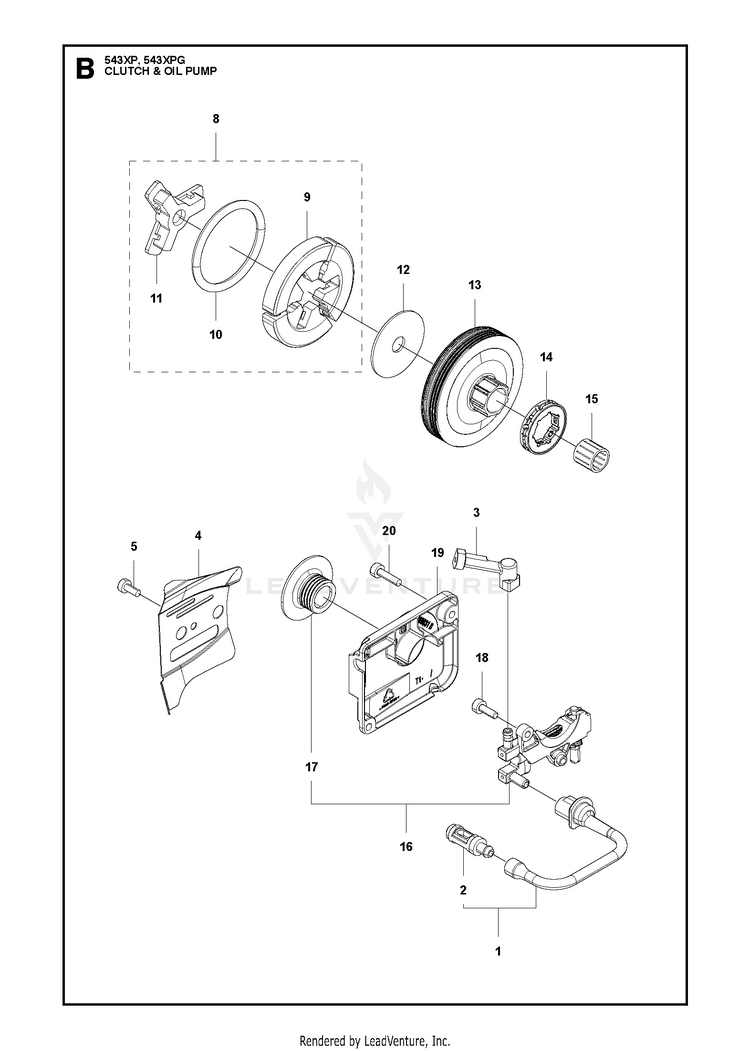

CLUTCH & OIL PUMP

...
...
2
FILTER HUS-505045101
...
8
CLTUCH ASSY HUS-585006001
...
17
Gears HUS-593827301
...
9
SHOE HUS-514197401
...
11
BOSS HUS-521579401
...
4
BAR MOUNT PLATE HUS-576985301
...
12
PLATE HUS-513625701
...
20
BOLT M4 X 12 T27 M4x12-T27 HUS-521515701
...
18
BOLT M4x16-T27 HUS-506745701
...
3
Pipes HUS-513618802
...
16
OIL PUMP SET (RPLS 848C806711) 325P HUS-521586501
...
14
RIM HUS-514239401
...
13
DRUM 325P HUS-513956101
...
15
BEARING HUS-513701201
...
5
SCREW M4x10-T27 HUS-576985401
...
1
Pipes HUS-521579902
...
19
PUMP COVER HUS-576983101
...
10
CLUTCH SPRING HUS-585006101
