Husqvarna 536LiXP (2012-08) Chain Saw

Model: 536LiXP (2012-08)

Save Part Not Listed?
product name

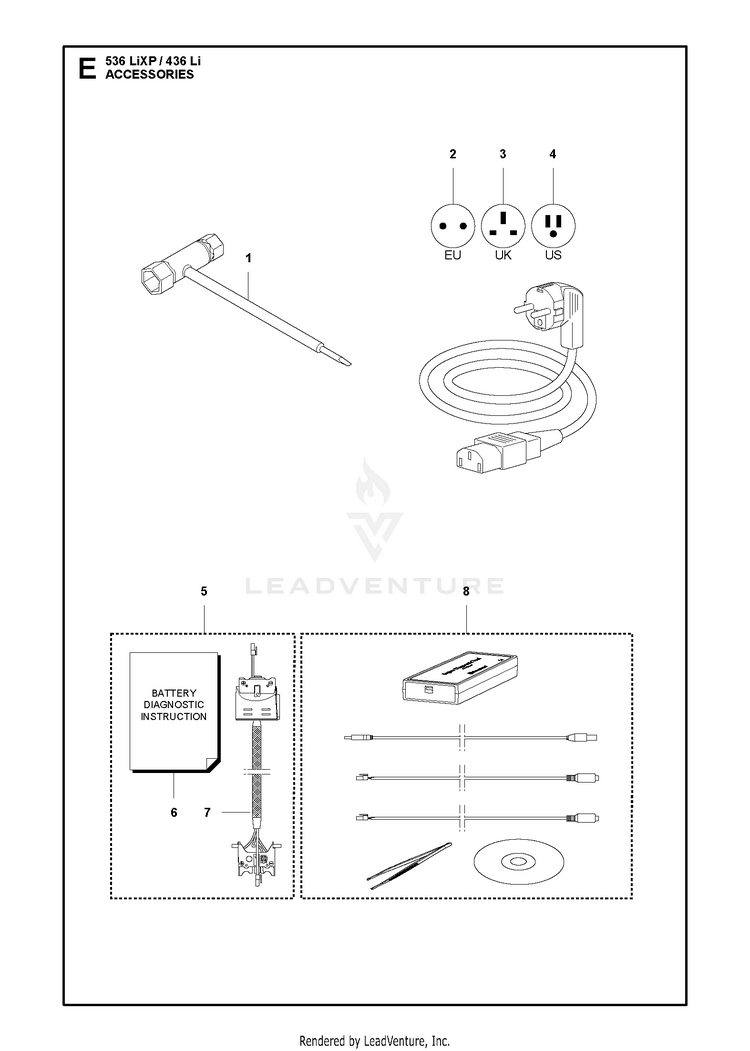

*Accessories

...
...
1
COMBINATION WRENCH COMBI TOOL HUS-531222001
...
2
MAIN CABLE HUS-578081901
...
3
CABLE HUS-579130601
...
4
CABLE HUS-579130401
...
5
WIRING ASSY HUS-579621301
...
6
. 5 HUS-115506926
...
7
WIRING ASSY . 5 HUS-579621301
...
8
DIAGNOSTIC TOOL KIT HUS-583897101

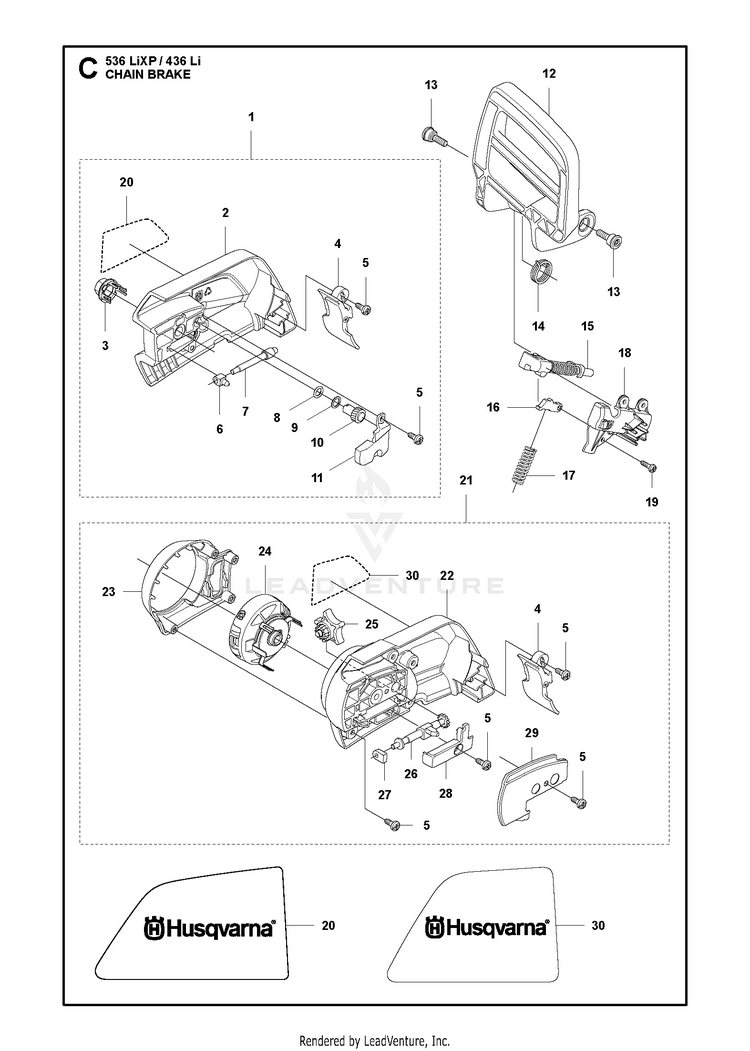

CHAIN BRAKE

...
...
1
CLUTCH COVER ASSY 536 LiXP HUS-576905603
...
2
CLUTCH COVER . 1 HUS-576905701
...
3
NUT RETAINER ASSY . 1 HUS-505197301
...
4
CHIP GUARD . 1 21 HUS-577722101
...
5
SCREW . 1 21 HUS-503217072
...
6
PIN BAR ADJUSTING . 1 HUS-588850301
...
7
SCREW . 1 HUS-537397001
...
8
O-RING . 1 HUS-740480702
...
9
WASHER . 1 HUS-503230063
...
10
WORM WHEEL . 1 HUS-537079402
...
11
COVER LID . 1 HUS-505214501
...
12
HAND GUARD HUS-576903901
...
13
SCREW HUS-503893001
...
14
TORSION SPRING HUS-577649801
...
15
SHAFT ASSY HUS-577549501
...
16
CATCH HUS-577272001
...
17
SPRING HUS-576904601
...
18
BRACKET HUS-577365601
...
19
SCREW HUS-503212813
...
20
DECAL . 1 HUS-578228901
...
21
CLUTCH COVER ASSY LI 436 Li HUS-578914201
...
22
CLUTCH COVER . 21 HUS-578790601
...
23
COVER . 21 HUS-578779401
...
24
KNOB UNLOSEABLE . 21 HUS-537347803
...
25
CHAIN TENSIONER . 21 HUS-578776501
...
26
CHAIN TENSION SCREW COMPL. . 21 HUS-537392902
...
27
BEARING SLEEVE . 21 HUS-525354301
...
28
COVER . 21 HUS-504542801
...
29
WEAR PLATE . 21 HUS-578778201
...
30
DECAL . 21 HUS-578915801

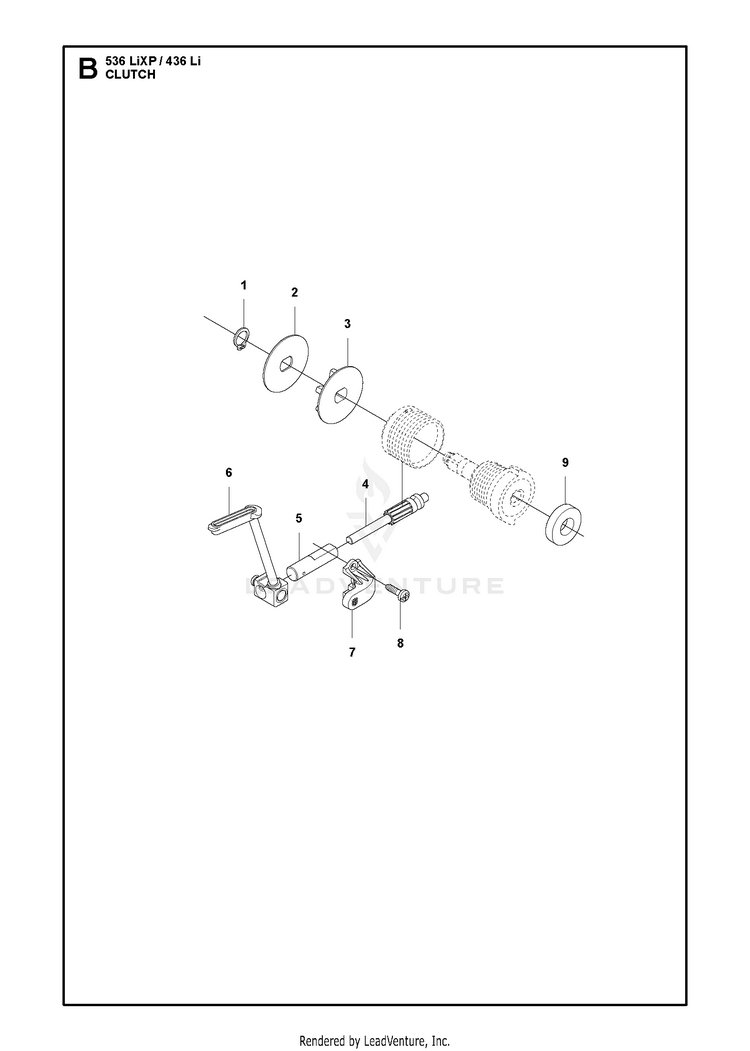

CLUTCH

...
...
1
RETAINING RING SGA 10 HUS-735311200
...
2
WASHER HUS-577271501
...
3
SPUR SPROCKET 3/8" - 6T HUS-590087701
...
4
PISTON PUMP HUS-540057901
...
5
PUMP CYLINDER HUS-537154801
...
6
OIL HOSE HUS-577272501
...
7
BRACKET HUS-579246901
...
8
SCREW HUS-503212813
...
9
DISTANCE HUS-580760601

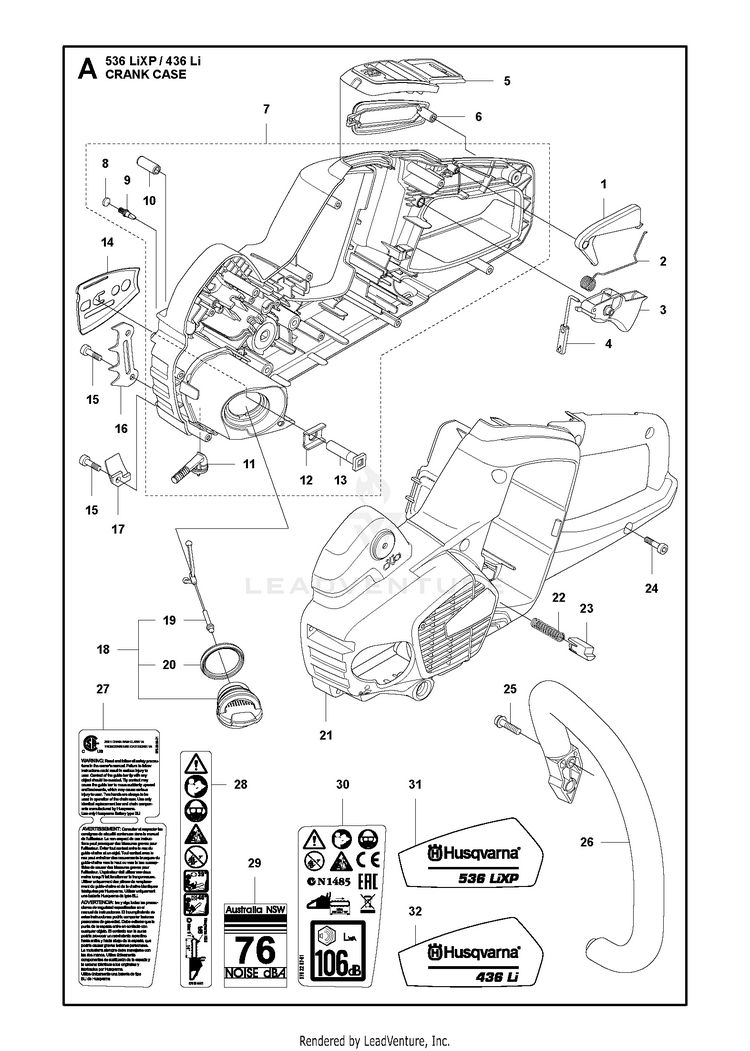

CRANKCASE

...
...
1
THROTTLE LOCKOUT HUS-506495701
...
2
SPRING HUS-544099901
...
3
THROTTLE CONTROL HUS-577312701
...
4
THROTTLE ROD ASSY HUS-577855101
...
5
HUS-576901301
...
6
HANDLE INSERT HUS-577261901
...
7
CRANKCASE ASSEM C SIDE REV F HUS-581268403
...
8
SINTERED BRONZE FILTER . 7 HUS-537403502
...
9
VALVE-CHECK (DUCKBILL) . 7 HUS-530026119
...
10
GUIDE BAR LOCATING PIN . 7 HUS-501623301
...
11
. 7 HUS-581097601
...
12
PLATE . 7 HUS-576999701
...
13
BOLT . 7 HUS-503875401
...
14
CHAIN GUIDE HUS-576901401
...
15
SCREW HUS-503217416
...
16
INDRE BARKSTØD HUS-577286601
...
17
CHAIN CATCHER HUS-505288501
...
18
TANK CAP ASSY HUS-522620003
...
19
TANK LOCK . 18 HUS-503578901
...
20
SEALING . 18 HUS-589241101
...
21
CRANKCASE HUS-577063402
...
22
SPRING PUSH OUT HUS-585480001
...
23
PUSH BUTTON HUS-577996601
...
24
SCREW IHSCT MT4X18 10.9 ZN/FE HUS-503216674
...
25
SCREW HUS-503218876
...
26
FRONT HANDLE HUS-577063501
...
27
DECAL HUS-578228801
...
28
DECAL HUS-579504401
...
29
LABEL AUSTRAILIA 76 DB HUS-501971604
...
30
DECAL HUS-578228701
...
31
DECAL HUS-578229101
...
32
DECAL HUS-578229201

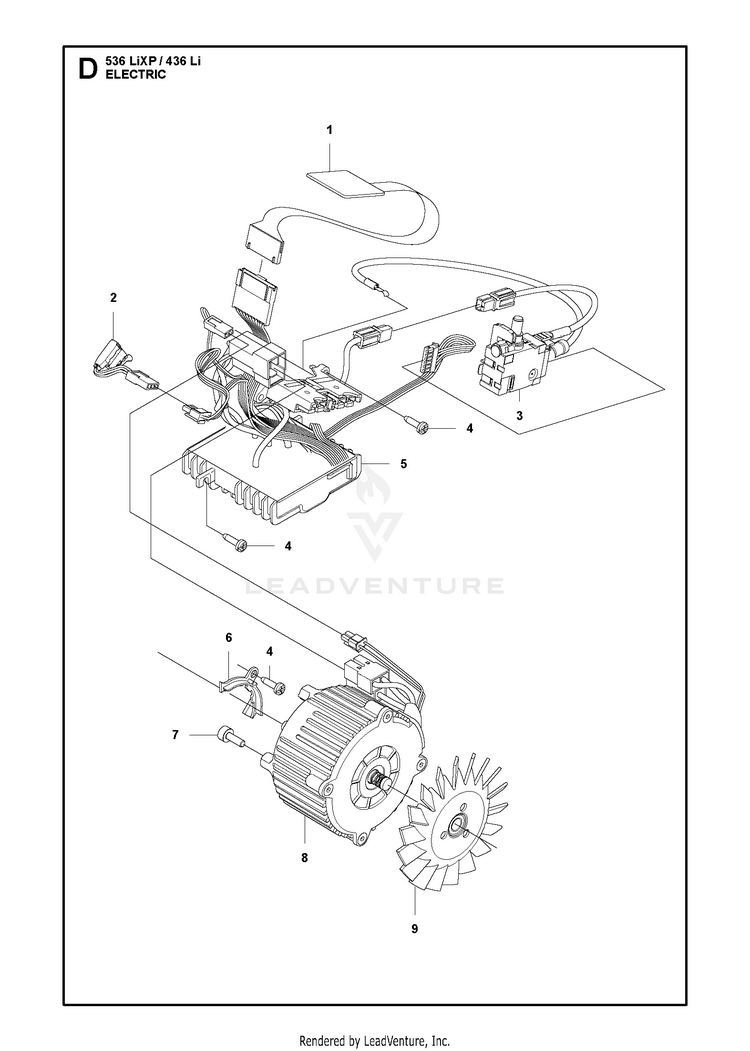

ELECTRICAL

...
...
1
KEYPAD 2 BUTTON MEMCON CONNECT HUS-584953102
...
2
WIRING ASSY HUS-577827701
...
3
WIRING ASSY HUS-578142901
...
4
SCREW HUS-503212813
...
5
CONTROL UNIT HUS-588211801
...
6
COVER HUS-577585201
...
7
SCREW HUS-503202512
...
8
MOTOR ASSY W/ FAN Complete with fan HUS-577315801
...
9
FAN HUS-581300901
