Husqvarna 536LiHE3 Hedge Trimmer

Model: 536LiHE3

Save
 Part Not Listed?Part Not Listed?
product name

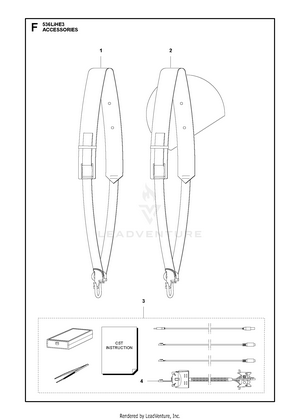

ACCESSORIES

...
...
4
WIRING ASSY HUS-579621301
...
1
Harness - Diagonal with sign HUS-537216202
...
2
Harness - Diagonal with sign HUS-537216202
...
3
DIAGNOSTIC TOOL KIT HUS-583897101

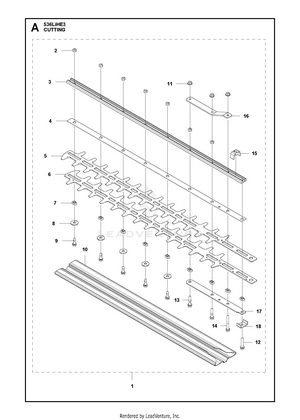

CUTTING EQUIPMENT

...
...
4
WEAR PLATE CUTTING DECK 55 HUS-579693701
...
10
TRANSPORT GUARD CUTTING DECK 5 HUS-579694201
...
12
SCREW HUS-503200778
...
3
BAR CUTTING DECK 55 HUS-579693801
...
18
BRACKET CUTTING DECK HUS-582192801
...
5
BLADE ASSY 55 HUS-582192601
...
16
SUPPORT CUTTING DECK HUS-580931501
...
14
SCREW HUS-503200240
...
11
HEXAGON NUT FLANGE M5 8 ZN/FE HUS-503220009
...
13
SCREW M5X25 T27 HUS-525755114
...
7
SPACER CUTTING DECK HUS-582192701
...
15
GASKET HUS-578372201
...
8
WASHER 6,4X18X1,5 HUS-503230024
...
6
BLADE ASSY 55 HUS-582192601
...
1
CUTTING DECK ASSY HUS-582192902
...
17
BAR LOWER HUS-579694001
...
9
SCREW M5X16 T25 HUS-525755113
...
2
NUT HUS-731231401

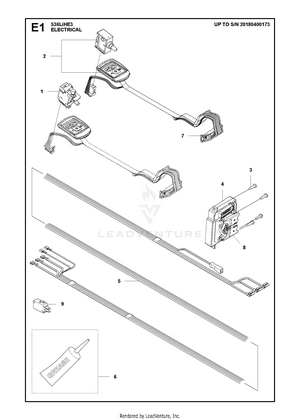

ELECTRICAL

...
...
1
TRIGGER SWITCH IPX4 HUS-582050701
...
7
SWITCH KIT BATTERY POLE HEDGER HUS-593896601
...
8
BRACKET HUS-587327201
...
4
CONTROL UNIT BLDC - 536LIHE3 HUS-582054101
...
5
WIRING ASSY POLE HEDGE MOTOR B HUS-582188901
...
9
CONNECTOR BATTERY HUS-593813001
...
3
SCREW HUS-503212813
...
2
WIRING ASSY POLE HEDGE MAIN HUS-589300301

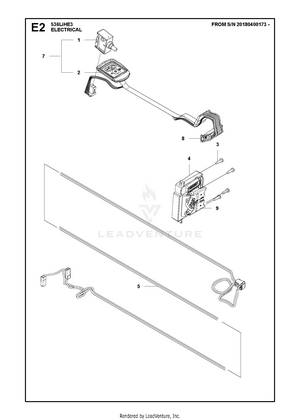

ELECTRICAL 2

...
...
3
SCREW HUS-503212813
...
4
CONTROL UNIT BLDC - 536LIHE3 HUS-582054101
...
8
CONNECTOR BATTERY HUS-593813001
...
7
BRACKET HUS-587327201
...
5
WIRING ASSY POLE HEDGE MOTOR B HUS-582188901
...
2
SWITCH KIT BATTERY POLE HEDGER HUS-593896601
...
6
GREASE TUBE Q8 RUYSDAEL WR2 HUS-588176401
...
1
TRIGGER SWITCH HUS-578326901

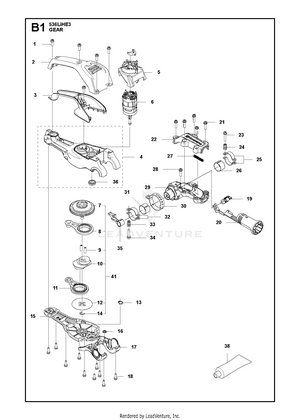

GEAR HOUSING

...
...
7
WIRING ASSY POLE HEDGE MOTOR B HUS-582188901
...
1
Gears HUS-599209701
...
5
SCREW MC6S 5X16 M5x16 HUS-725532955
...
3
Gears HUS-588564406
...
2
Motor HUS-588225803
...
6
COVER ASSEMBLY, GEAR HOUSING HUS-588570007
...
4
SCREW M5x20 HUS-573925801

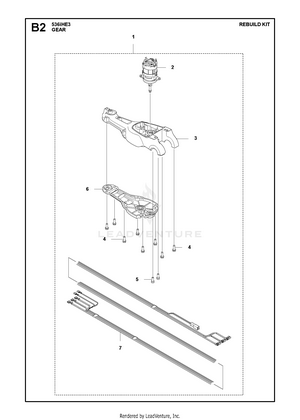

GEAR HOUSING 2

...
...
10
ECCENTRIC DISC GEAR HUS-501707101
...
24
Springs HUS-588218701
...
33
Springs HUS-588218701
...
20
HANDLE GRIP HUS-588215001
...
27
COMPRESSION SPRING SPRING HUS-582537102
...
11
NEEDS DESCRIPTION HUS-531127701
...
18
SCREW IHSCFT HUS-503216872
...
1
SCREW IHSCFT HUS-503217572
...
6
Gears HUS-599209701
...
16
LOCK WASHER HUS-735583000
...
26
SLIDE RING SLIDE RING HUS-588217502
...
14
LOCK WASHER HUS-578054901
...
35
LEVER HUS-588219201
...
13
SEEGER CLIP HUS-735311400
...
36
BALL BEARING 61801-2RS HUS-592994601
...
31
SLIDE RING SLIDE RING HUS-588217502
...
37
SWITCH HUS-574316001
...
28
SCREW IHSCFT HUS-503216872
...
12
WASHER DISK DISC HUS-522714601
...
29
HOUSING JOINT HUS-588215501
...
8
NEEDS DESCRIPTION HUS-531127701
...
17
BEARING CAP HUS-588217901
...
4
Gears HUS-599209701
...
30
RING INDEX 520IHE3/IHT4 HUS-588216302
...
5
AIR CONDUCTOR MOTOR HUS-582341402
...
23
SCREW HUS-503200325
...
19
LOCKING PIN ASSY HUS-588215901
...
32
BRAKE BAND ASSY POLE HEDGETRIM HUS-588474901
...
41
GEAR ASSY GEAR ASSY KIT 520IHE HUS-599888501
...
2
Motor HUS-588224802
...
3
MOTOR COVER LOWER HUS-588224901
...
22
LID JOINT HUS-588215401
...
9
HEAVY DUTY DOWEL PIN PROJEKT 1 HUS-578002701
...
34
SCREW HUS-503200325
...
15
COVER ASSEMBLY, GEAR HOUSING HUS-588570007
...
7
GEAR ASSY HUS-588223801
...
25
BRAKE BAND ASSY POLE HEDGETRIM HUS-588474901
...
21
SCREW IHSCFT HUS-503216872

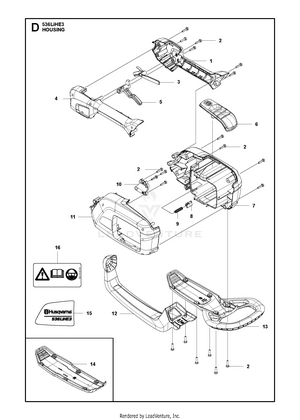

HOUSING

...
...
10
CLAMP HUS-577022201
...
5
TRIGGER GRAY HUS-589377903
...
3
THROTTLE LOCKOUT HUS-577512301
...
13
BUMPER SKID PLATE HUS-587345801
...
7
HOUSING RIGHT HUS-577013002
...
12
TRIGGER GUARD HUS-587346001
...
9
SPRING PUSH OUT HUS-585480001
...
4
HANDLE HALF LEFT HUS-577013101
...
11
HOUSING LEFT HUS-577007603
...
8
PUSH BUTTON HUS-577996601
...
2
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
16
Decals HUS-503709701
...
6
COVER HUS-577014101
...
15
HUS-588602804
...
1
HANDLE HALF RIGHT HUS-577013202
...
14
SKID PLATE HUS-588919801

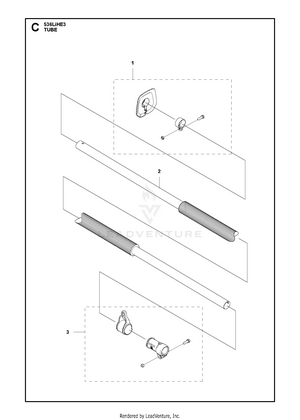

TUBE

...
...
1
HANDGUARD ASSY HUS-579488601
...
3
CORD BRACKET CPL HUS-522920804
...
2
TUBE ASSY POLE H HUS-588699001
...
...
...
...
...
