Husqvarna 536LiBX Blower

Model: 536LiBX

Back To Assemblies

Save Part Not Listed?
product name

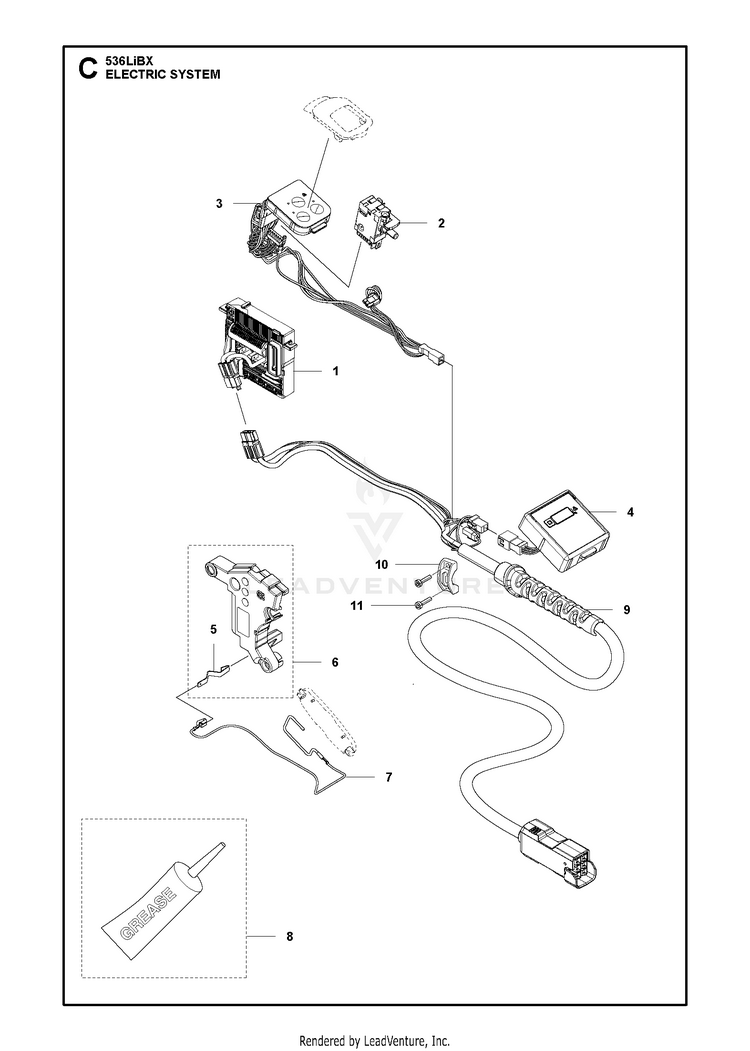

ELECTRICAL

...
...
1
CONTROL UNIT BLDC MID SPEC, GE HUS-587948601
...
7
WIRING ASSY HUS-586963901
...
10
CABLE CLAMP HUS-581472301
...
11
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
8
GREASE TUBE Q8 RUYSDAEL WR2 HUS-588176401
...
3
HUS-588073701
...
9
HUS-587917301
...
5
SPRING HUS-586492201
...
4
HUS-587978201
...
6
KIT COVER ELECTRONICS HUS-588009801
...
2
TRIGGER SWITCH HUS-578326901
