Husqvarna 535 RXT Brushcutter/Clearing Saw

Model: 535 RXT

Back To Assemblies

Save Part Not Listed?
product name

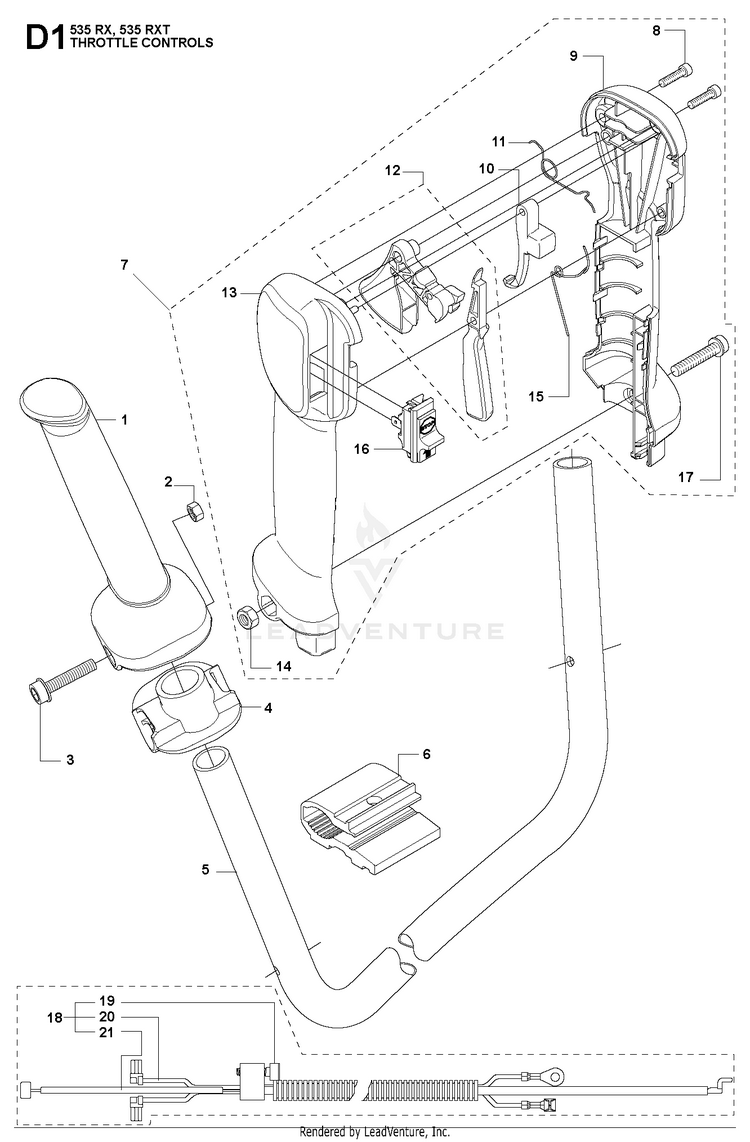

THROTTLE CONTROLS 2

...
...
16
STOP BUTTON HUS-537419001
...
14
NUT HUS-503221013
...
9
HANDLE 535 RXT HUS-537160302
...
1
HANDLE HUS-537172801
...
13
HANDLE HALF LEFT 535 RXT HUS-537160209
...
6
CLAMP HUS-544020901
...
3
SCREW HUS-503200245
...
21
THROTTLE WIRE HUS-537377801
...
7
HANDLE SYSTEM ASSY HUS-537424513
...
5
HANDLE HUS-537360001
...
8
SCREW HUS-503216618
...
18
WIRING KIT COMPLETE HUS-537359602
...
20
SHORT CIRCUIT CABLE HUS-503878507
...
13
HANDLE HALF LEFT 535 RX HUS-537160209
...
2
NUT HUS-731231401
...
9
HANDLE 535 RX HUS-537160301
...
10
STARTER THROTTLE LOCK HUS-537160703
...
4
BRACKET HUS-537172901
...
12
THROTTLE CONTROL HUS-506497701
...
15
SPRING HUS-537174301
...
19
SCREW HUS-503216618
...
17
SCREW IHSCFM HUS-503200782
...
11
SPRING HUS-537174201
