Husqvarna 535 LK Trimmer/Edger

Model: 535 LK

Back To Assemblies

Save Part Not Listed?
product name

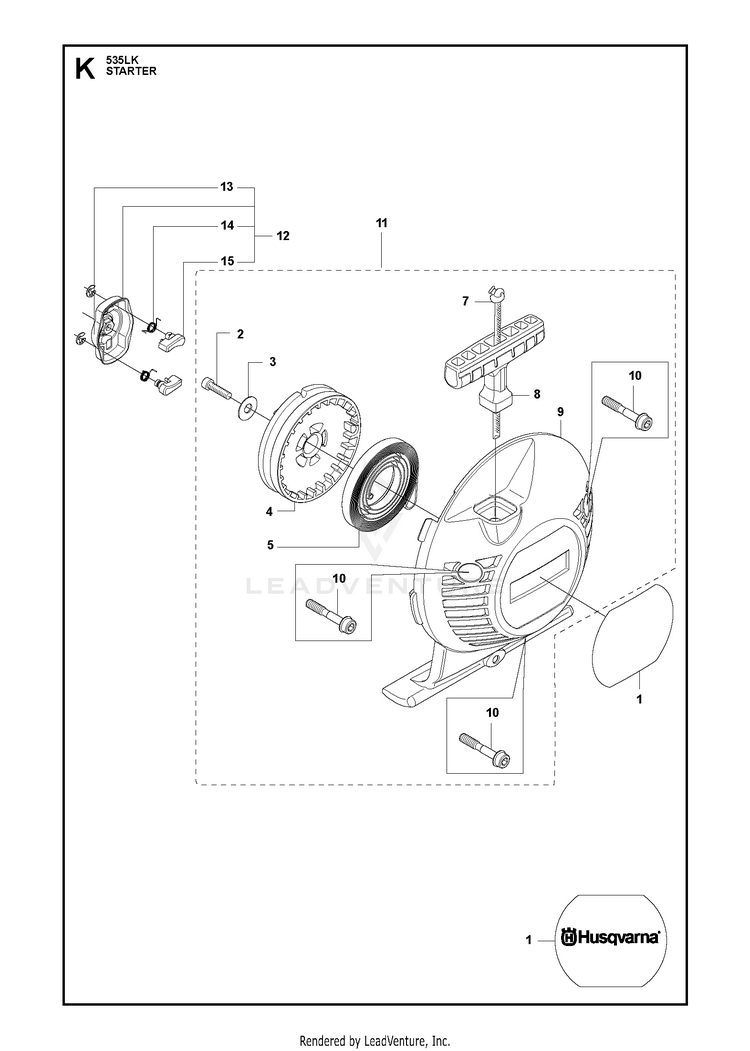

STARTER

...
...
4
STARTER PULLEY HUS-537325003
...
10
SCREW IHSCFMO Captive screws HUS-573994305
...
5
STARTER SPRING HUS-503859901
...
13
E-RING 4 HUS-735310820
...
3
WASHER HUS-535072301
...
1
DECAL HUS-577223601
...
7
STARTER ROPE HUS-505305125
...
11
STARTER ASSY HUS-537214707
...
12
STARTER PAWL BRIDGE HUS-503873305
...
15
STARTER PAWL HUS-544011401
...
8
STARTER HANDLE HUS-503543901
...
14
SPRING HUS-503873601
...
2
SCREW HUS-503217920
...
9
STARTER Spare part adapted for captive screws HUS-544102502
