product name

Husqvarna 535 LK Trimmer/Edger

Model: 535 LK

Back To Assemblies

Save Part Not Listed?
product name

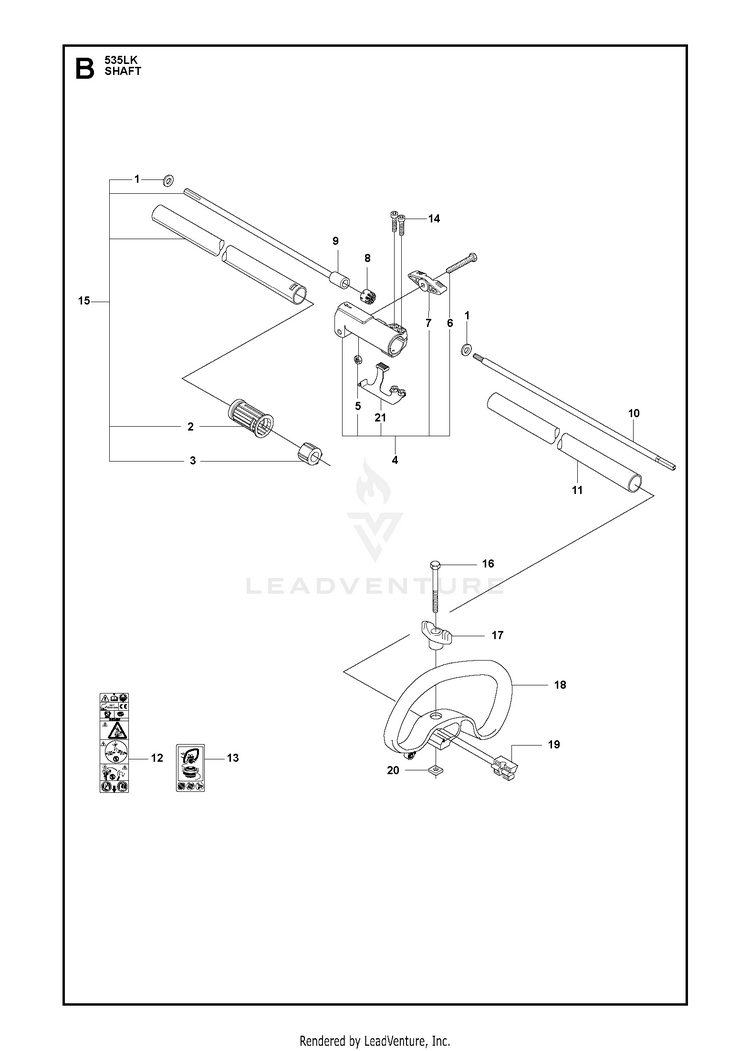

SHAFT

...
...
13
DECAL WARNING "NO BLADES" HUS-503795601
...
20
NUT HUS-502197101
...
6
BOLT FLANGE HUS-725237651
...
21
LOCKING PLATE ASSY CLAMPING SL HUS-576282301
...
12
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
19
SPACER PLASTIC HUS-503940301
...
10
DRIVE SHAFT L=696mm Ø=7mm, thread end HUS-581815102
...
14
SCREW HUS-503200725
...
9
SHAFT L=843mm Ø=7mm HUS-587411701
...
1
WASHER HUS-735580810
...
4
CLAMPING SLEEVE HUS-576282602
...
5
NUT HUS-731231601
...
8
CLIP HUS-583938301
...
16
SCREW M6X50 HUS-725238051
...
3
BUSHING HUS-503785202
...
18
HANDLE HUS-503871908
...
7
KNOB CLAMPING SLEEVE HUS-576282401
...
17
KNOB HUS-503879001
...
2
PLUG HUS-587414601
...
15
TUBE HUS-587988101
...
11
TUBES L=650mm Ø=24mm HUS-587987901
Schematic Image Zoomed
