Husqvarna 535 LK Trimmer/Edger

Model: 535 LK

Back To Assemblies

Save Part Not Listed?
product name

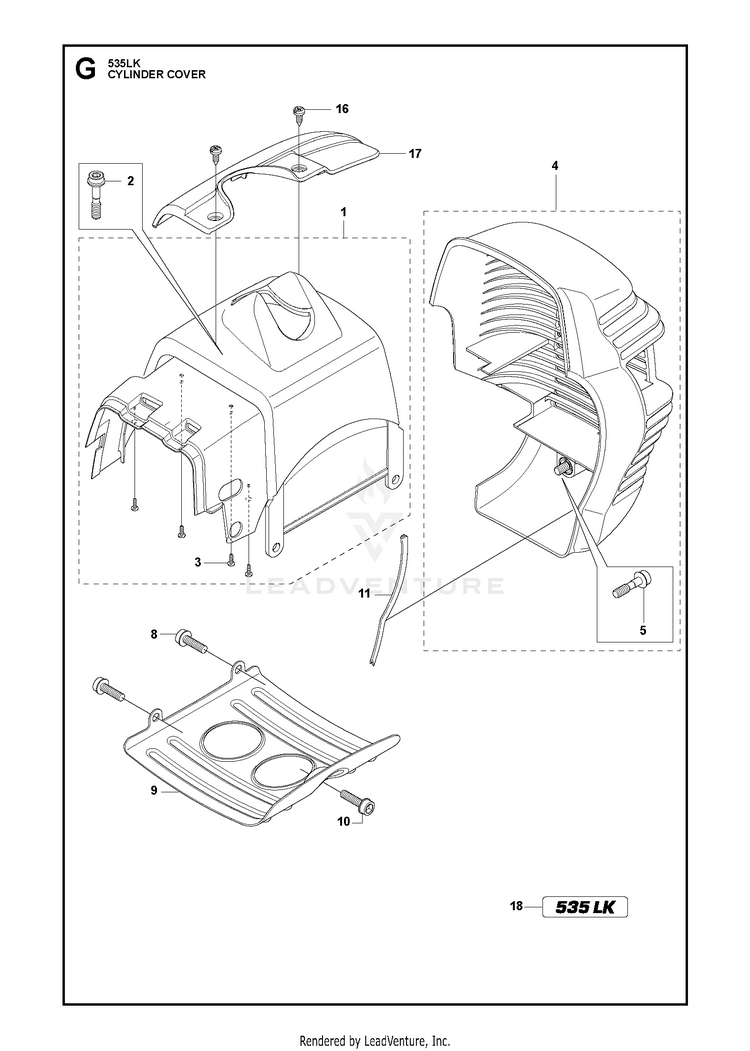

CYLINDER COVER

...
...
11
BAR HUS-544029801
...
8
SCREW HUS-503217516
...
10
SCREW HUS-503217516
...
17
ARM PROTECTION HUS-502433901
...
2
SCREW IHSCFMO Captive screws HUS-573994304
...
5
SCREW IHSCFMO Captive screws HUS-574477003
...
16
SCREW CCRPANT ST4.2X9.5 DS HUS-503213502
...
18
NEEDS DESCRIPTION HUS-576998623
...
1
CYLINDER COVER Spare part incl. Screws Pos. 2 HUS-544160103
...
3
SCREW HUS-503212910
...
4
HEAT PROTECTOR Spare part incl. Screws Pos. 5 HUS-537425102
...
9
PLATE HUS-537357201
